BASEUS UL12V 24W AC Adapter 12V 2A 5 plugs 100-240V

Universal 12V AC Adapter with Five Connectors

The Baseus UL12V delivers up to 24W of DC power at 12V with a maximum current of 2.0A. It accepts a global input range of 100-240V AC at 50/60Hz, making it suitable for use in many regions. The unit comes with five interchangeable DC plugs to fit a variety of devices such as routers, LED strips, CCTV cameras and speakers. It is built with an ABS and PC case and a pure copper power cord measuring 150cm in length.

Output Limits and Connector Sizing

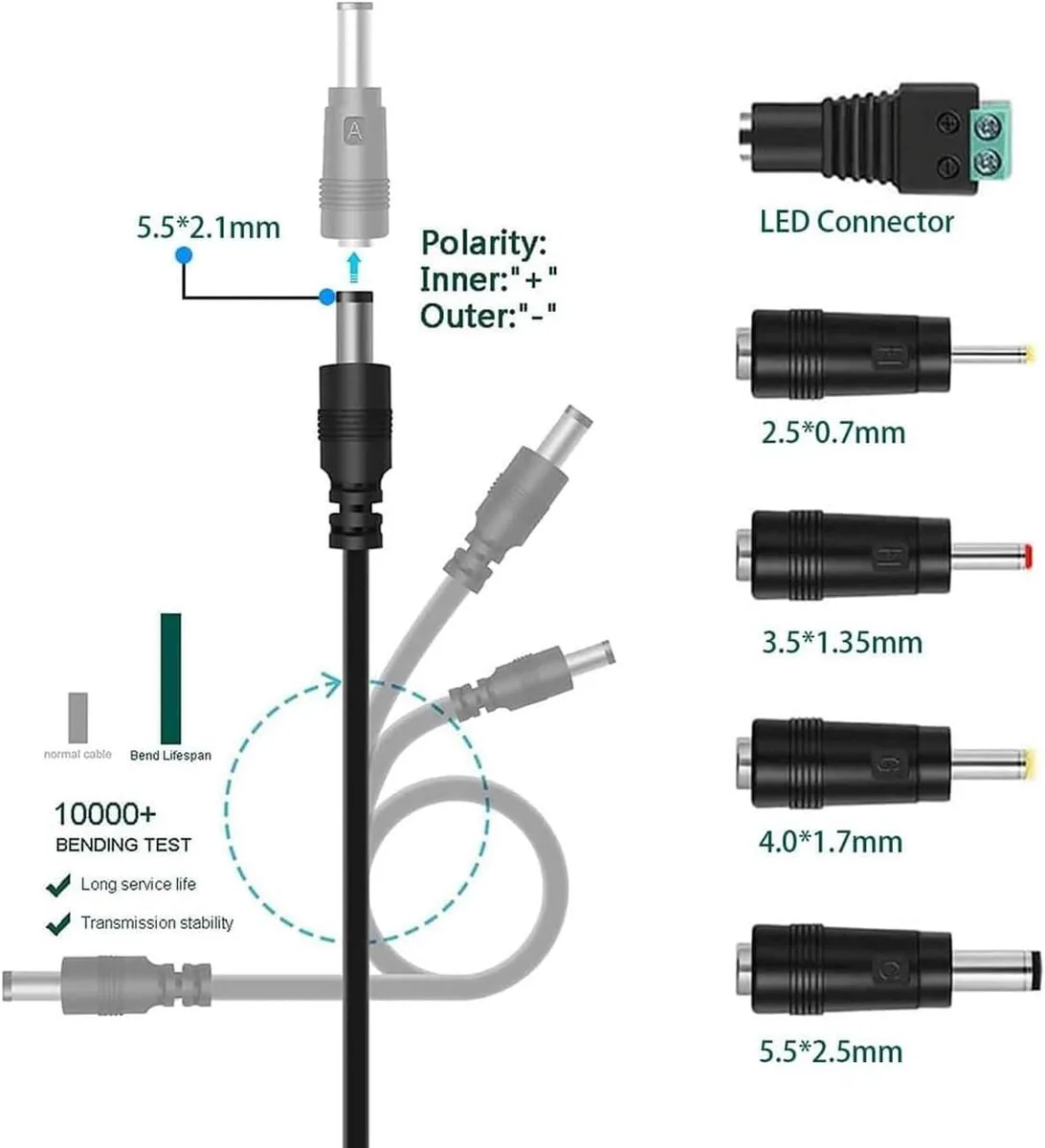

The adapter regulates its output current automatically to match the connected device up to the 2.0A ceiling, supporting equipment rated from 0.1A to 2.0A. The included connectors cover 5.5mm by 2.5mm, 2.5mm by 0.7mm, 3.5mm by 1.35mm, 4.0mm by 1.7mm and a dedicated LED strip connector. The main barrel jack uses a 5.5mm outer diameter with a 2.1mm inner diameter and centre-positive polarity. No other connector sizes or polarities are provided.

Pre-Purchase Checks for Your Device

Verify that your equipment requires exactly 12V DC input and draws no more than 2.0A. Confirm the polarity is centre-positive and match the required plug to one of the five supplied tip dimensions. Ensure the 150cm cable length reaches your intended installation point. The adapter carries ETL, CE, FCC and RoHS certifications but is not designed for devices needing a different voltage, higher current or alternative connector types.
