Black rectangular AC adapter with 5.5 by 2.5 mm barrel plug

BASEUS

BASEUS 24V 72W AC Adapter 5.5x2.5mm Plug

SKU CH-A92C-W5S63

Converts 100–240 V AC to 24 V DC at up to 72 W with a 5.5 × 2.5 mm barrel plug for LED strips, CCTV, monitors and other 24 V devices

  • TypeAC Adapters
  • Delivers up to 72W for demanding 24V devices
  • Accepts 100V to 240V AC for worldwide use
  • 5 mm by 2.5 mm plug fits many monitors and cameras
  • Built-in over-voltage, over-current, over-temperature and short-circuit protection
  • FCC, CE and RoHS certified for safety compliance

Power rating and plug type

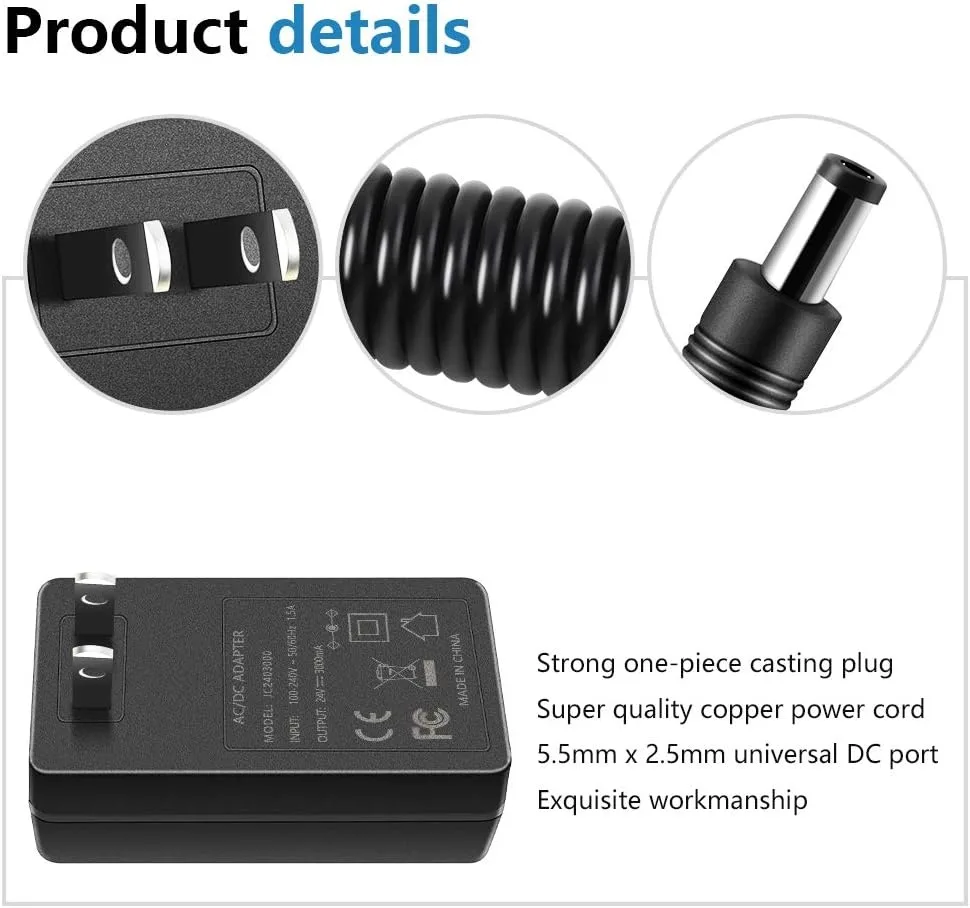

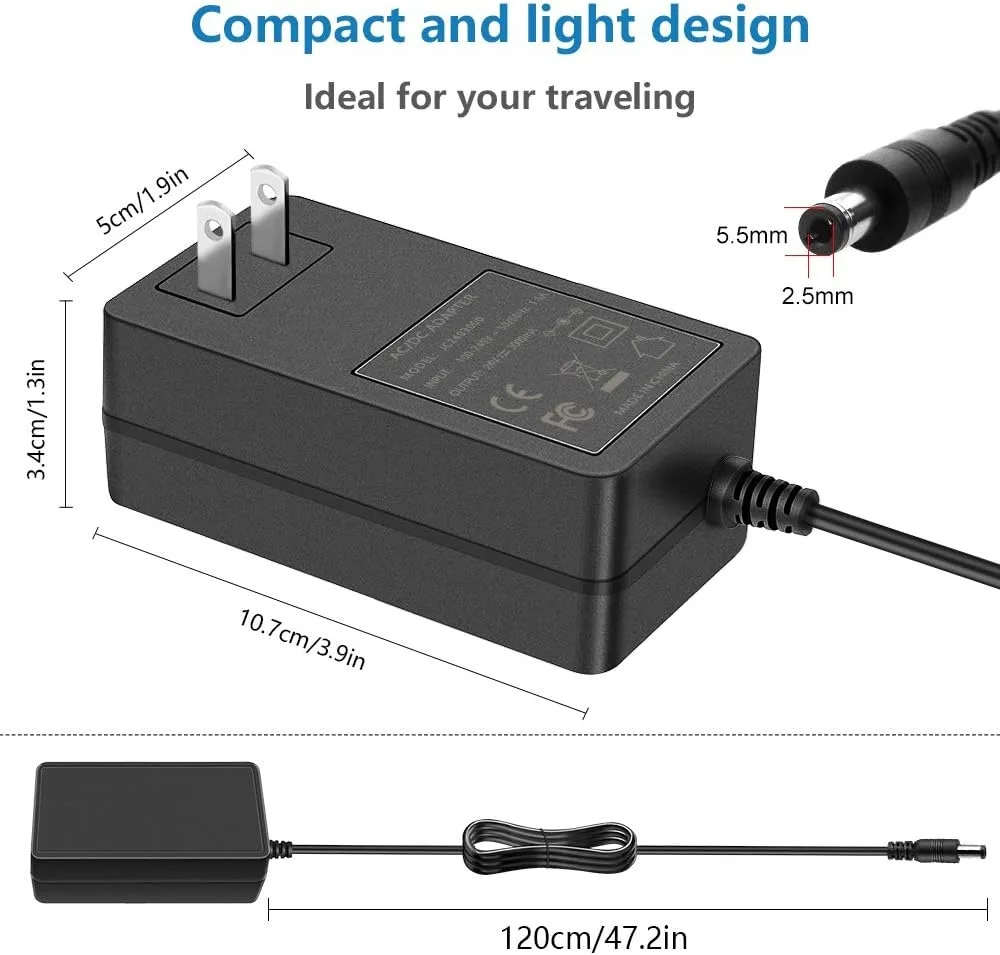

This BASEUS adapter delivers 24 V DC at up to 3 A for a maximum of 72 W. It accepts a universal AC input of 100 V to 240 V at 50 Hz or 60 Hz. The output plug measures 5.5 mm by 2.5 mm with centre-positive polarity. A screw-terminal female DC connector is included for custom wiring.

Compatibility checks

Verify that your device requires exactly 24 V DC and draws no more than 3 A. Confirm the power port matches the 5.5 mm by 2.5 mm centre-positive barrel. Ensure the equipment is not a battery charger, as this unit is an AC-to-DC supply only. Check that the load stays under 72 W to avoid triggering the overload protection.

Thermals, noise and power

The adapter runs silently with no fan and maintains a low casing temperature during normal operation. Built-in safeguards include over-voltage, over-current, over-temperature and short-circuit cut-off. A fire-retardant shell adds further safety. The unit is certified to FCC, CE and RoHS standards.

Highlights

  • Delivers up to 72W for demanding 24V devices
  • Accepts 100V to 240V AC for worldwide use
  • 5 mm by 2.5 mm plug fits many monitors and cameras
  • Built-in over-voltage, over-current, over-temperature and short-circuit protection
  • FCC, CE and RoHS certified for safety compliance

Specifications

TypeAC Adapters

Questions about this item

Does the package include anything besides the 24V 72W adapter itself?

The box contains the AC to DC adapter with a 5.5x2.5mm plug and a screw-terminal female DC connector for wiring without soldering.

How do I decide between the 2.7A, 2.5A and 2A current ratings shown in the title?

The unit delivers up to 3A; it automatically supplies whatever your device draws up to that limit, so choose the model that matches your device's voltage and connector.

What does the 72W headline figure mean when I connect a CCTV camera or LED strip?

It is the maximum continuous output power; your 24V equipment will draw only the watts it needs up to 72W, and built-in protections shut the adapter down if that limit is exceeded.
