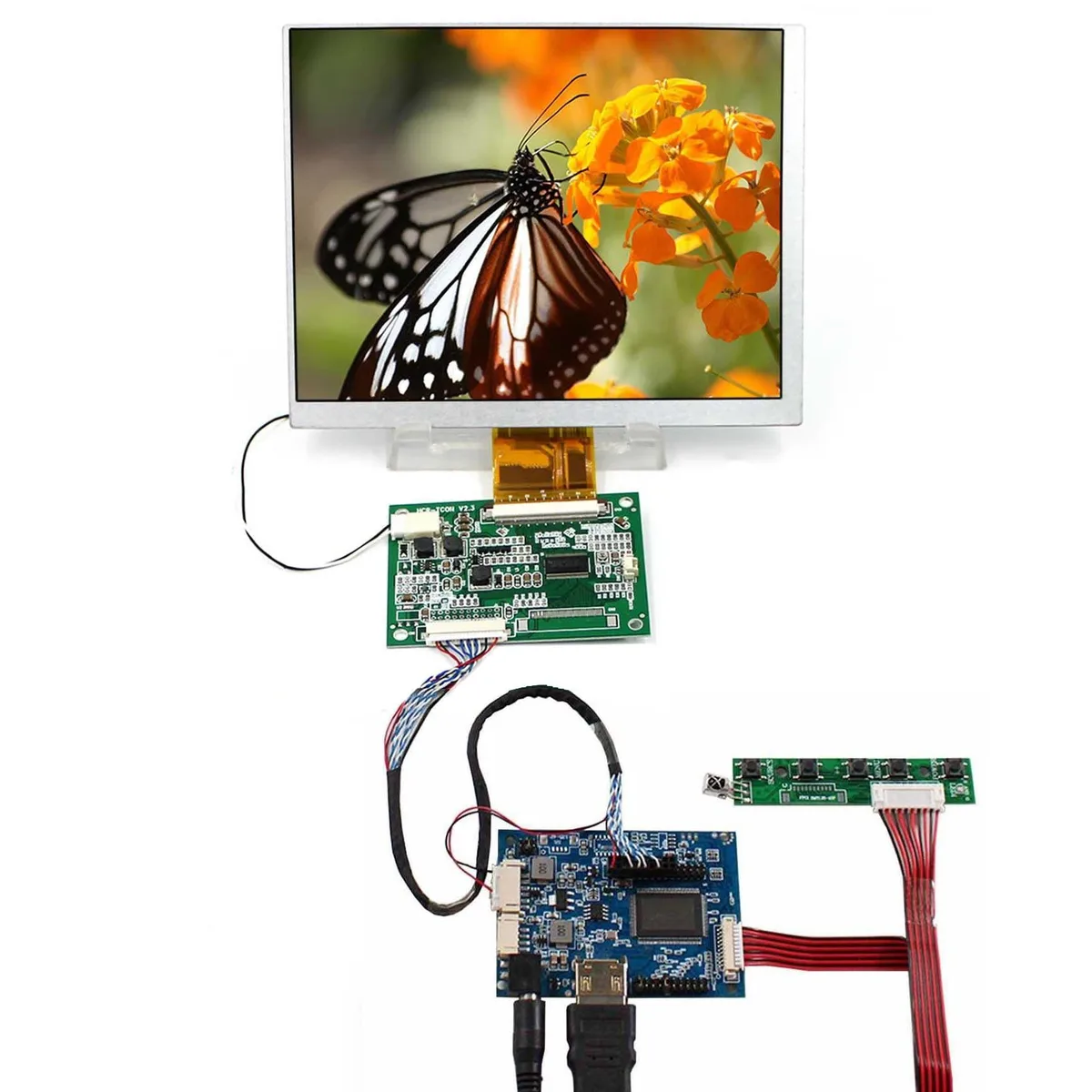

7-inch 4:3 LCD panel with controller board and keyboard cable

Barrow Mods

Barrow Mods 7" 800×600 4:3 LCD Kit with Controller Board

SKU CH-6SBM-8A1AQ

A 7-inch 4:3 TFT panel with 800×600 resolution, 250 cd/m² brightness and 60-pin TTL interface, bundled with an LVDS controller board, keyboard and cables for secondary display use

  • 7-inch 800×600 4:3 panel gives a compact secondary display
  • 250 cd/m² brightness and 500:1 contrast deliver clear visuals
  • 70°/70°/50°/70° viewing angles keep colours consistent off-centre
  • 12 V DC 2 A input via 5.5×2.1 mm jack powers the kit
  • OSD menu in English, French, German, Spanish, Italian and more eases setup

7-inch 4:3 LCD Kit

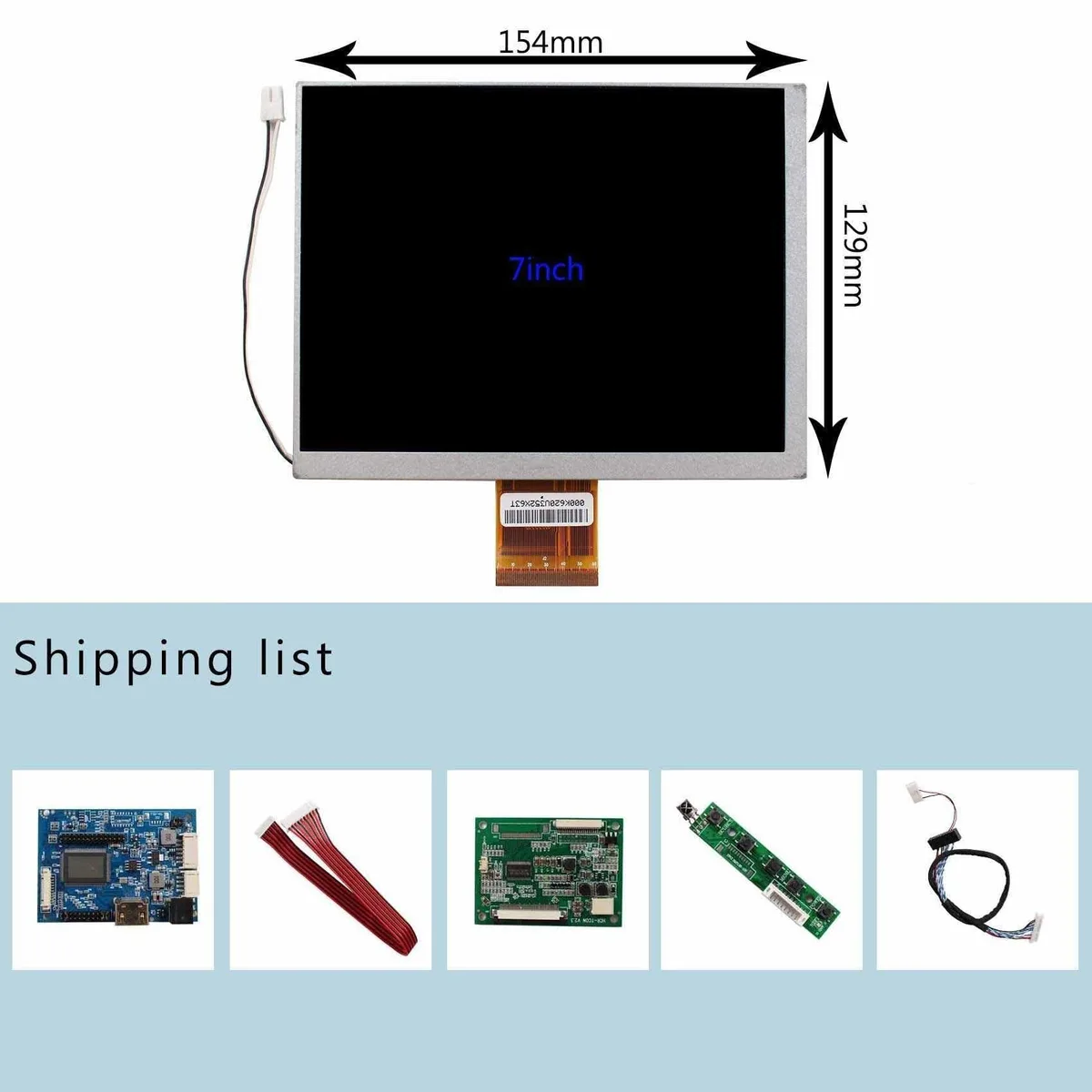

This kit combines a 7-inch 800×600 TFT panel with a dedicated controller board. The display offers a 4:3 aspect ratio, 250 cd/m² brightness and a 500:1 contrast ratio. A TTL interface with a 60-pin connector links the screen to the board. The package includes the panel, controller, LVDS-TTL converter cable and a small keyboard for OSD control.

Makers adding a compact secondary display

The 141.6×106.2 mm active area suits Raspberry Pi projects, portable PC builds or industrial equipment needing a small 4:3 monitor. The board accepts 12 V DC at 2 A via a 5.5×2.1 mm jack, so a separate power adapter must be sourced. Buyers who need a ready-to-use HDMI monitor with integrated power supply should look at a different product.

60-pin TTL interface

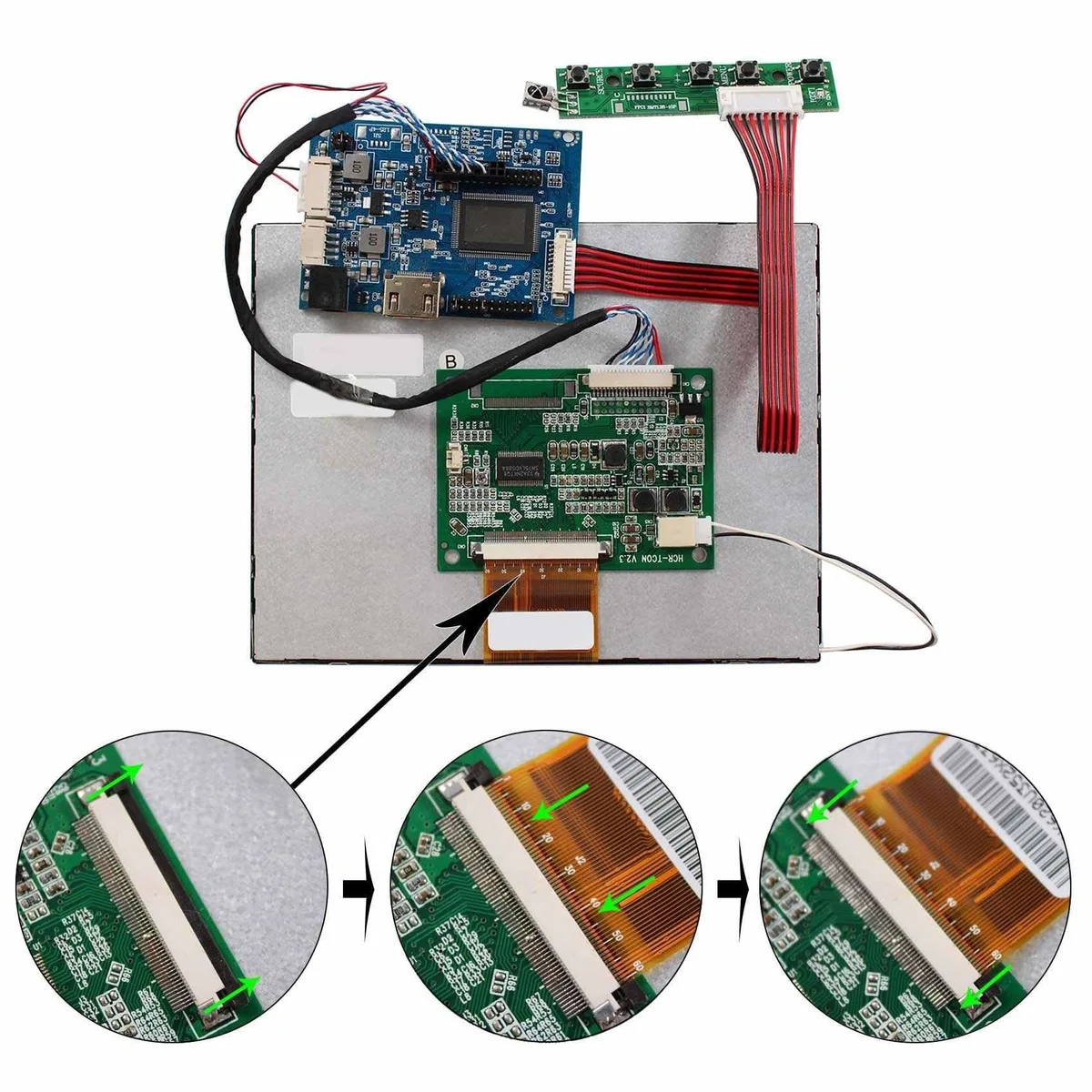

The panel connects through a single-channel 6/8-bit TTL interface on a 60-pin FPC. The controller board translates LVDS signals to this TTL link and provides OSD menus for brightness, contrast and language selection. Verify that your source device can drive a 60-pin TTL panel or provides an LVDS output compatible with the included converter board.

Highlights

  • 7-inch 800×600 4:3 panel gives a compact secondary display
  • 250 cd/m² brightness and 500:1 contrast deliver clear visuals
  • 70°/70°/50°/70° viewing angles keep colours consistent off-centre
  • 12 V DC 2 A input via 5.5×2.1 mm jack powers the kit
  • OSD menu in English, French, German, Spanish, Italian and more eases setup

Specifications

No published specifications for this item yet.

Questions about this item

Will the WLED backlight on the CLAA070MA0ACW panel need replacement during the monitor's lifetime?

The WLED backlight is integrated into the 7 inch panel and is not user-replaceable; if brightness degrades below the 250 cd/m² typical rating the entire LCD screen would need to be swapped.

What is the first limit reached when driving the 800×600 TTL panel continuously at 250 nits?

The 12 V DC 2 A power input (5.5 × 2.1 mm jack) sets the sustained limit; the board enters standby when no video signal is present, but continuous full-brightness operation stays within the 2 A budget.

How much heat and noise does the controller board produce when running all day at 12 V?

The 74 × 53 × 12 mm board has no fan and draws a maximum of 2 A at 12 V, so it generates only modest warmth and runs completely silently.
