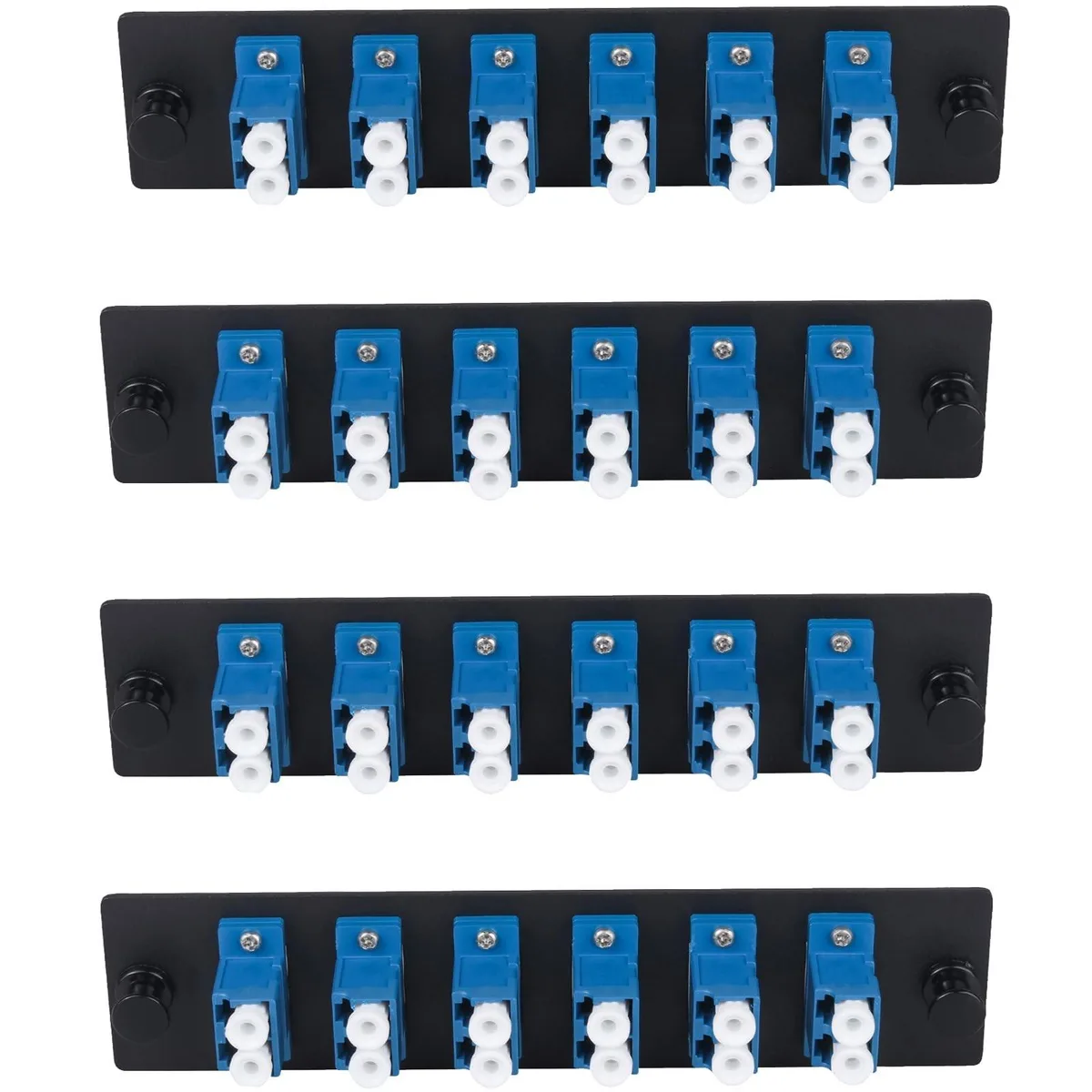

Black metal fiber patch panel with twelve LC duplex ports in a rectangular chassis

Barrow Mods

Barrow Mods 12 Fibers LC Duplex Singlemode Patch Panel 2 in 1 accessory

SKU CH-9C75-J5094

A 12-fibre LC duplex singlemode patch panel with six UPC couplers and 0.2 dB insertion loss

  • Low insertion loss of .2 dB per connection
  • 12 singlemode fibers in a compact 130 mm panel
  • Six LC/LC duplex UPC adapters included for quick installation
  • Repeatability rated to 1000 mating cycles
  • Fits 5.12 by 1.24 by 1.36 inch rack spaces

12-Fiber LC Duplex Patch Panel

This panel provides twelve singlemode LC connections in a single 2-in-1 accessory. It suits technicians who need a compact termination point for duplex fiber runs in networking or telecom projects. The unit arrives new and ready for rack or wall mounting.

Build and Connectors

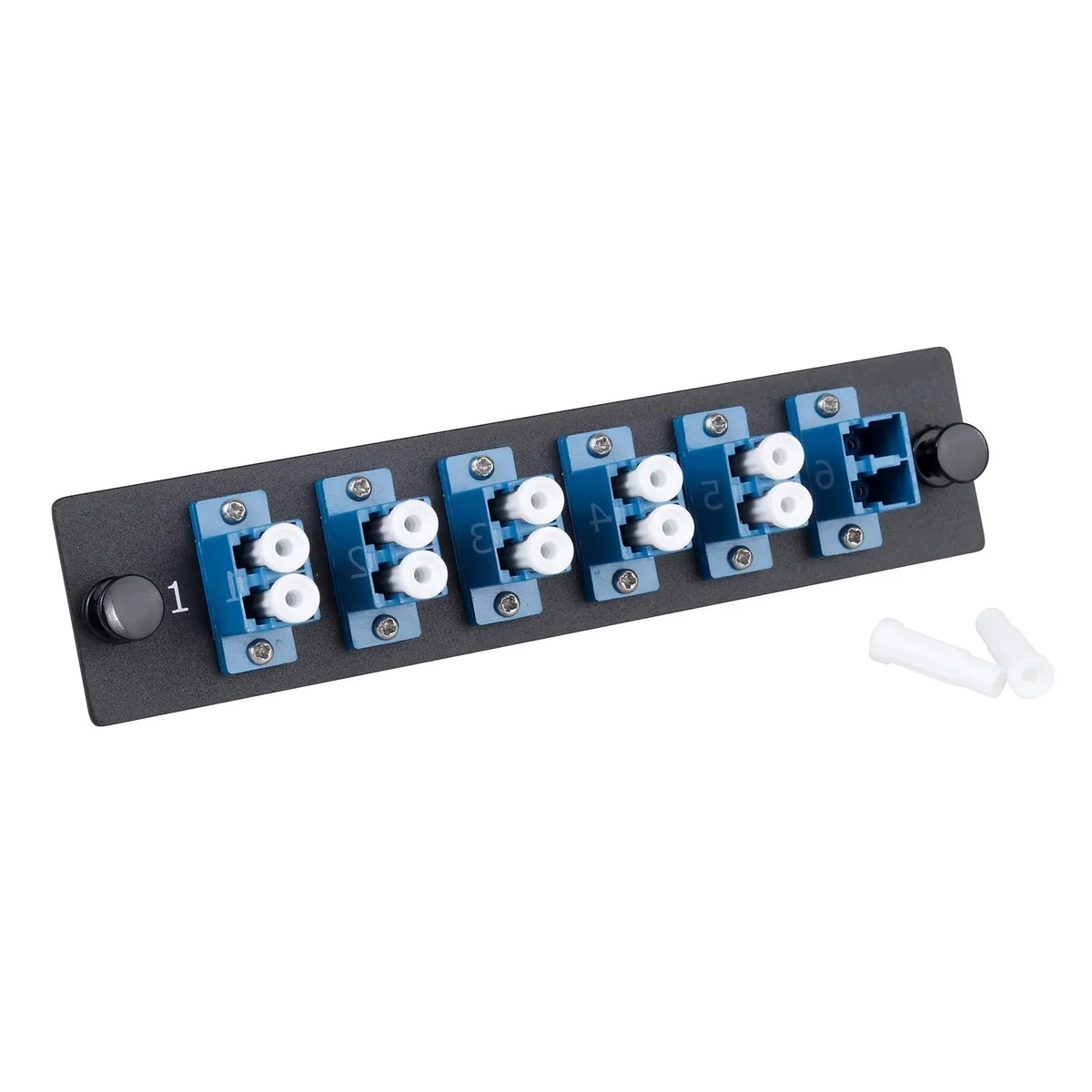

The enclosure measures 5.12Inch by 1.24Inch by 1.36Inch, equivalent to 130mm by 31.6mm by 34.5mm. Six LC/LC UPC duplex adapters are pre-installed, giving twelve fiber ports that accept standard duplex patch cords. The compact footprint leaves space in dense patching fields.

Practical Limits

Insertion loss is rated at .2dB with interchangeability also at .2dB, so budget link loss accordingly. The adapters are specified for 1000 mating cycles; plan maintenance windows if daily re-patching is expected. Singlemode performance assumes clean, angled-polish connectors and proper cable management.

Highlights

  • Low insertion loss of .2 dB per connection
  • 12 singlemode fibers in a compact 130 mm panel
  • Six LC/LC duplex UPC adapters included for quick installation
  • Repeatability rated to 1000 mating cycles
  • Fits 5.12 by 1.24 by 1.36 inch rack spaces

Specifications

No published specifications for this item yet.

Questions about this item

What insertion loss does the LC duplex singlemode panel cap at?

The panel specifies an insertion loss of 0.2 dB per connection.

What are the exact dimensions for rack or bracket mounting?

The panel measures 130 mm wide, 31.6 mm deep and 34.5 mm high (5.12 in x 1.24 in x 1.36 in).

How is the patch panel installed, and which step is often missed?

Mount the panel, then snap each of the six LC/LC UPC duplex adapters into the cut-outs — the step people skip is fully seating every adapter until it clicks.
