Barco

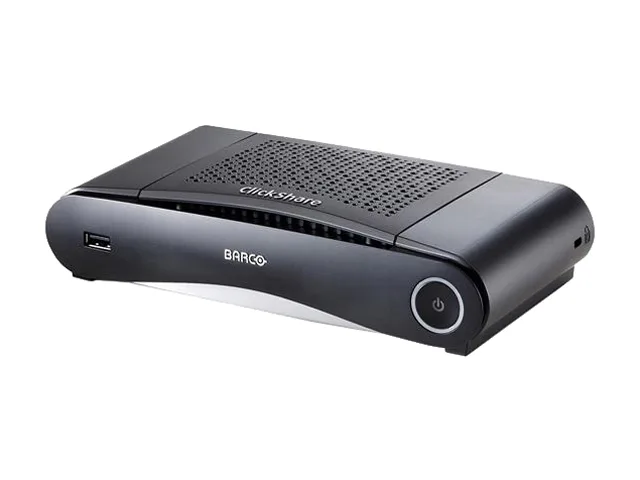

Barco R9861510NA-KIT digital signage media player with ClickShare button
Wireless presentation system connects one user to any HDMI display with a ClickShare button and 12 ft cable
- Network Interface1 x Ethernet LAN
- USB Port1 x (back) + 1 x (front) USB
- Analog AduioAudio analog line out on mini jack socket (3.5mm)
- Power ConsumptionOperation: 6W (typical) / 18W (max) Standby: 2.6W (ECO stand
- FeatureOperating system Windows 7/8/8.1/10 32 & 64 bit macOS 10.10/
- Dimensions8.10" x 4.50" x 1.80" (Min.)
- Present wirelessly from any HDMI display with included ClickShare button
- Connect up to 8 devices simultaneously while showing 1 source on screen
- Silent fanless operation at 6W typical power draw
- Full HD 1920x1080 output at up to 30 fps via HDMI
- Compact 8.10" x 4.50" x 1.80" design weighs 1.32 lbs
Barco ClickShare Wireless Presentation System
The Barco R9861510NA-KIT is a digital signage media player designed for meeting rooms and huddle spaces. It enables wireless content sharing from Windows, macOS, Android and iOS devices to any HDMI-enabled display. The kit includes one ClickShare button for instant one-click presenting. It supports a single user on screen at a time.
Fanless Operation with Low Power Draw
The unit operates without a fan, ensuring silent performance in quiet environments. Typical power consumption is 6W during operation, rising to a maximum of 18W under load. Standby modes draw 2.6W in ECO standby and 0.4W in Deep standby. This low thermal profile allows discreet placement behind displays or in confined spaces.
Sustained 1080p Streaming at 30 fps
Under continuous load the system maintains Full HD output at 1920x1080 resolution and up to 30 fps. It handles up to eight simultaneous device connections while streaming from a single active source. Wireless reach extends up to 100 feet using 802.11 a/g/n. Authentication uses WPA2-PSK in standalone mode for secure sessions.
Highlights
- Present wirelessly from any HDMI display with included ClickShare button
- Connect up to 8 devices simultaneously while showing 1 source on screen
- Silent fanless operation at 6W typical power draw
- Full HD 1920x1080 output at up to 30 fps via HDMI
- Compact 8.10" x 4.50" x 1.80" design weighs 1.32 lbs
Specifications
| Brand | Barco |
|---|---|
| Model | R9861510NA-KIT |
| Network Interface | 1 x Ethernet LAN |
| USB Port | 1 x (back) + 1 x (front) USB |
| Analog Aduio | Audio analog line out on mini jack socket (3.5mm) |
| Power Consumption | Operation: 6W (typical) / 18W (max) Standby: 2.6W (ECO standby) / 0.4W (Deep standby) |
| Feature | Operating system Windows 7/8/8.1/10 32 & 64 bit macOS 10.10/10.11/10.12/10.13 (High Sierra) Android v5 & v6 & v7 & v8 & 8.1 (ClickShare app) iOS 8, 9 & 10 & 11 (ClickShare app) Video outputs: 1 x HDMI Frame rate: Up to 30 fps Output resolution: 1920x1080 Noise Level: Fanless Number of sources simultaneous on screen: 1 Number of simultaneous connections: 8 Audio: Via HDMI, analog via Audio Jack 3.5mm iPad, iPhone and Android compatibility Sharing of documents, browser, camera for both Android and iOS devices ClickShare app Extended desktop: Available (depending on your operating syste |
| Dimensions | 8.10" x 4.50" x 1.80" (Min.) |
| Weight | 1.32 lbs. |
| Shipping weight | 1.51 kg |
| Package size | 257 × 165 × 97 mm |
Questions about this item
How do I install the ClickShare button and what step do people often miss?
Connect the base unit to the display with the 12 ft. HDMI cable and the 3.5 mm audio jack, then plug the ClickShare button into a USB port on your laptop; the step people miss is launching the ClickShare application that starts automatically from the button before pressing its LED to share.
What maintenance or replacement will the ClickShare button need later?
The button has no battery or moving parts, so no scheduled replacement is required; keep the USB connector clean and update the base unit firmware when new versions are released to maintain compatibility with Windows, macOS, Android and iOS.
What limit appears first during sustained use of the media player?
The base unit supports only one user on screen at a time and a maximum output resolution of 1920x1080 at 30 fps, so extended sessions are constrained by that single-stream Full HD ceiling rather than thermal throttling, as the unit is fanless and draws 6 W typical.
