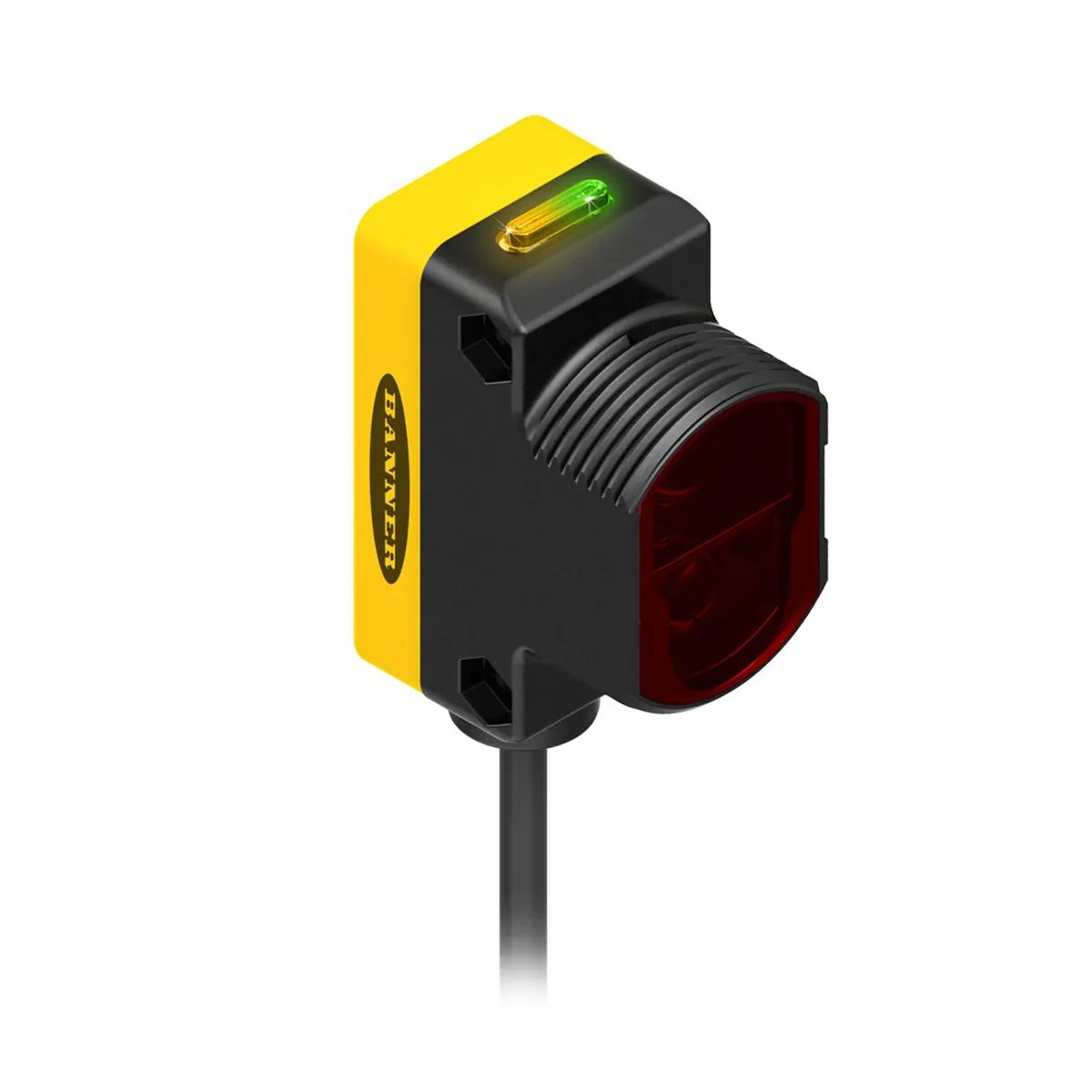

Rectangular red thermoplastic sensor with M30 mount and 2 m cable

Banner

Banner QS30EDV Diffuse Sensor 1400 mm 10-30 V DC 2 m Cable

SKU CH-4RQS-93YNC MPN QS30EDV

Detects objects up to 1400 mm with a visible red LED, operates on 10-30 V DC, and includes a 2 m cable with IP67 protection

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Long-range detection up to 1400 mm with diffuse-mode visible red beam
  • Reliable operation from 10-30 V dc supply with bipolar NPN/PNP output
  • Fast response time of 0.3-1.8 ms suits high-speed applications
  • Durable IP67 and NEMA 6 rated housing withstands harsh environments
  • Remote teach function simplifies setup and adjustment without physical access

Long-range diffuse sensor for industrial detection

The Banner QS30EDV is a rectangular diffuse-mode proximity sensor with a visible red LED beam that reaches 1400 mm in normal mode and 1100 mm in high-speed mode. It operates on 10-30 V dc and provides bipolar NPN/PNP discrete outputs through a 2 m cable. The thermoplastic housing carries an M30 mount and achieves IP67 and NEMA 6 protection for harsh environments.

Check supply voltage and mounting before installing

Verify that your control system can accept a 10-30 V dc supply and bipolar NPN/PNP switching before wiring the five-conductor cable. Confirm the M30 barrel fits the available mounting hole and that the 2 m cable length reaches the termination point without splices. Ensure the operating temperature range of -10 °C to 55 °C and 95 % humidity at 55 °C match the installation conditions.

Stable response with remote teach under continuous

The sensor powers up in 250 ms and delivers output response times between 0.3 ms and 1.8 ms with repeatability of 100 µs to 150 µs across the full temperature span. Remote teach allows configuration without opening the enclosure, while the IP67-rated acrylic lens and thermoplastic body maintain consistent sensing through wash-down and vibration cycles. Bargraph indicators give immediate visual feedback during extended runs.

Highlights

  • Long-range detection up to 1400 mm with diffuse-mode visible red beam
  • Reliable operation from 10-30 V dc supply with bipolar NPN/PNP output
  • Fast response time of 0.3-1.8 ms suits high-speed applications
  • Durable IP67 and NEMA 6 rated housing withstands harsh environments
  • Remote teach function simplifies setup and adjustment without physical access

Specifications

BrandBANNER
ModelQS30EDV
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Does the QS30EDV come with mounting brackets or do I need to buy them separately?

The sensor has an M30 threaded barrel for direct mounting; brackets are not included in the single-unit box.

Should I choose the 1 100 mm high-speed range or the 1 400 mm normal range for my application?

Use the 1 400 mm normal mode for maximum distance; select 1 100 mm high-speed mode when a 0.3 ms response time is required.

How does the 1 400 mm sensing distance perform with a 10–30 V DC supply on a production line?

At 10–30 V DC the sensor detects targets up to 1 400 mm away with a 0.3–1.8 ms response and IP67 sealing for wash-down environments.
