Red rectangular sensor housing with M12 connector and adjustment screw

Banner

Banner Q60BB6AF2000 2 m range adjustable-field sensor electrician tool

SKU CH-ZKB5-V50R1 MPN Q60BB6AF2000

Adjustable-field infrared proximity sensor detects objects at 200–2000 mm with bipolar NPN and PNP outputs, M12 quick-disconnect, IP67 and NEMA 6 sealing, and screw-adjustable background suppression

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Detects objects up to 2 m away with adjustable background suppression
  • Operates reliably from 10 to 30 V dc supply
  • Bipolar NPN and PNP outputs suit diverse control circuits
  • IP67 and NEMA 6 ratings protect against dust and water ingress
  • M12 Euro-style quick-disconnect enables fast, secure installation

Adjustable-field infrared sensor

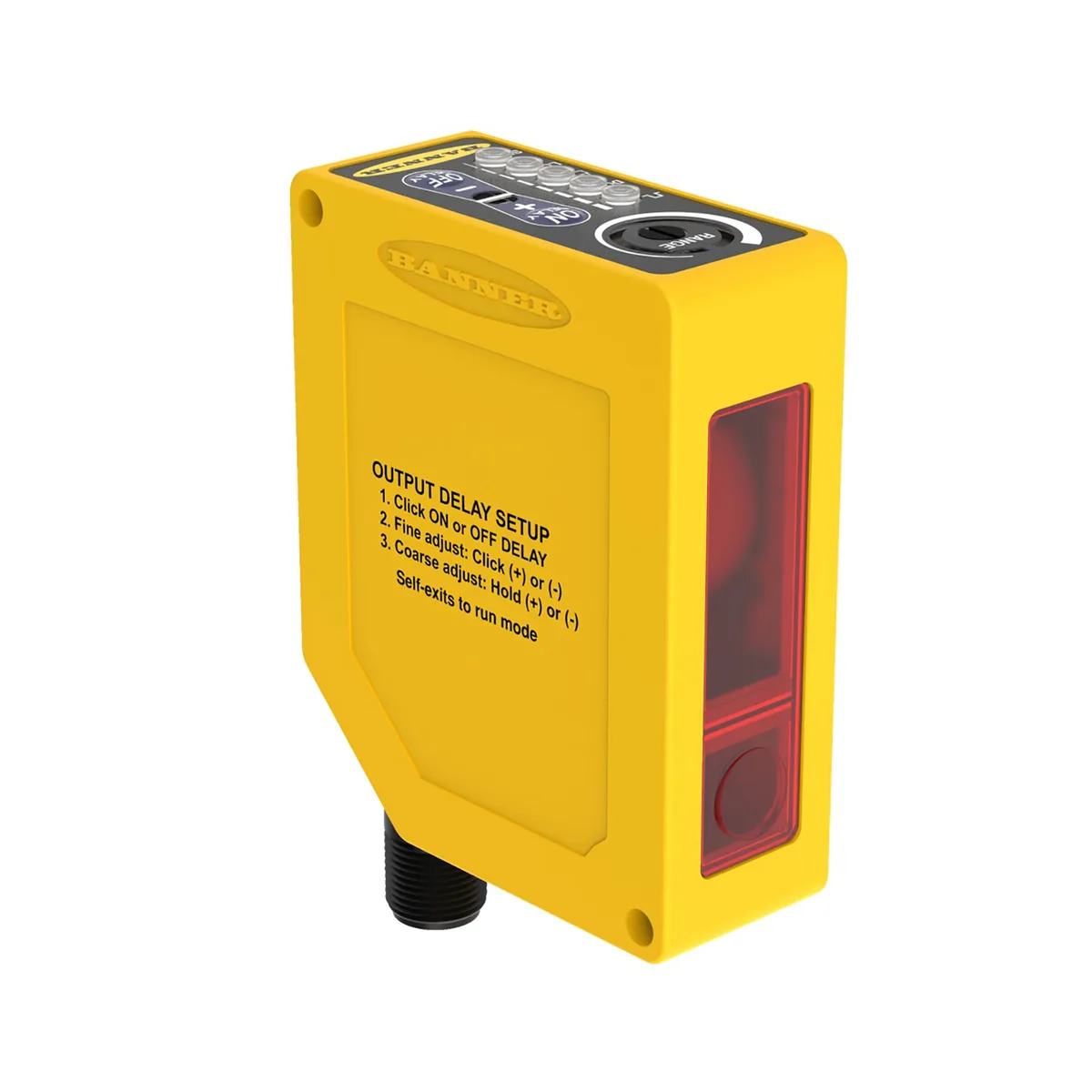

The Banner Q60BB6AF2000 is a background-suppression proximity sensor with a 200 to 2000 mm sensing range. It operates on 10 to 30 V dc and provides both NPN and PNP outputs. The rectangular thermoplastic housing carries an IP67 and NEMA 6 rating for harsh environments.

Installation and common issues

Connection uses a 5-pin M12 Euro-style quick-disconnect for fast wiring. A 150 ms power-up delay means the output will not stabilise instantly after voltage is applied. The sensing field is set by a screw adjustment; misalignment or reflective backgrounds can cause false triggers if the suppression point is not tuned correctly.

Pre-order checklist

Verify your control system accepts 10 to 30 V dc discrete bipolar signals. Confirm the mounting area stays within -20 to 55 °C and below 90 % relative humidity at 50 °C. Ensure a compatible 5-pin M12 cable is available and that the 2 ms response time meets the application speed requirement.

Highlights

  • Detects objects up to 2 m away with adjustable background suppression
  • Operates reliably from 10 to 30 V dc supply
  • Bipolar NPN and PNP outputs suit diverse control circuits
  • IP67 and NEMA 6 ratings protect against dust and water ingress
  • M12 Euro-style quick-disconnect enables fast, secure installation

Specifications

BrandBANNER
ModelQ60BB6AF2000
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How do I verify the Q60BB6AF2000 is working correctly after wiring it to a 10-30 V dc supply?

Apply power and confirm the indicator LEDs illuminate; the output response time is 2 ms and repeatability is 500 µs, so a target at the set distance should trigger both NPN and PNP outputs within those limits.

What does the box contain for the Q60BB6AF2000 and what must I source separately?

The box includes one sensor with integral M12 Euro quick-disconnect; you must supply a compatible 5-pin M12 cable and a 10-30 V dc power source.

Which sensing distance should I select on the Q60BB6AF2000 for my application?

The sensor adjusts from 200 mm to 2000 mm via the screw adjustment; choose the shortest distance that reliably detects your target to maximise background suppression.
