Banner Q4XTBCOD300-Q8 Rugged Laser Distance Sensor 300 mm Range
A rugged laser distance sensor with 300 mm range, Class 1 visible red laser, and bipolar NPN/PNP outputs for 10-30 V dc supply
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- Rugged stainless steel housing withstands 100 G mechanical shock per MIL-STD-202G Method 213B
- Visible red Class 1 laser at 655 nm detects clear objects from 25 mm to 300 mm
- Bipolar NPN and PNP discrete outputs rated 100 mA with saturation below 1.0 V and 1.5 V
- Operates on 10–30 V dc supply with 750 ms power-up delay for stable start-up
- Push-button and remote teach adjustments simplify sensor configuration without a PC
Rugged Laser Sensor for Clear Objects

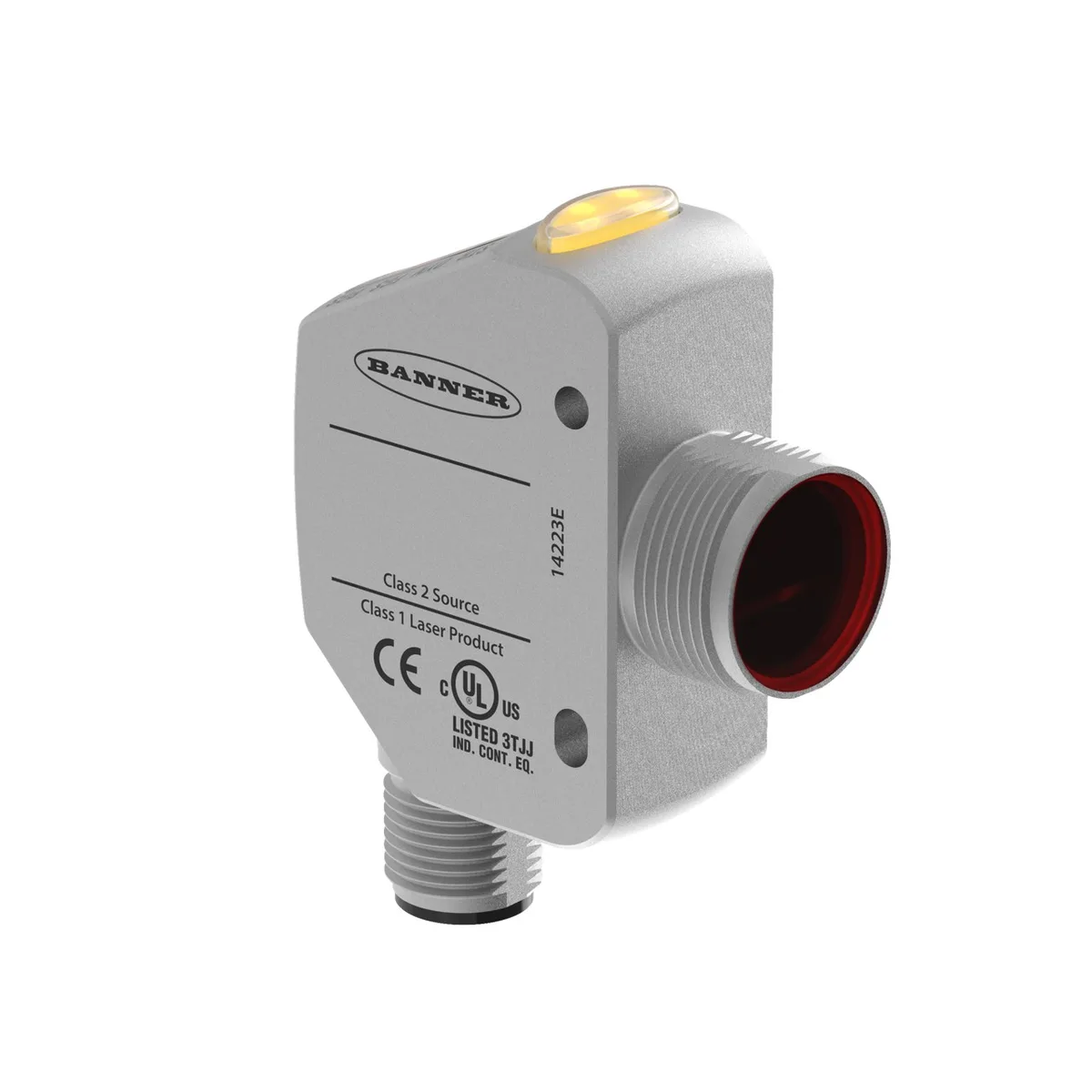

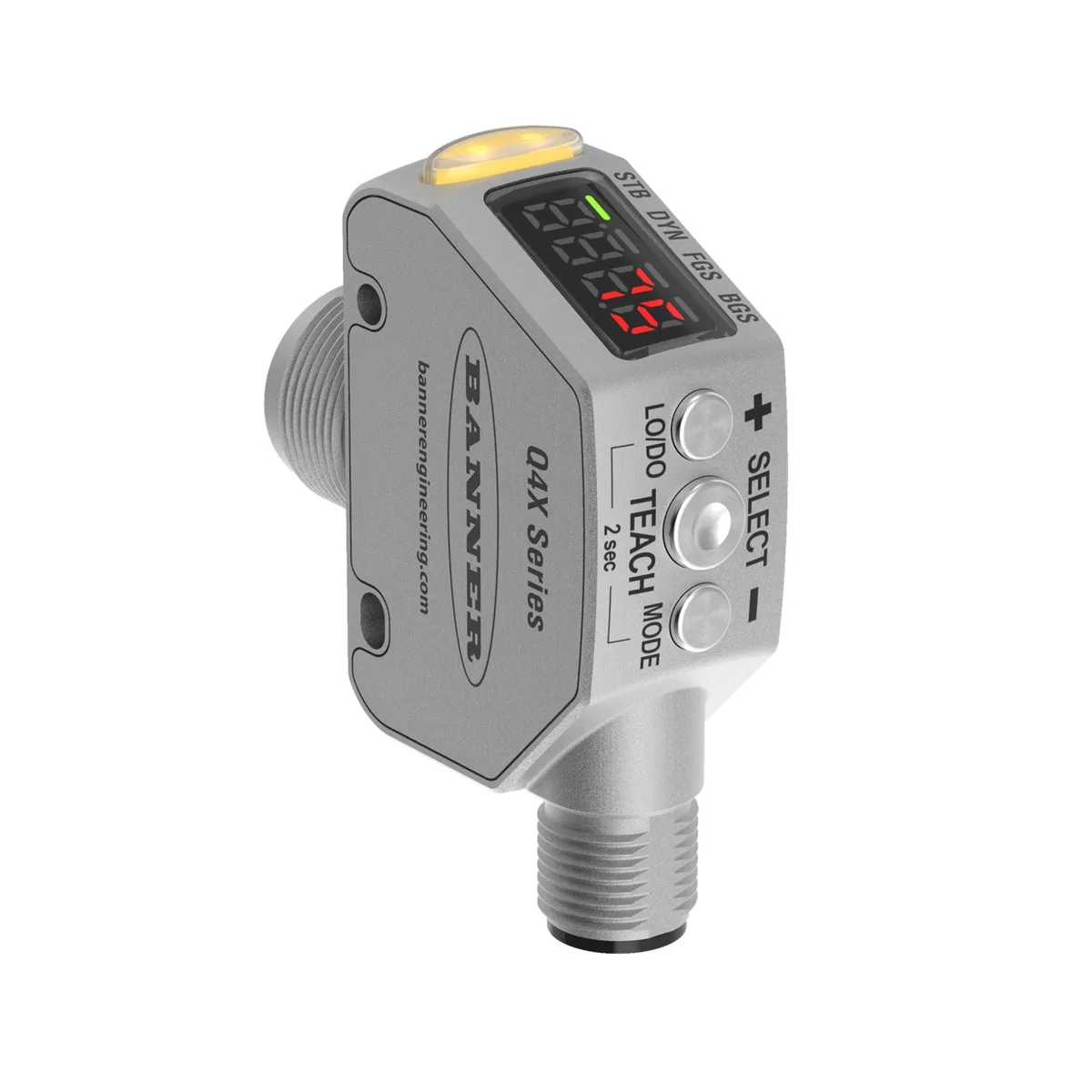

The Banner Q4XTBCOD300-Q8 is a Class 1 visible red laser distance sensor built in a stainless-steel rectangular housing with an M18 mounting thread. It targets industrial automation engineers who need reliable detection of transparent or low-contrast materials at close range. The sensor operates on 10-30 V dc supply voltage and provides both NPN and PNP discrete outputs rated at 100 mA maximum. Vibration and shock ratings meet MIL-STD-202G requirements for harsh environments.
Build Integration Requirements
The sensor connects via an integral Euro-style M12 5-pin quick-disconnect, so a compatible cordset or field-wireable connector is required to complete the wiring. Background and foreground suppression modes reduce false triggers from reflective backgrounds, freeing the programmer from complex filtering logic. A 750 ms power-up delay means the control system must allow this settling time before reading valid output states. The sensing window spans 25 mm to 300 mm, defining the clear zone the mounting geometry must provide.
Bundled Configuration Benefits
Push-button and remote teach adjustments let operators set switching thresholds without a PC software link, cutting commissioning time on the production floor. LED indicators give immediate visual confirmation of output status and alignment during setup. The bipolar output stage supplies both sinking and sourcing signals from a single device, reducing the number of sensor variants the maintenance stock must carry. Output protection guards against continuous overload and short-circuit conditions.
Highlights
- Rugged stainless steel housing withstands 100 G mechanical shock per MIL-STD-202G Method 213B
- Visible red Class 1 laser at 655 nm detects clear objects from 25 mm to 300 mm
- Bipolar NPN and PNP discrete outputs rated 100 mA with saturation below 1.0 V and 1.5 V
- Operates on 10–30 V dc supply with 750 ms power-up delay for stable start-up
- Push-button and remote teach adjustments simplify sensor configuration without a PC
Specifications
| Brand | BANNER |
|---|---|
| Model | Q4XTBCOD300-Q8 |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
What is the maximum sensing distance before the 300 mm range limit is reached?
The sensor detects objects up to 300 mm away with a minimum sensing distance of 25 mm.
How much heat or vibration can the stainless steel housing withstand during continuous operation?
It meets MIL-STD-202G Method 201A for vibration (10 to 60 Hz, 0.06" amplitude, 10G max) and Method 213B Condition I for 100G mechanical shock across 18 axes.
Which power supply and connector must already be in place for the 10-30 V dc input?
A 10-30 V dc source and a mating 5-pin Euro M12 quick-disconnect cable are required for the integral connector.
