Banjo RB150-125 Reducing Bushing Trap

Reducing Bushing for Schedule 80 Pipe

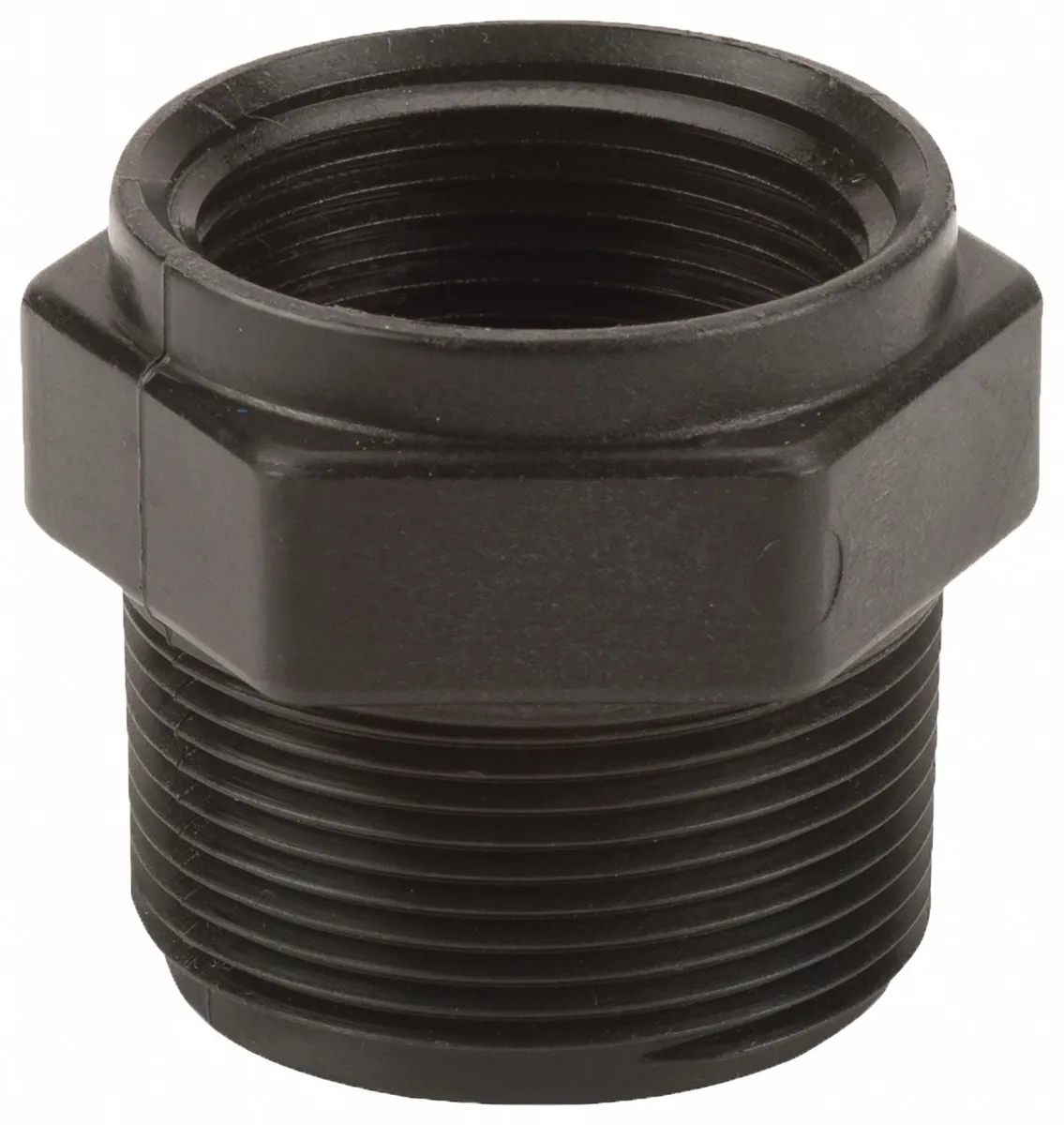

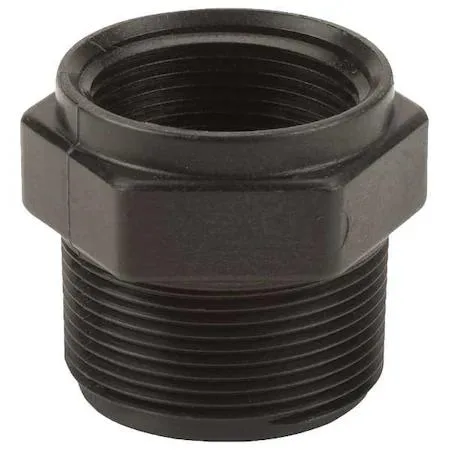

The Banjo RB150-125 is a polypropylene reducing bushing designed to join a 1-1/2 inch male NPT thread to a 1-1/4 inch female NPT thread. It is built for Schedule 80 piping systems and rated for a maximum pressure of 150 psi. The fitting operates across a temperature range of -20 degrees to 150 degrees F. Its black polypropylene construction resists corrosion in compatible fluid-handling applications.

Suited for NPT Thread Reduction in Plastic Systems

This bushing suits installers who need to step down pipe size within a Schedule 80 polypropylene network using standard NPT threads. It is not for systems that require a different thread standard, a higher pressure rating than 150 psi, or operation outside the stated temperature range. Buyers needing a different material, such as metal, or a different fitting configuration should look at other options.

MNPT x FNPT Connection Type Decides Fit

The single specification that determines compatibility is the MNPT x FNPT connection type combined with the 1-1/2 inch by 1-1/4 inch pipe size. The male and female National Pipe Thread ends must match the existing fittings exactly. If the piping uses a different thread form or size, this bushing will not create a seal.
