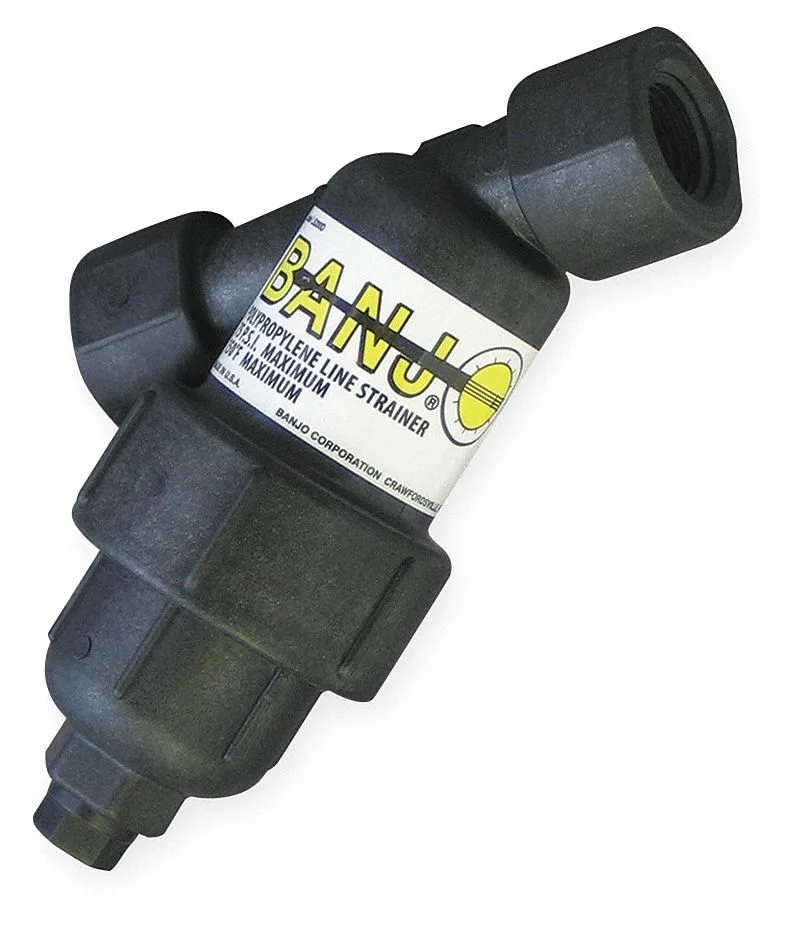

Banjo LS125-20 Y Strainer 1-1/4" FNPT Polypropylene 150 psi
Polypropylene Y strainer with 20 mesh stainless steel screen filters particulates at 150 psi working pressure
- TypeParticulate Removal
- Removes particles down to 841 micron with 20 mesh 304 stainless steel screen
- Handles 150 psi operating pressure and 150°F maximum temperature in service
- Polypropylene housing resists corrosion for long service life in water systems
- 1-1/4" FNPT connections install directly into standard NPT piping without adapters
- 1/2" blow-off port allows quick screen cleaning without removing the strainer body
Purpose & Fit
The Banjo LS125-20 is a polypropylene Y-strainer built for 1-1/4 inch FNPT piping and rated to 150 psi. It targets installers who need reliable particulate removal in irrigation, wash-down or light industrial lines where corrosion resistance matters.
Sustained Load Behaviour
The 20 mesh 304 stainless screen traps particles down to 841 micron without collapsing under continuous flow. Polypropylene housing withstands 150 degrees Fahrenheit and 168 psi at 100 degrees Fahrenheit, so pressure spikes during pump cycling stay within design limits.
Thermals Noise & Power
No moving parts means zero noise and no electrical draw. The 7-7/8 inch body with 1/2 inch blow-off port lets operators flush debris without disassembly, keeping pressure drop stable over long runs. Housing material handles the rated temperature range without softening or leaking.
Highlights
- Removes particles down to 841 micron with 20 mesh 304 stainless steel screen
- Handles 150 psi operating pressure and 150°F maximum temperature in service
- Polypropylene housing resists corrosion for long service life in water systems
- 1-1/4" FNPT connections install directly into standard NPT piping without adapters
- 1/2" blow-off port allows quick screen cleaning without removing the strainer body
Specifications
| Brand | Banjo |
|---|---|
| Type | Particulate Removal |
Questions about this item
How much heat can the polypropylene housing handle during continuous flow?
The housing is rated to 150 °F maximum temperature and 168 psi at 100 °F, so it stays within limits for typical cold-water lines running all day.
What fittings do I need to connect the 1-1/4" FNPT ports to my existing pipe?
You need 1-1/4" male NPT nipples or adapters on each side; the strainer has female NPT threads on both ports.
Will the 20 mesh stainless screen pass debris that could clog my older 1/2" valves downstream?
The 304 stainless screen has 841 micron openings, which stops particles large enough to jam most 1/2" valve seats.
