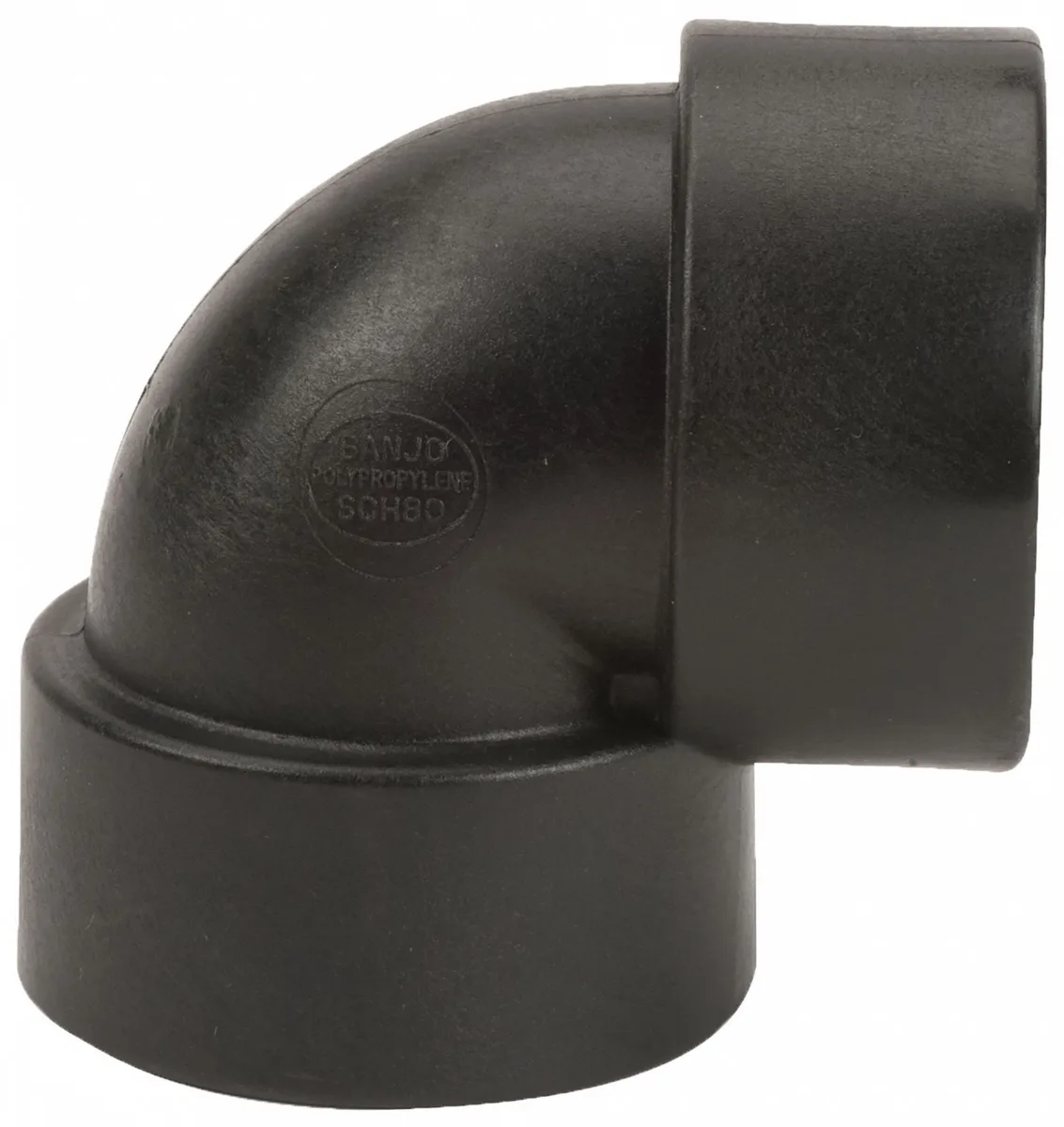

Black polypropylene 90-degree elbow fitting with female NPT threads

Banjo

Banjo EL200-90 90° Elbow Polypropylene 2" Schedule 80 300 psi

SKU CH-CA7K-6NCJ6 MPN EL200-90

Polypropylene 90° elbow with 2" female NPT ends, Schedule 80 rated to 300 psi from -20°F to 150°F

  • TypeDrain Components
  • MaterialHAWA
  • ColorBlack
  • 90° elbow redirects flow in tight pipe runs
  • Schedule 80 polypropylene handles 300 psi working pressure
  • Rated from -20 to 150 °F for hot and cold service
  • Female NPT threads on both ends for direct assembly
  • 4 in overall length keeps installation compact

90° Elbow for Schedule 80 Pipe

The Banjo EL200-90 is a 90-degree elbow made from polypropylene for Schedule 80 piping systems. It connects two 2-inch female NPT threads with 11-1/2 threads per inch. This fitting suits installers routing drain or trap lines in industrial or agricultural fluid handling.

300 psi Maximum Operating Pressure

The single specification that decides fit is the 300 psi maximum operating pressure at 20°C. The Schedule 80 wall thickness and polypropylene construction are rated for this limit. Systems exceeding this pressure require a different fitting class or material.

Temperature Range Minus 20 to 150 Degrees F

Under sustained load the elbow handles continuous temperatures from minus 20 to 150 degrees Fahrenheit. Polypropylene resists creep within this window so threads stay sealed during long duty cycles. Operation outside this range risks deformation or stress cracking.

Highlights

  • 90° elbow redirects flow in tight pipe runs
  • Schedule 80 polypropylene handles 300 psi working pressure
  • Rated from -20 to 150 °F for hot and cold service
  • Female NPT threads on both ends for direct assembly
  • 4 in overall length keeps installation compact

Specifications

TypeDrain Components
MaterialHAWA
ColorBlack
BrandBanjo
ModelEL200-90

Questions about this item

What does the 300 psi maximum operating pressure mean when the elbow is installed in a real piping system?

It means the elbow can handle up to 300 psi of internal pressure at temperatures between -20 and 150 degrees Fahrenheit without leaking or bursting, provided the connecting pipe and fittings are also rated for that pressure.

How does the 2 inch female NPT thread with 11 1/2 threads per inch limit what pipes or fittings can connect to this elbow?

It only accepts male NPT threads of the same 2 inch nominal size and 11 1/2 TPI pitch; mismatched thread standards or sizes will not seal properly and could leak under pressure.

What clearance is needed to fit the 4 inch overall length of this 90 degree elbow in a tight installation?

You need at least 4 inches of straight-line space along each port centreline from the corner to allow the elbow to thread fully onto both pipes without obstruction.
