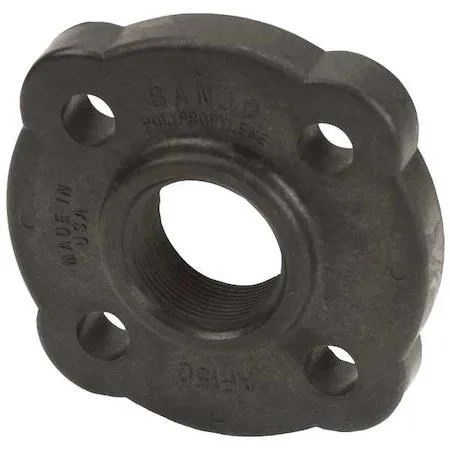

Black polypropylene flange trap with raised face and four bolt holes

Banjo

Banjo AF150 Flange Trap Polypropylene 1-1/2" Schedule 80 150 psi

SKU CH-J3PC-QEHNR MPN AF150

Polypropylene flange trap rated 150 psi for Schedule 80 piping systems

  • TypeDrain Components
  • MaterialHAWA
  • ColorBlack
  • Polypropylene construction resists corrosion and chemicals
  • Schedule 80 rating handles 150 psi maximum operating pressure
  • Raised-face flange with four bolt holes simplifies pipe alignment
  • Female NPT threading allows direct connection to 1-1/2 inch piping
  • Operating range from -20 to 150 degrees F suits varied environments

Flange trap for Schedule 80 pipe

The Banjo AF150 is a raised-face flange trap moulded from black polypropylene. It fits 1-1/2 inch nominal pipe with Female NPT threading and a Schedule 80 wall. The body carries a Class 150 rating and a maximum operating pressure of 150 psi. The overall length is 1 inch.

Chemical and temperature suitability

The polypropylene construction handles continuous service from -20 °F to 150 °F and resists many acids, bases and solvents. It is not intended for steam lines, high-temperature oil or pressures above the rated 150 psi. Installers needing metal flanges or higher pressure classes should select a different product.

Bolt pattern fixes alignment

The flange has four bolt holes on a 3-7/8 inch bolt circle with 5/8 inch hole diameter. This pattern determines whether the trap mates with existing piping or equipment. Verify the bolt circle and hole size before ordering.

Highlights

  • Polypropylene construction resists corrosion and chemicals
  • Schedule 80 rating handles 150 psi maximum operating pressure
  • Raised-face flange with four bolt holes simplifies pipe alignment
  • Female NPT threading allows direct connection to 1-1/2 inch piping
  • Operating range from -20 to 150 degrees F suits varied environments

Specifications

TypeDrain Components
MaterialHAWA
ColorBlack
BrandBanjo
ModelAF150

Questions about this item

How do I confirm the AF150 flange is sealing correctly after installation?

Pressurise the system up to 150 psi and check all four bolt holes and the female NPT threads for leaks; the raised face should remain tight between -20 °F and 150 °F.

What comes with the AF150 and what must I supply?

The box contains the black polypropylene flange only; you must provide four 5/8 in bolts, matching gaskets and 1-1/2 in Schedule 80 pipe with 11-1/2 NPT threads.

Which pressure class and pipe schedule should I select for a 150 psi system?

Choose the Class 150, Schedule 80 version — it is rated for 150 psi maximum operating pressure and matches Schedule 80 piping.
