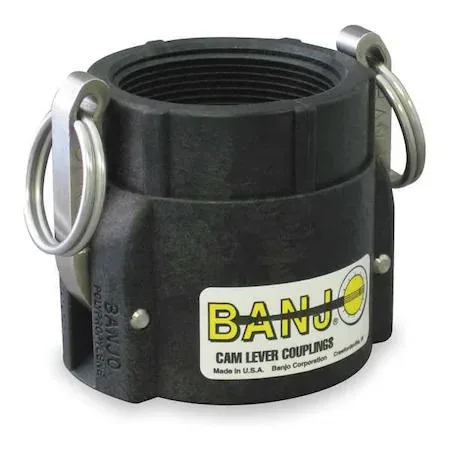

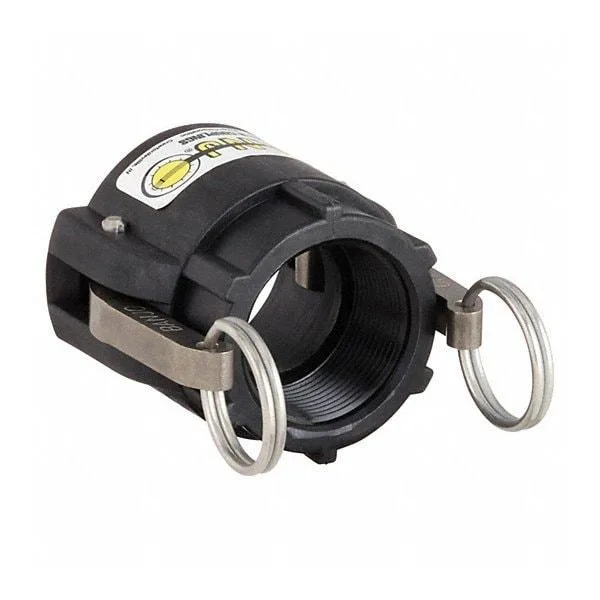

Polypropylene cam-and-groove coupling, Type D, 2-inch socket and hose fitting, EPDM gasket, 3-1/8 inch overall length

Banjo

Banjo 200D Type D 2 in Coupling 2 in Hose Fitting Trap

SKU CH-E95Q-H7C4R MPN 200D

A polypropylene Type D cam-and-groove coupling with a 2-inch NPT thread and EPDM gasket rated to 200 psi at 70 °F

  • TypeDrain Components
  • MaterialHAWA
  • Type D cam-and-groove design enables quick hose connections
  • Polypropylene body resists corrosion in plumbing applications
  • 2-inch NPT female thread fits standard pipe sizes
  • EPDM gasket seals reliably at 200 psi working pressure
  • Compact 3-1/8 inch length suits tight installation spaces

Coupling type and size

The Banjo 200D is a Type D cam and groove coupling with a 2 in coupling size and a 2 in hose fitting. It uses a female NPT connection and a socket inside diameter of 2 9/16 in. The body is constructed from polypropylene with an EPDM gasket and an overall length of 3 1/8 in.

Suitable uses and limits

This fitting suits fluid-transfer assemblies that require a quick-disconnect cam and groove connection at 2 in NPT. It is not intended for systems that exceed the rated pressure or that demand a built-in locking arm for secure engagement. Buyers needing a different thread standard or a larger bore should select another model.

Pressure capacity and headroom

The maximum working pressure is 200 psi at 70 F, providing headroom for typical low-pressure discharge or suction lines. Performance drops as temperature rises above the reference point, so the fitting runs out of margin in high-temperature or high-pressure service beyond the stated rating.

Highlights

  • Type D cam-and-groove design enables quick hose connections
  • Polypropylene body resists corrosion in plumbing applications
  • 2-inch NPT female thread fits standard pipe sizes
  • EPDM gasket seals reliably at 200 psi working pressure
  • Compact 3-1/8 inch length suits tight installation spaces

Specifications

TypeDrain Components
MaterialHAWA
BrandBanjo
Model200D

Questions about this item

What thread standard does my piping need for the 2 in NPT connection?

The coupling uses a 2 in NPT thread with 11 1/2 threads per inch, so your pipe or adapter must match that same thread form.

Will the polypropylene body and EPDM gasket handle fluids at 70 F up to 200 psi alongside my existing metal fittings?

Yes, the body is rated for 200 psi at 70 F and the EPDM gasket is compatible with many water-based fluids used in mixed-material systems.

How can I confirm the coupling is sealed correctly after assembly?

Pressurise the line to the working pressure and check the gasket seat and cam arms for any visible leakage.
