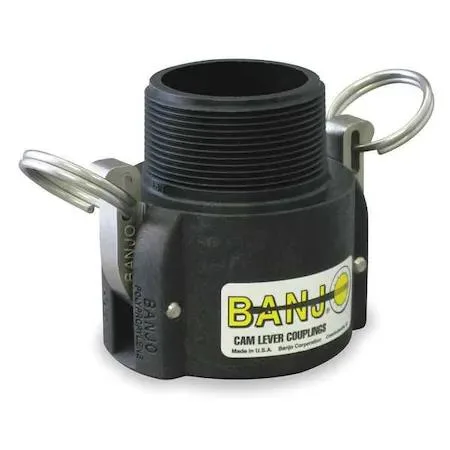

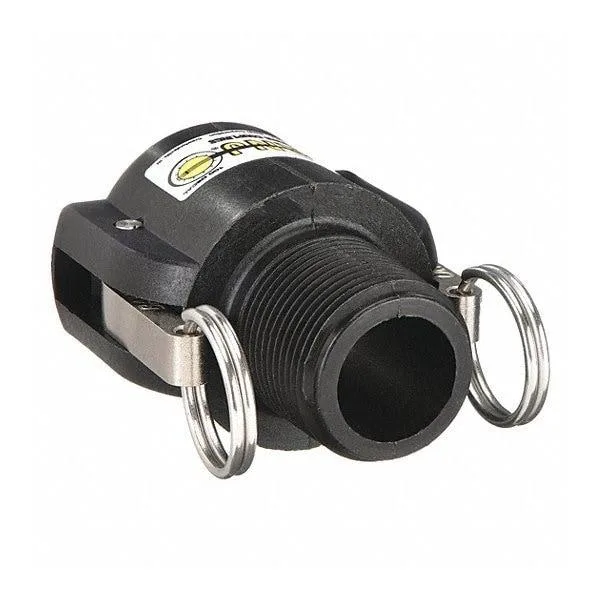

Polypropylene cam-and-groove Type B coupler, 2-inch female socket by 2-inch MNPT thread, EPDM gasket, 3-9/16 inch overall length

Banjo

Banjo 200B Type B 2 in Female Coupler x 2 in MNPT Trap

SKU CH-2MZ6-K4V7Z MPN 200B

Polypropylene Type B cam-and-groove socket couples a 2 in female cam to a 2 in MNPT thread with an EPDM gasket, rated 225 psi at 70 °F

  • TypeDrain Components
  • Polypropylene body resists corrosion in fluid transfer
  • Type B cam-and-groove design enables quick hose connection
  • 2 in MNPT thread mates with standard NPT piping
  • EPDM gasket seals reliably at 225 psi working pressure
  • Compact 3 9/16 in overall length fits tight installations

2 in Type B Coupler

This Banjo 200B fitting is a polypropylene cam-and-groove coupler with a 2 in female socket and a 2 in male NPT thread. It suits fluid-transfer lines that require a quick-disconnect connection on the supply side and a tapered pipe thread on the equipment side. The EPDM gasket provides chemical compatibility for many water-based and mild-chemical applications.

Verify thread and pressure before ordering

Confirm that the mating component uses a 2 in NPT thread with an 11 1/2 pitch to match the male end. The coupler is rated for a maximum working pressure of 225 psi at 70 F, so the system pressure must stay at or below that value. Ensure the EPDM gasket material is suitable for the fluid being conveyed.

Connects hose or pipe to NPT equipment

The female cam socket accepts a standard 2 in Type B adapter, allowing rapid coupling and uncoupling without tools. The male NPT end threads directly into a pump, valve or tank port, eliminating the need for a separate nipple. The 3 9/16 in overall length keeps the assembly compact in tight plumbing runs.

Highlights

  • Polypropylene body resists corrosion in fluid transfer
  • Type B cam-and-groove design enables quick hose connection
  • 2 in MNPT thread mates with standard NPT piping
  • EPDM gasket seals reliably at 225 psi working pressure
  • Compact 3 9/16 in overall length fits tight installations

Specifications

TypeDrain Components
BrandBanjo
Model200B

Questions about this item

Does the 200B include a gasket or do I need to buy an EPDM gasket separately?

The coupler comes with an EPDM gasket already fitted in the socket, so no separate gasket purchase is required for installation.

Should I choose the 2 in MNPT version or a different thread size for a 2 in NPT pipe?

The 200B is built with a 2 in MNPT thread that matches a standard 2 in NPT pipe, making this the correct version for that connection.

What does the 225 psi rating at 70 F mean when the fitting is under pressure in a real system?

It means the polypropylene body and EPDM seal are rated to hold up to 225 psi at 70 F; pressure capacity drops as fluid temperature rises above that point.
