Baldwin T8 V-Shape LED Fixture 1FT 1080lm 6000K 9W Pack of 2
Two 1 ft V-shape LED fixtures deliver 1080 lumens each at 6000 K while drawing only 9 watts
- TypeLED Light Fixtures
- Lamp TypeFluorescent
- LocationIndoor
- ShapeRectangle
- Housing Color6000K
- Size/Dimensions12 in x 1.22 in x 1.38 in
- 1080 lumens per fixture brightens workspaces
- 9 watts each keeps energy use low
- V-shape 270-degree beam spreads light widely
- Link up to 10 units in series for longer runs
- 50000-hour rated life reduces replacement frequency

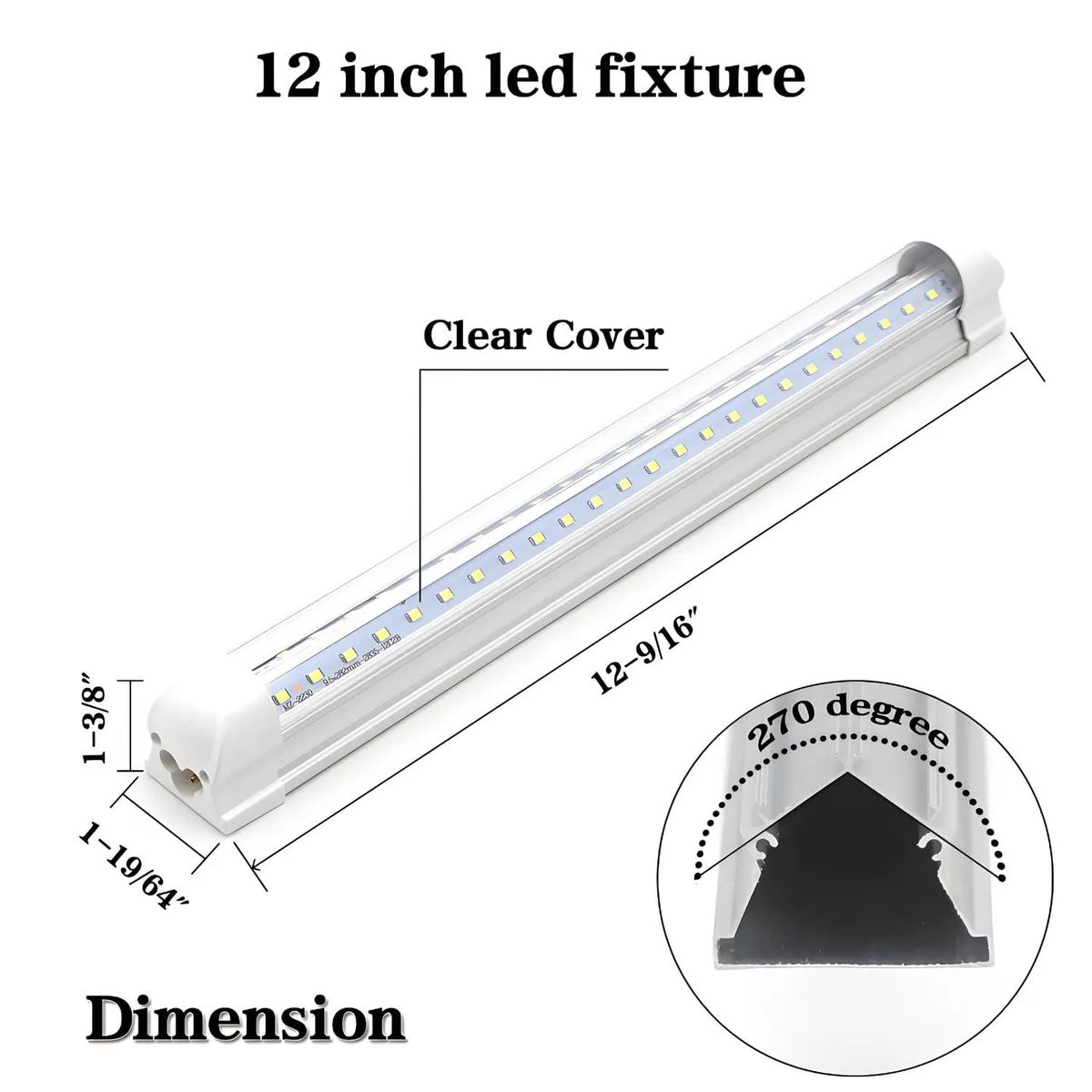

V-Shape 270° Light Output

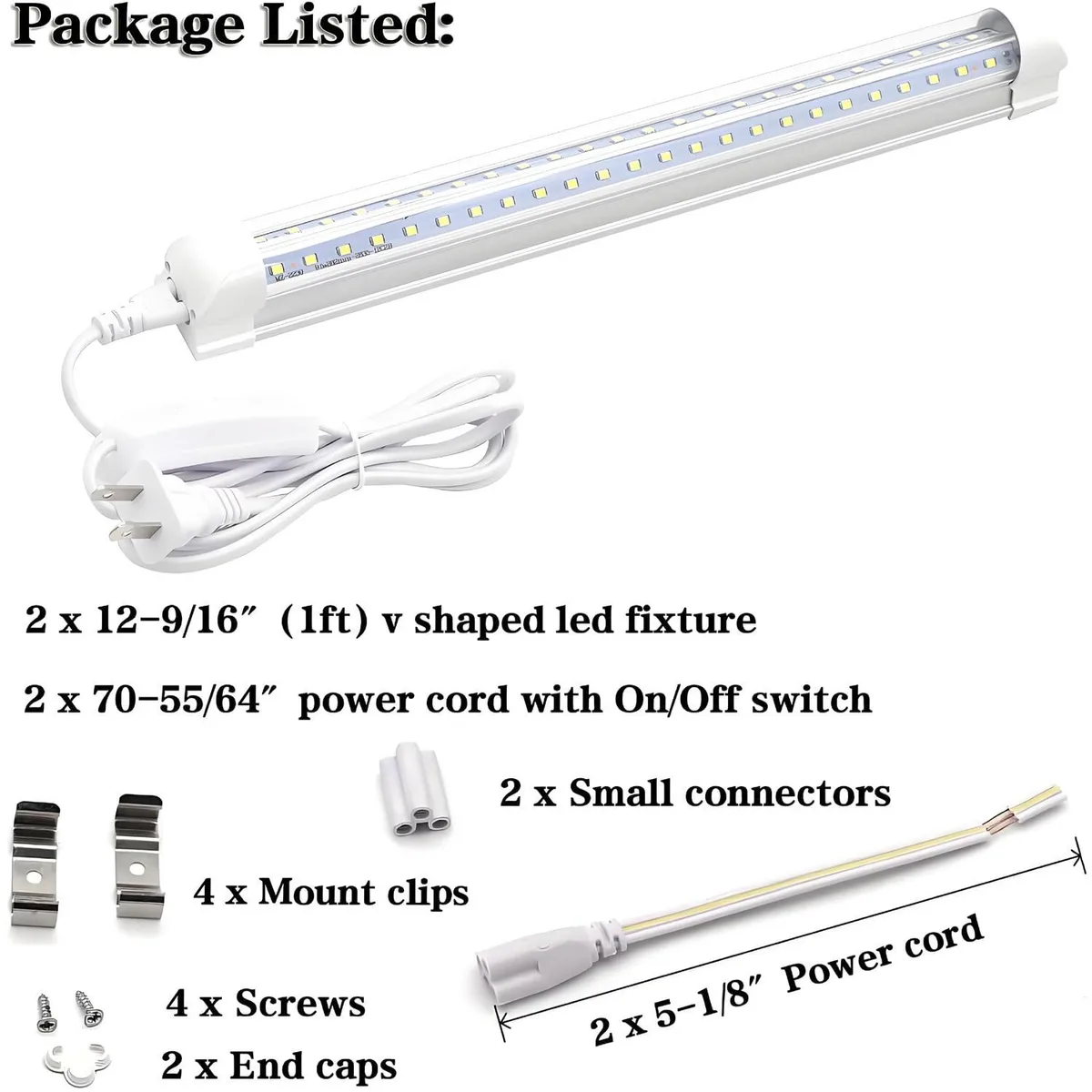

Each 1 ft fixture delivers 1080 lumens at 6000 K cool white from 48 SMD 2835 Epistar chips. The V-shaped 270° beam spreads light across a wide area for garages, workshops, under-cabinet runs or retail displays. Two units are included with snap joints, clips, screws and power cords for immediate plug-and-play installation. ||
Low Heat 9 W Operation
At 9 watts the fixture produces 110–120 lumens per watt with a 0.95 power factor on 85–265 V AC. Low thermal output keeps the aluminium and PC housing cool during continuous use and the integrated on/off switch provides local control without a dimmer. Rated life is 50 000 hours, reducing replacement frequency. ||
Replaces Fluorescent T8 Tubes
Direct-wire design removes the ballast for simpler wiring and lower maintenance cost. Not suitable for damp locations or dimmer circuits. Buyers who need dimmable output, wet-rated fixtures or longer continuous runs beyond ten linked units should consider other solutions.
Highlights
- 1080 lumens per fixture brightens workspaces
- 9 watts each keeps energy use low
- V-shape 270-degree beam spreads light widely
- Link up to 10 units in series for longer runs
- 50000-hour rated life reduces replacement frequency
Specifications
| Brand | Baldwin |
|---|---|
| Type | LED Light Fixtures |
| Lamp Type | Fluorescent |
| Location | Indoor |
| Shape | Rectangle |
| Housing Color | 6000K |
| Size/Dimensions | 12 in x 1.22 in x 1.38 in |
| Temperature Range | Cool White |
| Compatibility/Fitment | Out-Opening, Narrow Stile, Store Front Doors |
| Voltage | 110V |
| Watts | 9 watts |
| Features | Widely Use |
Questions about this item
How do I install the Baldwin T8 V-Shape LED fixture and what step do people often miss?
Remove or bypass the existing ballast, then use the included snap joints and mounting clips to hang the 12-inch fixture. Plug the power cord with its built-in on/off switch into a 110 V outlet. The step many miss is disconnecting power and fully bypassing the ballast before wiring.
What maintenance or replacement will the Baldwin T8 V-Shape LED fixture need later?
The fixture uses 48 SMD 2835 Epistar LED chips rated for 50000 hours. No lamp replacements are needed during that period. If output drops or a driver fails after the rated life, the whole integrated unit would be replaced.
What limit appears first when the Baldwin T8 V-Shape LED fixture runs continuously?
Thermal limits appear first. The aluminium and PC housing dissipates heat from the 9 W load, but sustained operation in an enclosed space can raise junction temperature and accelerate lumen depreciation before the 50000-hour rating is reached.
