Baldwin Motion Sensor Light Socket E26 E27 60W 110V 12ft range
Adds automatic motion-activated control to any indoor E26 or E27 bulb socket with 12-foot detection range, adjustable 10-second to 5-minute timer, and 360-degree PIR sensing up to 60 watts
- TypeLED Light Fixtures
- LocationIndoor
- ShapeRectangle
- Housing MaterialPlastic
- Size/Dimensions5 in x 2.4 in x 2.4 in
- Compatibility/FitmentOut-Opening, Narrow Stile, Store Front Doors
- Automatic hands-free lighting with PIR motion detection up to 12 feet
- Adjustable timer from 10 seconds to 5 minutes and lux sensitivity 3 to 2000 lux
- Converts standard E26 or E27 bulbs into motion-sensing lights up to 60 watts
- 360-degree detection angle covers entire room when mounted 8 feet high
- Indoor rated for temperatures from -4°F to 104°F with 110V operation
Motion Sensor Light Socket

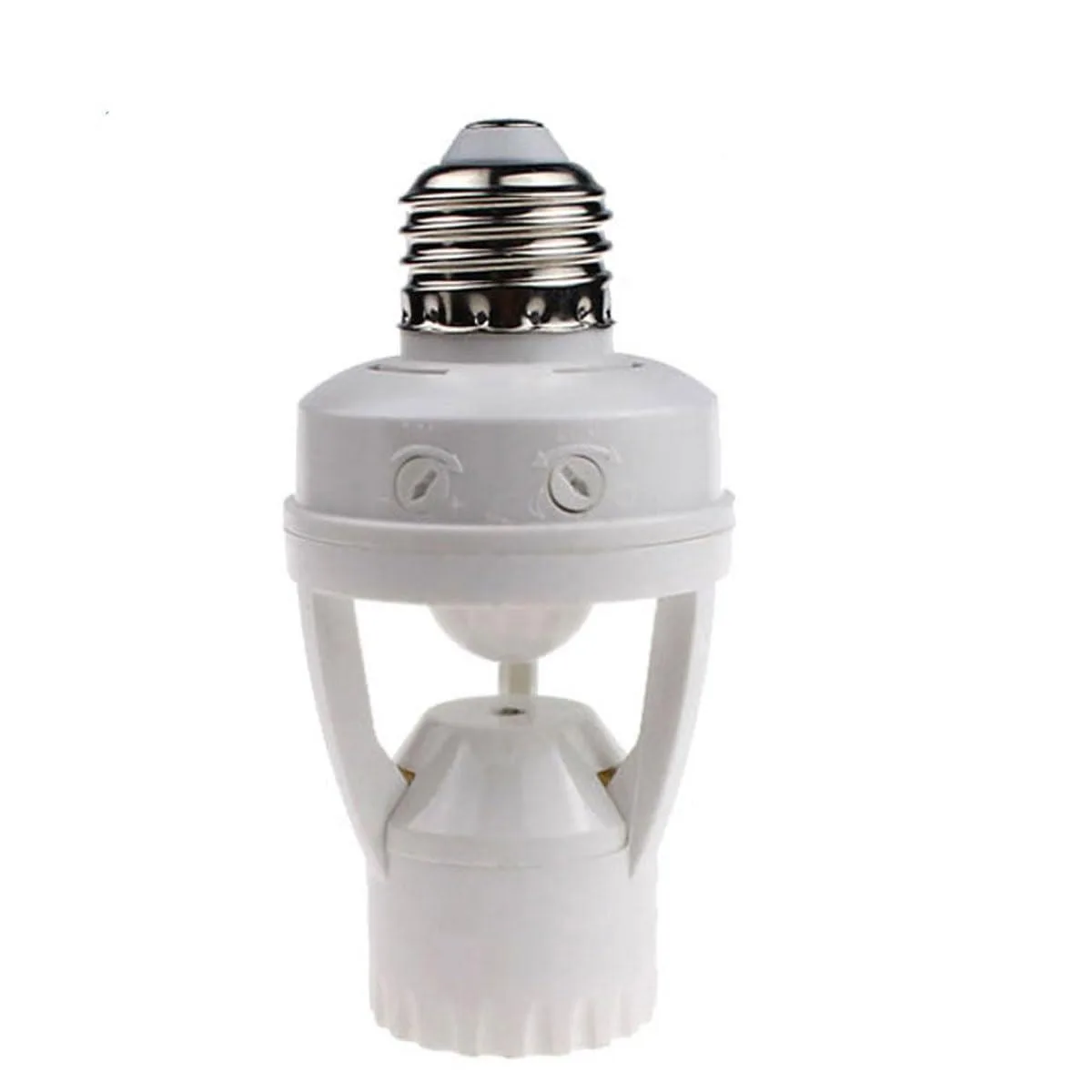

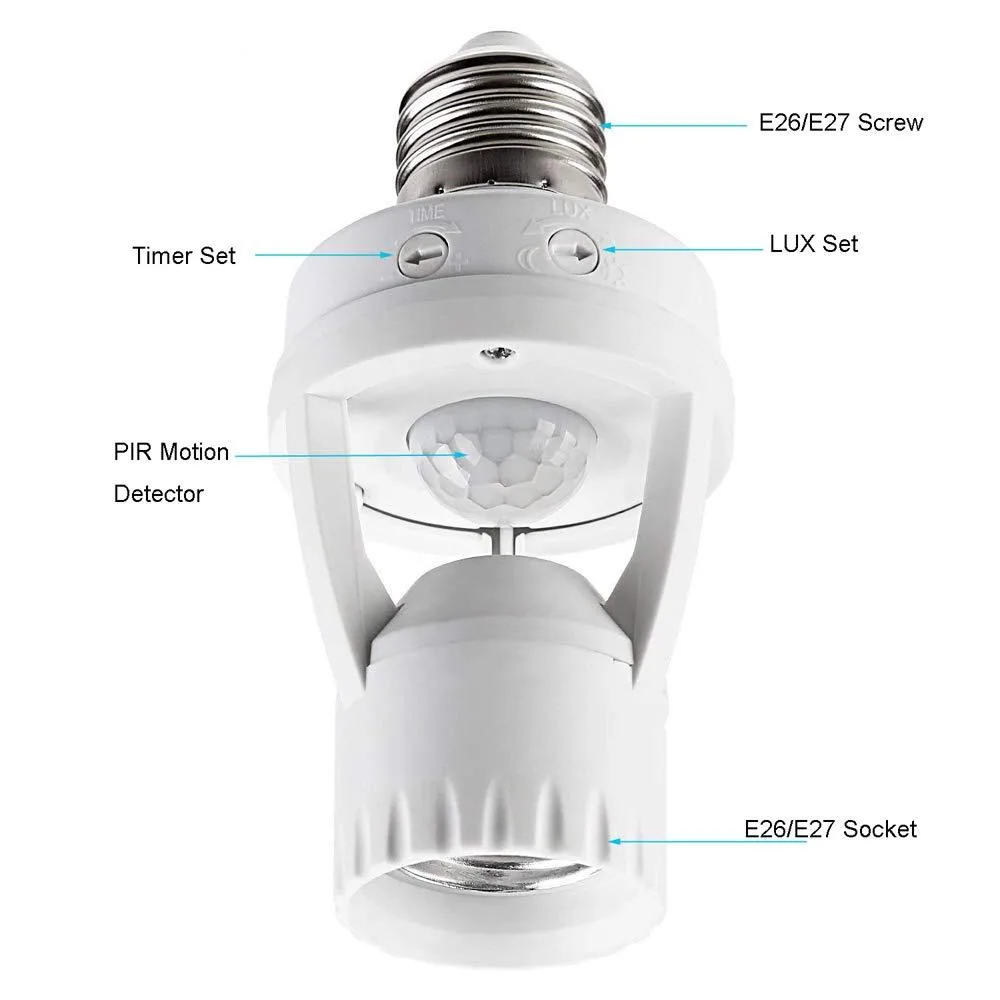

The Baldwin Motion Sensor Light Socket adds automatic motion-sensing control to any standard E26 or E27 indoor light fixture. It screws directly into the existing socket and accepts compatible bulbs up to 60 watts. The unit provides 360-degree detection with a range of up to 12 feet when mounted at an eight-foot height. It is designed for indoor locations such as basements, pantries, storage rooms, and corridors.
Upgrade from Manual Switching

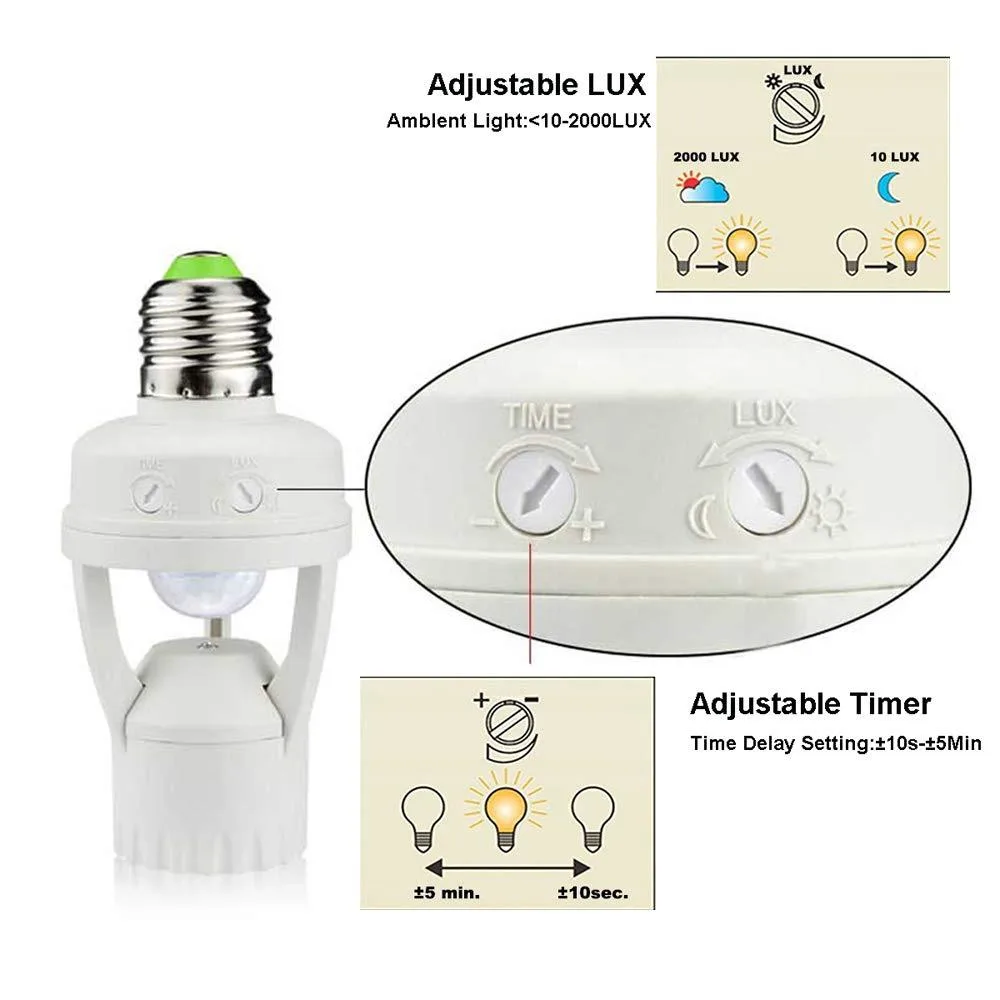

This adapter replaces the need to manually operate a wall switch or pull chain in areas where hands-free light is convenient. The jump is worth it when you want lights to activate automatically upon entry and turn off after a preset delay. Adjustable timer settings range from 10 seconds to 5 minutes, and the lux threshold can be tuned from 3 to 2000 lux so the sensor only triggers in darkness. It operates on 110V input and supports voltages up to 240V.
Capacity and Headroom
The socket handles incandescent bulbs up to 60 watts and compact fluorescent bulbs up to 50 watts, covering typical residential lamps. Exceeding the 60-watt maximum risks a short circuit and must be avoided. The passive infrared sensor functions reliably between -4°F and 104°F; colder temperatures may degrade detection performance. Obstructions, lamp shades, or glass fixtures that block the sensor ball will prevent proper operation.
Highlights
- Automatic hands-free lighting with PIR motion detection up to 12 feet
- Adjustable timer from 10 seconds to 5 minutes and lux sensitivity 3 to 2000 lux
- Converts standard E26 or E27 bulbs into motion-sensing lights up to 60 watts
- 360-degree detection angle covers entire room when mounted 8 feet high
- Indoor rated for temperatures from -4°F to 104°F with 110V operation
Specifications
| Brand | Baldwin |
|---|---|
| Type | LED Light Fixtures |
| Location | Indoor |
| Shape | Rectangle |
| Housing Material | Plastic |
| Size/Dimensions | 5 in x 2.4 in x 2.4 in |
| Compatibility/Fitment | Out-Opening, Narrow Stile, Store Front Doors |
| Voltage | 110V |
| Watts | 60 watts |
| Part Number | MotionSensorlightSocket |
Questions about this item
Will the 5 in by 2.4 in housing fit inside a standard ceiling canopy?
The rectangular plastic housing measures 5 in by 2.4 in by 2.4 in, so check your canopy depth before installing.
How do I set the 10 s to 5 min delay and 3 to 2000 lux threshold without covering the sensor ball?
Adjust the time and lux dials after wiring, then verify the sensor ball has a clear 360-degree view with no glass shade blocking it.
When should I replace the bulb if the socket supports up to 60 W incandescent or 50 W CFL?
Replace the bulb when it fails; the socket itself has no user-serviceable parts and operates from -4 °F to 104 °F.
