Baldwin LED Light Fixture Controller DC 12V-24V 18A 24Key RGB Remote
Controls DC 12V-24V RGB LED strips and modules at up to 18A with 24-key remote offering 16 colours and four dynamic modes
- TypeLED Light Fixtures
- Lamp TypeFluorescent
- LocationIndoor
- Housing ColorRGB (Red, Green, Blue)
- Compatibility/FitmentOut-Opening, Narrow Stile, Store Front Doors
- Voltage110V
- Control 16 colours and 4 lighting modes via 24-key remote
- Manage RGB strips up to 18 A total across three channels
- Operate from 10 to 15 metres distance with RF remote
- Auto memory recalls last setting after power loss
- Compatible with 3528, 5050, 5630 and 5730 LED modules
Controller purpose
This Baldwin LED controller manages RGB strip lights and modules for indoor fixtures. It suits installers and hobbyists who need remote colour selection and mode switching on DC 12V-24V systems. Buyers requiring mains-voltage dimming or smart-home integration will need a different device.
Sustained operation
The unit delivers three channels at 6A each for a combined 18A maximum using PWM regulation. It operates continuously between -20 and 60 degrees. Overloading the input can damage the controller or connected LEDs, so the 18A ceiling must be respected during extended runs.
Build and connections
An aluminium signal box houses the electronics and accepts screw mounting on narrow-stile or store-front door frames. A 24-key RF remote provides 16 colours and four modes up to 15 metres away. The package includes the controller and remote only; power supply and LED strips are not included.
Highlights
- Control 16 colours and 4 lighting modes via 24-key remote
- Manage RGB strips up to 18 A total across three channels
- Operate from 10 to 15 metres distance with RF remote
- Auto memory recalls last setting after power loss
- Compatible with 3528, 5050, 5630 and 5730 LED modules
Specifications
| Brand | Baldwin |
|---|---|
| Type | LED Light Fixtures |
| Lamp Type | Fluorescent |
| Location | Indoor |
| Housing Color | RGB (Red, Green, Blue) |
| Compatibility/Fitment | Out-Opening, Narrow Stile, Store Front Doors |
| Voltage | 110V |
| Watts | 1 watts |
| Features | Widely Use |
| Part Number | 4334417789 |
Questions about this item
How much heat or power does the controller draw when running 18 A continuously?
The unit handles a maximum total output current of 18 A across three 6 A channels at DC 12 V–24 V and operates from –20 °C to 60 °C.

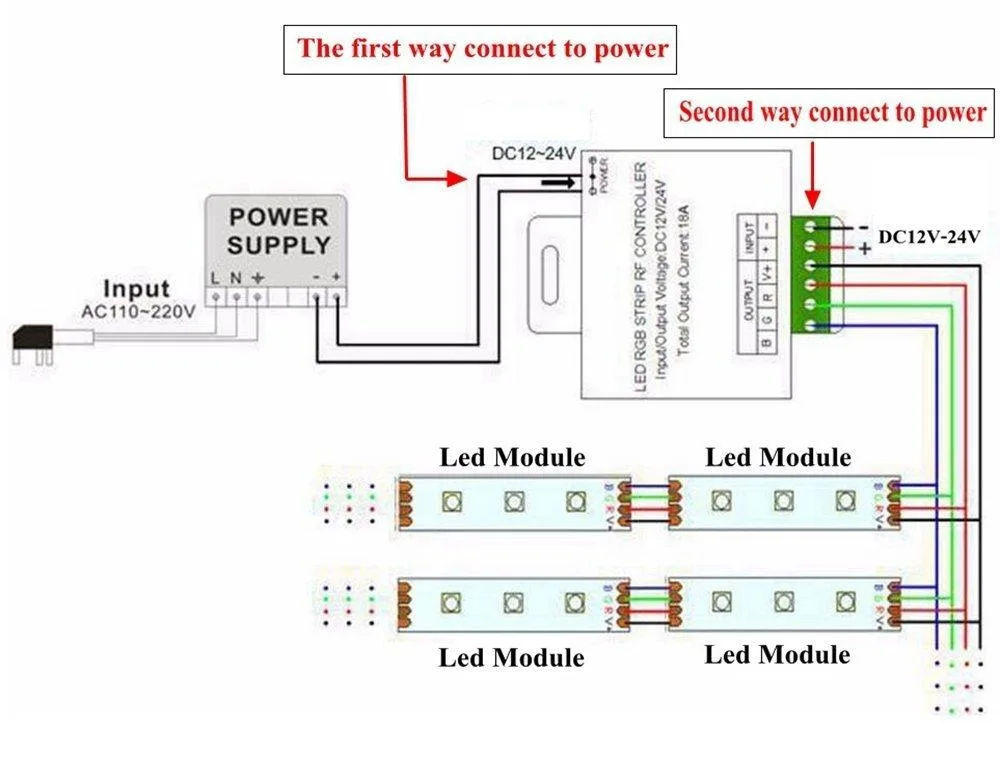

What power supply and LED strips are required to use this controller?
You need a DC 12 V–24 V power source and compatible RGB strips such as 3528, 5050, 5630 or 5730 modules; the controller provides three 6 A output channels.
Will the 24-key RF remote still work with older 3528 or 5050 RGB strips I already own?
Yes, the PWM controller supports common-anode RGB strips including 3528 and 5050 types, offering 16 colours and four modes via the 10–15 m remote.
