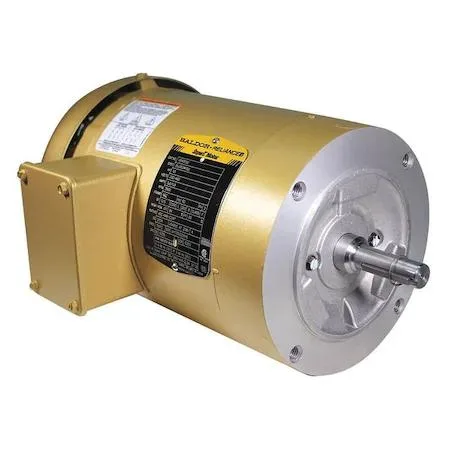

Baldor-Reliance 1.5 HP three-phase motor, 56C face-mount, TEFC enclosure

Baldor Electric

Baldor Electric VEM3550 1 1/2 HP 56C 3-Phase Motor

SKU CH-J2HN-X2B7D

Three-phase general-purpose motor delivers 1-1/2 HP at 3,500 RPM in a 56C frame with 208-230/460V operation

  • 1 1/2 HP three-phase power drives demanding loads
  • 208-230/460 V AC input fits common industrial supplies
  • 3,500 RPM nameplate speed matches standard equipment needs
  • Totally enclosed fan-cooled enclosure protects internals from debris
  • 56C face-mount frame simplifies direct coupling

1 1/2 HP 56C three-phase motor

This Baldor-Reliance motor delivers 1 1/2 horsepower in a 56C frame for continuous-duty industrial and marine use. It runs on 208-230/460 V AC at 60 Hz with a nameplate speed of 3 500 RPM and a 1.15 service factor.

Capacity and headroom

At 460 V the motor draws 1.90 full-load amps and at 208-230 V it draws 4.0-3.8 amps, so it handles steady loads up to its rated output with margin from the service factor. It is usable at 208 V but not at 200 V, and the maximum ambient temperature is 40 degrees C.

Build integration

The totally enclosed fan-cooled enclosure and NEMA Design B construction suit horizontal face-mount installations with clockwise or counter-clockwise rotation. Insulation class F supports the continuous duty cycle, though no thermal protection is fitted so external overload provision is required.

Highlights

  • 1 1/2 HP three-phase power drives demanding loads
  • 208-230/460 V AC input fits common industrial supplies
  • 3,500 RPM nameplate speed matches standard equipment needs
  • Totally enclosed fan-cooled enclosure protects internals from debris
  • 56C face-mount frame simplifies direct coupling

Specifications

BrandBALDOR ELECTRIC

Questions about this item

Will the 56C face mount and 1 1/2 HP rating let this motor replace an older 56C unit on my existing pump?

The 56C frame and face mounting match the NEMA standard, so the bolt pattern and shaft dimensions line up with legacy 56C equipment. The 1 1/2 HP output at 3,500 RPM and 1.15 service factor provide the same nameplate power with a margin for occasional overload.

How can I confirm the motor is running correctly after wiring it to 230 V three-phase?

Measure each phase current with a clamp meter; balanced readings near 3.8 A at full load show the windings are healthy. The motor should spin at 3,500 RPM with low vibration and the external fan moving air steadily across the totally enclosed housing.

Does the box include a mounting base or only the face-mounted motor?

The motor is supplied as a face-mount unit with the 56C flange integral to the frame; no separate rigid base is included. You will need to provide mounting bolts, a coupling or pulley for the keyed shaft, and three-phase supply wiring rated for 208–230/460 V operation.
