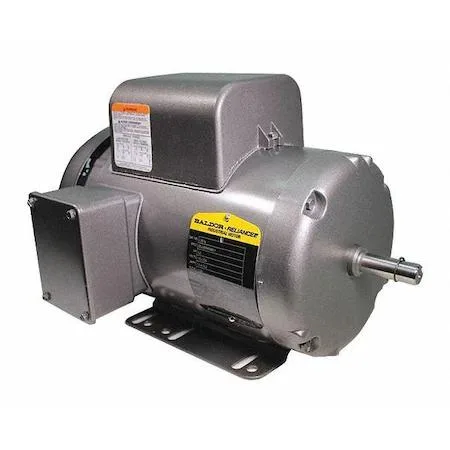

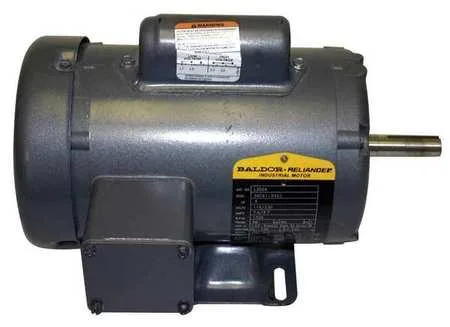

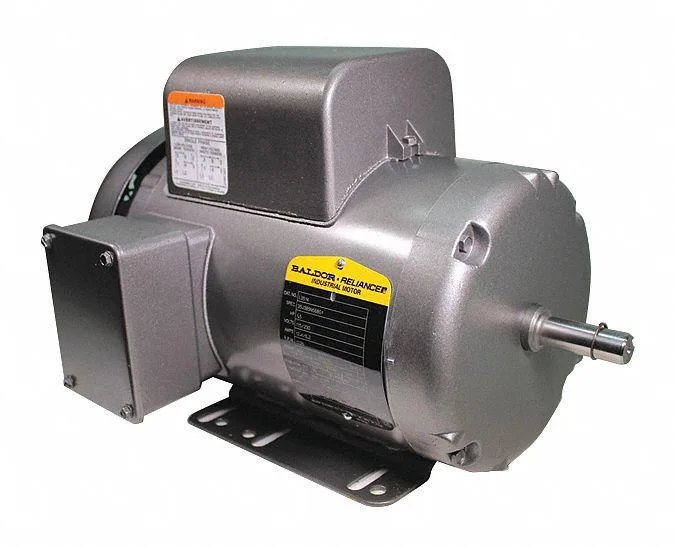

Baldor Electric L3514 Capacitor-Start/Run Machinery Motor 1 1/2 HP
A 1.5 hp single-phase capacitor-start/run motor with a 56H frame, 115/230 V operation and 1,800 rpm for continuous duty
- weight50.1
- typeClosed Base
- materialHAWA
- Continuous-duty design keeps equipment running without interruption
- 15 service factor handles short overloads safely
- 115/230 V dual voltage fits common shop wiring
- TEFC enclosure protects windings from dust and moisture
- 56H frame matches standard mounting dimensions
General-Purpose Motor for Industrial Tasks
This Baldor Electric L3514 motor delivers 1 1/2 horsepower for continuous-duty machinery. It suits workshops and light-industrial equipment that need reliable single-phase power. Builders integrating conveyors, pumps or fans will find the 56H frame a direct fit for many standard mounts.
115/230 V Operation with 208 V Flexibility
The motor runs on common 115 V or 230 V supplies and is usable at 208 V, while 200 V is not supported. A 6.1 A full-load draw at 230 V means existing branch circuits often suffice. The capacitor-start/run design provides strong starting torque without a separate control box, simplifying wiring.
Sustained Output at 40 °C Ambient
Class F insulation and a 1.15 service factor let the motor run continuously at its 1 800 RPM nameplate speed in ambients up to 40 °C. The totally enclosed fan-cooled enclosure keeps windings clean in dusty shops. No internal thermal protection is fitted, so external overload devices must be provided by the installer.
Highlights
- Continuous-duty design keeps equipment running without interruption
- 15 service factor handles short overloads safely
- 115/230 V dual voltage fits common shop wiring
- TEFC enclosure protects windings from dust and moisture
- 56H frame matches standard mounting dimensions
Specifications
| Brand | BALDOR ELECTRIC |
|---|---|
| weight | 50.1 |
| type | Closed Base |
| material | HAWA |
Questions about this item
How long can the 1 1/2 HP motor run continuously at 40 °C ambient?
The duty cycle is rated continuous, so the motor can operate without time limit at the maximum ambient temperature of 40 °C.
What is the full-load current and service factor when running all day on 230 V?
Full-load current is 6.1 A with a 1.15 service factor, giving a 7 A maximum continuous draw at 230 V.
Which single-phase voltage must the site supply for the 56H frame motor to start and run?
The motor is nameplated for 115/230 V AC at 60 Hz and is also usable at 208 V; it is not usable at 200 V.
