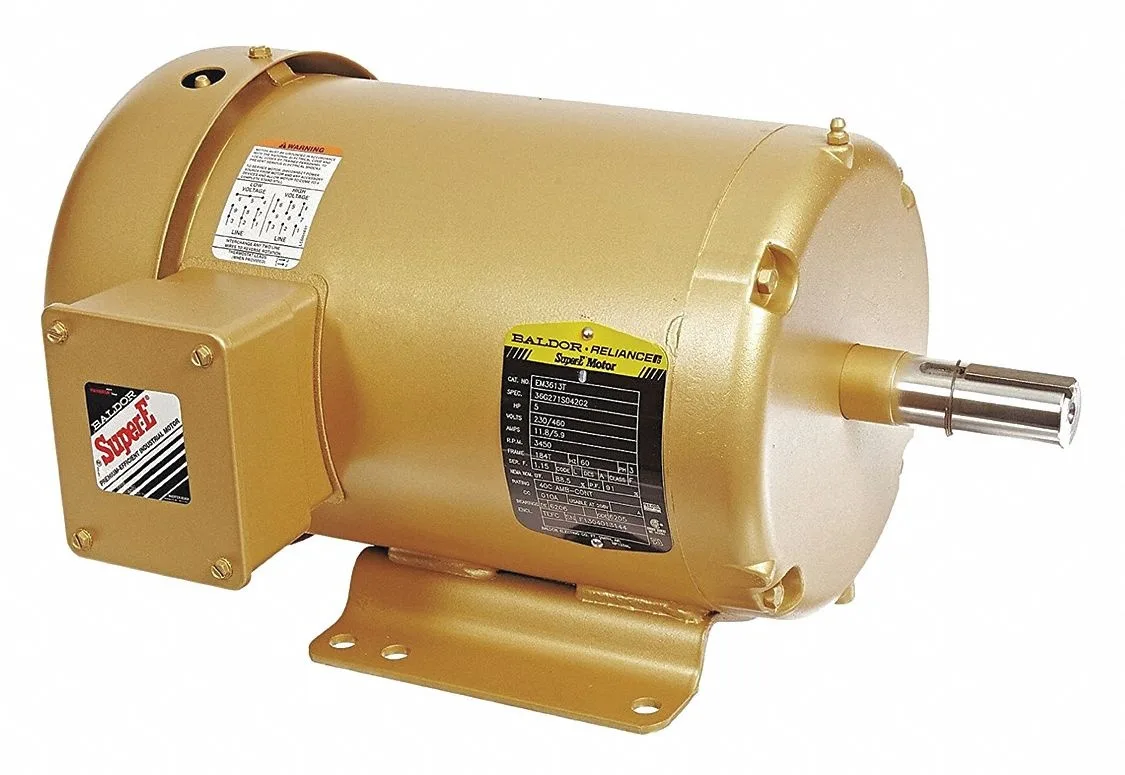

Baldor Electric EM3613T 5 HP 184T Frame machinery motor
Three-phase 5 HP motor with 184T frame, 3,470 RPM and 88.5 % efficiency
- weight76.25
- typeClosed Base
- materialHAWA
- Delivers 5 HP for demanding industrial applications
- Three-phase 230/460 V AC supply suits standard plant power
- 5 % nominal efficiency reduces energy consumption
- 15 service factor handles intermittent overload reliably
- Steel frame with ball bearings ensures long service life
Industrial Three-Phase Motor
The Baldor-Reliance EM3613T is a 5 HP general-purpose motor built for continuous-duty industrial machinery. It uses a 184T frame with a rigid base and steel construction, delivering 88.5 percent nominal efficiency at 3,470 RPM. The totally enclosed fan-cooled design suits fixed-speed equipment in manufacturing and processing environments.
Suitable Use and Limits
This motor fits plants running 230/460 V three-phase power at 60 Hz that need a direct on-line start with 1.15 service factor. It is not for single-phase supplies, variable-frequency drives, or applications that require built-in thermal protection or a different frame size.
Deciding Specification
The nameplate speed of 3,470 RPM at 60 Hz determines whether this motor matches the driven equipment’s required shaft speed; verify the load’s synchronous speed requirement before purchasing.
Highlights
- Delivers 5 HP for demanding industrial applications
- Three-phase 230/460 V AC supply suits standard plant power
- 5 % nominal efficiency reduces energy consumption
- 15 service factor handles intermittent overload reliably
- Steel frame with ball bearings ensures long service life
Specifications
| Brand | BALDOR ELECTRIC |
|---|---|
| weight | 76.25 |
| type | Closed Base |
| material | HAWA |
Questions about this item
What three-phase voltage supply does the EM3613T need to run?
The motor is rated for 230/460 V AC at 60 Hz and draws 11.8 A at 230 V or 5.9 A at 460 V under full load.
Will the 184T frame and rigid base match the mounting pattern on my existing equipment?
The 184T frame with a closed-base steel housing follows the standard NEMA footprint, so it bolts directly to any 184T rigid-base pattern.
How can I confirm the motor is delivering its rated 5 HP after installation?
Measure the line current at full load; it should read close to 11.8 A on 230 V or 5.9 A on 460 V, and the shaft speed should settle near 3,470 RPM.
