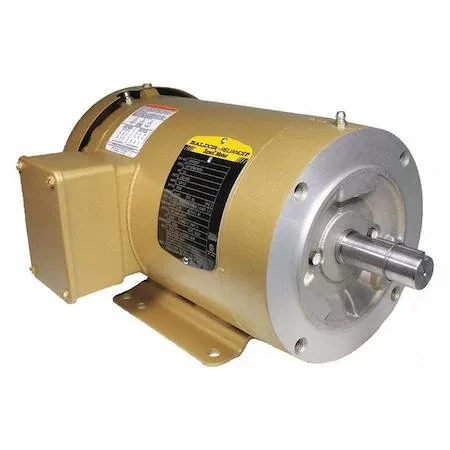

Baldor Electric CEM3550T Three-Phase General Purpose Motor 1 1/2 HP 143TC
Three-phase totally enclosed fan-cooled motor delivering 1 1/2 HP at 3500 rpm in a 143TC C-face frame with 84 percent nominal efficiency
- 84 % nominal efficiency reduces energy consumption
- 15 service factor handles peak loads reliably
- Totally enclosed fan-cooled design protects against dust and moisture
- Dual-voltage 230/460 V AC suits multiple supply configurations
- C-face 143TC frame simplifies direct coupling installation
Application & User
This Baldor-Reliance CEM3550T is a three-phase general-purpose motor rated at 1 1/2 HP with a 143TC C-face frame. It suits OEMs and maintenance teams replacing failed units on pumps, fans, conveyors or gearboxes where a standard NEMA footprint and CW/CCW rotation are required.
Critical Specification
The motor runs at 3500 rpm nameplate speed on 230/460 V AC, 60 Hz supply, drawing 3.8 amps at 230 V or 1.9 amps at 460 V full load. Voltage and frequency must match the site supply exactly or the motor will not develop rated torque and may overheat.
Installation Notes
The 143TC C-face with 1.15 service factor bolts directly to NEMA-matched reducers or pump housings using four through-bolts; no base shimming is needed. Common issues are wiring the nine leads for the wrong voltage, neglecting external overload protection since thermal protection is not built in, and exceeding the 40 °C ambient limit in confined cabinets.
Highlights
- 84 % nominal efficiency reduces energy consumption
- 15 service factor handles peak loads reliably
- Totally enclosed fan-cooled design protects against dust and moisture
- Dual-voltage 230/460 V AC suits multiple supply configurations
- C-face 143TC frame simplifies direct coupling installation
Specifications
| Brand | BALDOR ELECTRIC |
|---|
Questions about this item
How does the 3500 rpm nameplate speed translate when the motor is under load?
At full load the motor runs at its rated 3500 rpm, delivering 1 1/2 HP continuously with a 1.15 service factor for occasional overload.
What does the 230/460 V dual-voltage rating mean for wiring?
The motor can be connected for either 230 V or 460 V three-phase supply; full-load current is 3.8 A at 230 V and 1.9 A at 460 V.
What mounting provisions does the 143TC frame provide?
The 143TC frame includes a C-face flange with standard bolt pattern and a keyed shaft for direct coupling to pumps or gearboxes.
