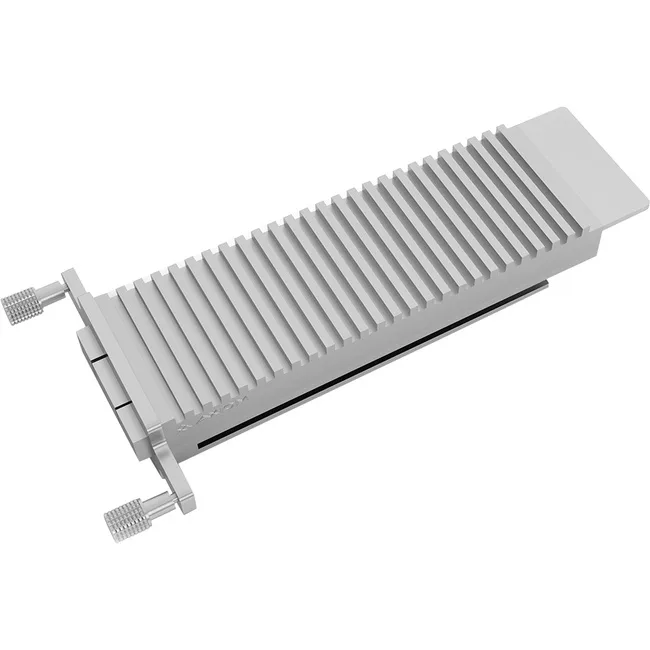

Axiom XENPAK 10GBASE-SR 850nm MMF Transceiver Module
XENPAK transceiver delivers 10 Gbps over 850 nm multi-mode fibre with SC connector, operating from 0 to 70 °C and RoHS compliant
- Device TypeTransceiver
- StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Network MediaMMF
- Wavelength850nm
- Transfer Rate10 Gbps
- Temperature0° ~ 70° C
- 10 Gbps transfer rate for high-speed data networking
- 850 nm wavelength over multi-mode fiber for short-range links
- MSA compliant design ensures OEM switch compatibility
- RoHS certified and environmentally friendly construction
- Operates reliably from 0 to 70 °C
Purpose-built 10 Gbps transceiver
This Axiom XENPAK module delivers 10 Gbps Ethernet over multi-mode fibre at 850 nm. It plugs into an SC duplex port and complies with IEEE 802.3, 802.3u and 802.3ab standards. The unit is MSA compliant and RoHS certified for regulated environments.
Suited for short-reach data-centre links
Network engineers extending 10 Gigabit Ethernet inside a rack or across a room will find the 0 °C to 70 °C operating range reliable. Buyers who need single-mode reach, longer distances or a different form factor such as SFP+ should look at other modules.
Handles 10 Gbps multi-mode runs
The transceiver comfortably carries 10 Gbps over standard OM3 or OM4 multi-mode fibre within typical data-centre distances. It runs out of headroom when the link budget demands single-mode wavelengths or reaches beyond multi-mode limits.
Highlights
- 10 Gbps transfer rate for high-speed data networking
- 850 nm wavelength over multi-mode fiber for short-range links
- MSA compliant design ensures OEM switch compatibility
- RoHS certified and environmentally friendly construction
- Operates reliably from 0 to 70 °C
Specifications
| Brand | Axiom |
|---|---|
| Device Type | Transceiver |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Network Media | MMF |
| Wavelength | 850nm |
| Transfer Rate | 10 Gbps |
| Temperature | 0° ~ 70° C |
Questions about this item
What switch port type do I need to plug this Axiom XENPAK module into?
The module fits a XENPAK slot on a switch or router that accepts 10 Gbps transceivers.
Can I run this 10GBASE-SR transceiver on the same multi-mode fibre plant I use for older 850nm links?
Yes, it operates at 850nm over multi-mode fibre, matching the wavelength of legacy 850nm optics.
How do I confirm the link is up at the rated 10 Gbps after installation?
Check the switch port LEDs or interface counters for a 10 Gbps link status and zero CRC errors.
