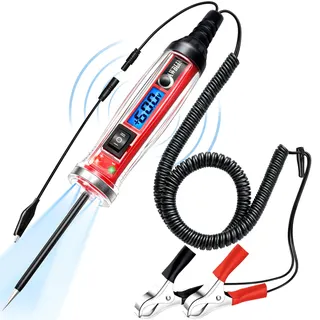

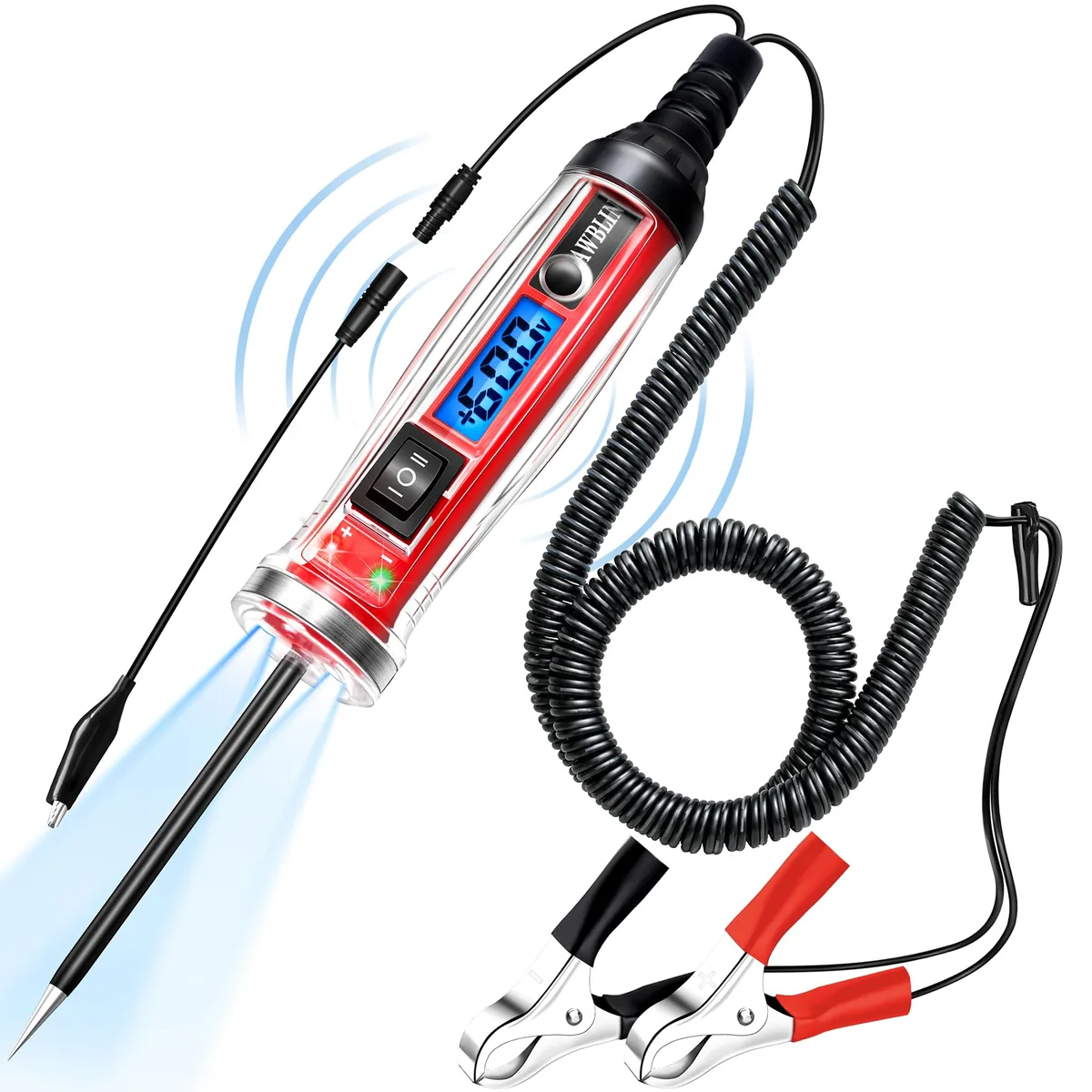

Handheld automotive circuit tester with LCD screen, probe tip and alligator clips

AWBLIN 822 LCD Digital Automotive Circuit Tester 5-36VDC 0-8A

SKU CH-87C5-GR7KK MPN 822

An automotive circuit tester measuring voltage up to 60 VDC and current up to 8 A with LCD readout and built-in flashlight

  • Featuresautomotive circuit tester, Meets Unspecified Safety and Func
  • Sports Team1 Piece
  • TypeVoltmeter, Ammeter

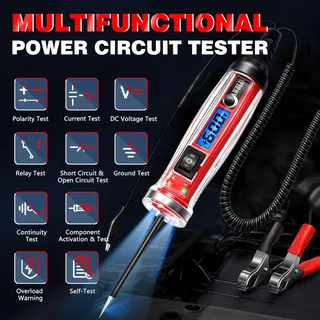

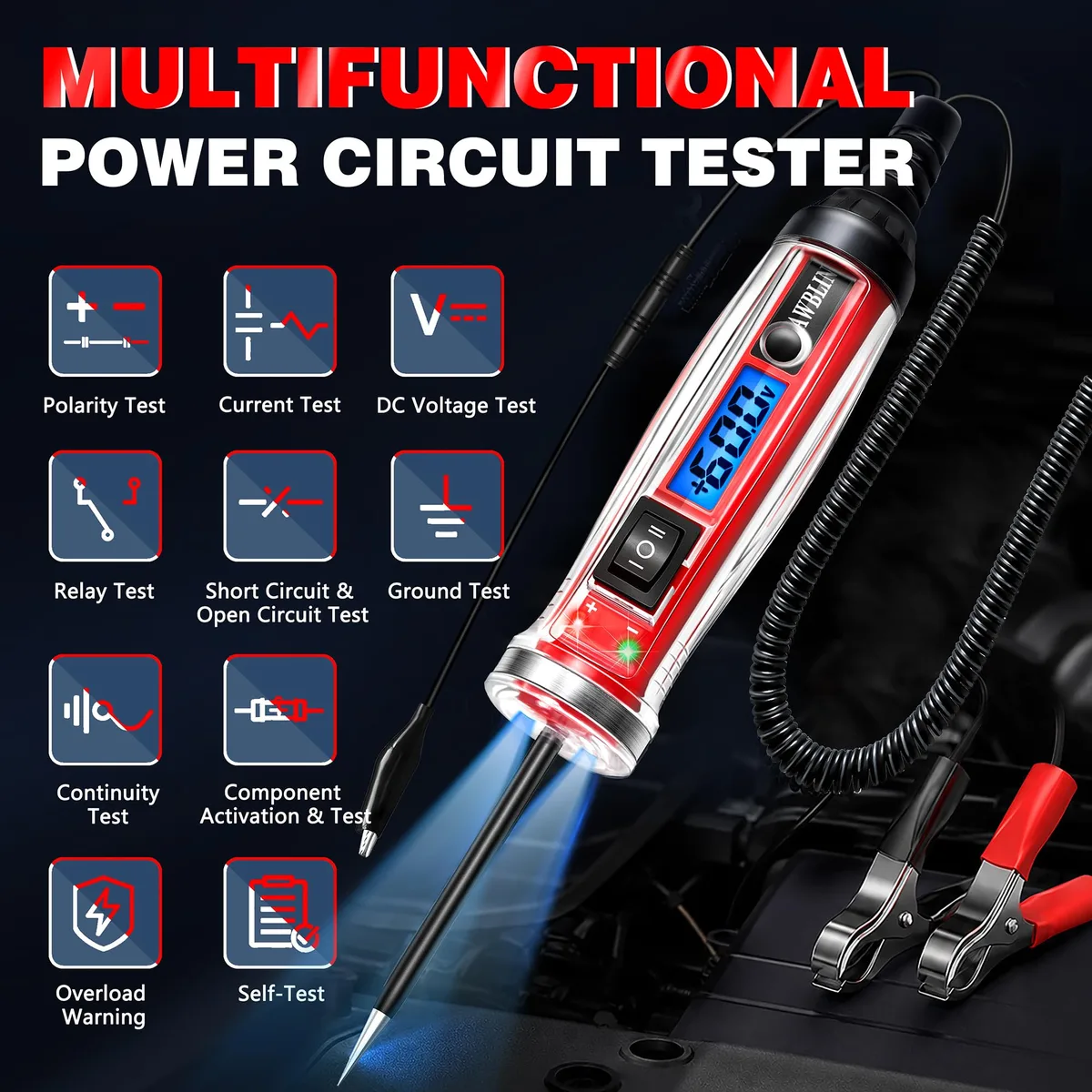

  • Tests voltage, polarity, continuity and components with one probe
  • Switches between voltage and current modes at the push of a button
  • Backlit LCD with red-green LEDs shows readings and polarity clearly
  • Built-in flashlight activates when clamps connect to battery
  • Powered by the vehicle battery across a 5-36VDC supply range

Multifunction Automotive Circuit Tester

The AWBLIN 822 combines voltage, current, polarity, continuity and component activation in one probe. It draws power from the vehicle battery so no separate cells are required. Technicians and DIY owners can diagnose lighting, ignition, sensor and grounding faults without swapping tools.

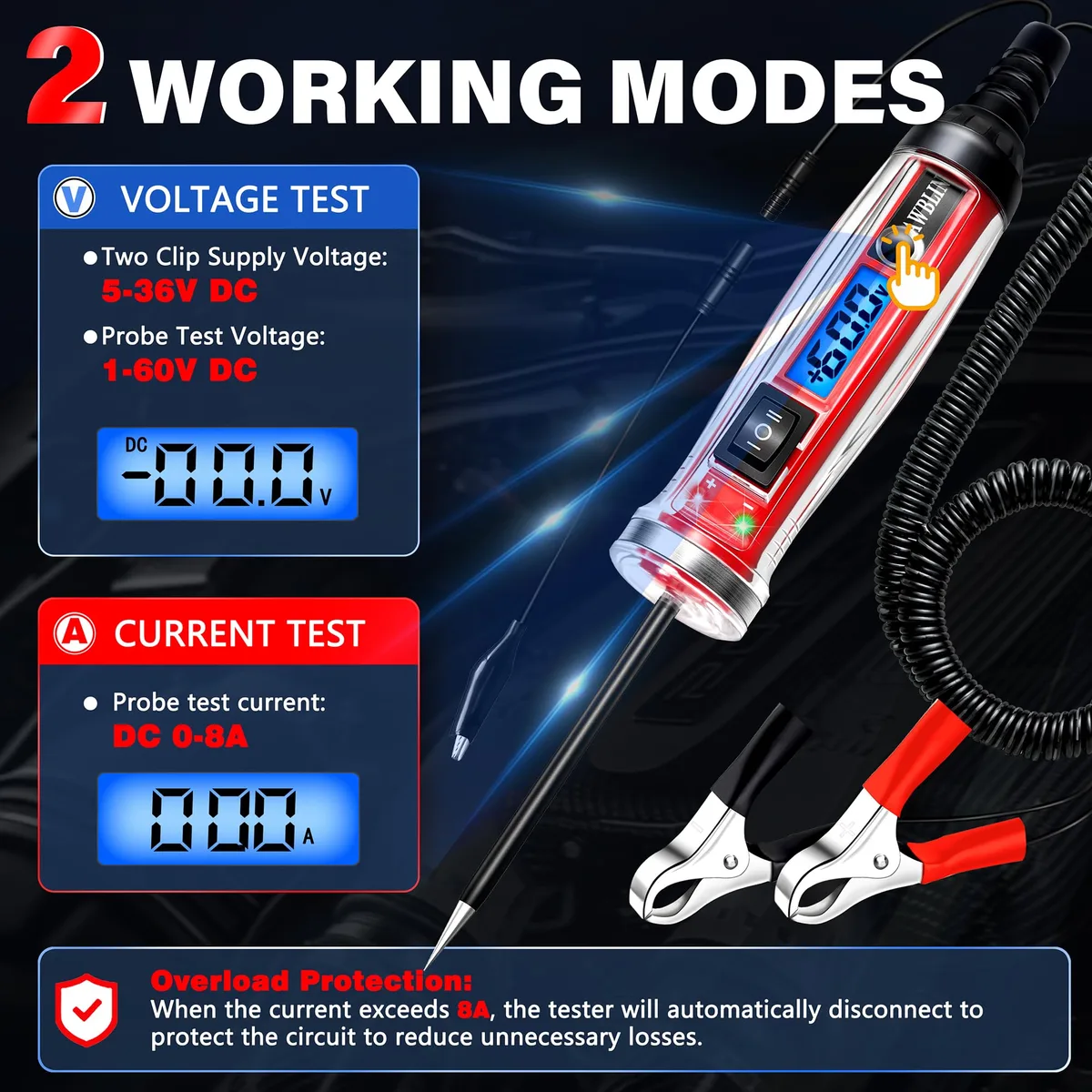

Readable Display with Dual Mode Operation

A backlit LCD shows values at 0.1V and 0.1A resolution while red and green LEDs indicate polarity at a glance. Supply voltage spans 5-36VDC, probe test voltage reaches 60VDC and current measurement covers 0-8A. A small button toggles between voltage and current modes instantly.

Replaces Separate Test Lights and Multimeters

The integrated flashlight illuminates dark engine bays when the alligator clips are connected. Overload alarm protects the probe during fault finding. Buyers who need oscilloscope-level waveform capture or wireless data logging will require additional equipment.

Highlights

  • Tests voltage, polarity, continuity and components with one probe
  • Switches between voltage and current modes at the push of a button
  • Backlit LCD with red-green LEDs shows readings and polarity clearly
  • Built-in flashlight activates when clamps connect to battery
  • Powered by the vehicle battery across a 5-36VDC supply range

Specifications

BrandAWBLIN
Featuresautomotive circuit tester, Meets Unspecified Safety and Functionality Standards, Battery Powered, false
Sports Team1 Piece
TypeVoltmeter, Ammeter

Questions about this item

How do I install the AWBLIN 822 and what step do people often miss?

Clamp the two alligator clips to the vehicle battery positive and negative terminals to power the tester; the step often missed is pressing the small black round button to switch from default voltage mode to current mode when measuring amperage.

What maintenance or replacement will the AWBLIN 822 need later?

No internal battery exists to replace; keep the probe tip and alligator clips clean and free of corrosion, and inspect the cable insulation periodically for cracks or wear.

What limit appears first during sustained use of the AWBLIN 822?

The probe test current limit of 8 A DC will be reached before the 60 V DC voltage limit or the 36 V DC supply limit during prolonged high-current testing.
