Avocor AVE-8650 86" 4K touchscreen commercial display
An 86-inch 4K touchscreen display with 400 nits brightness, 1200:1 contrast and optically bonded anti-glare glass for commercial signage and collaboration
- Screen Size86"
- TouchscreenTouchscreen
- Native Resolution3840 x 2160 (4K)
- Brightness400 nits Brightness
- Contrast Ratio (Typical)1200:1
- Crisp 4K detail from 3840 x 2160 native resolution
- Responsive collaboration via zero parallax optically bonded glass
- Versatile connectivity with three HDMI 2.0 ports and USB-C
- Wide 178 degree viewing angles for clear visibility
- Built-in 15 watt stereo speakers for audio playback

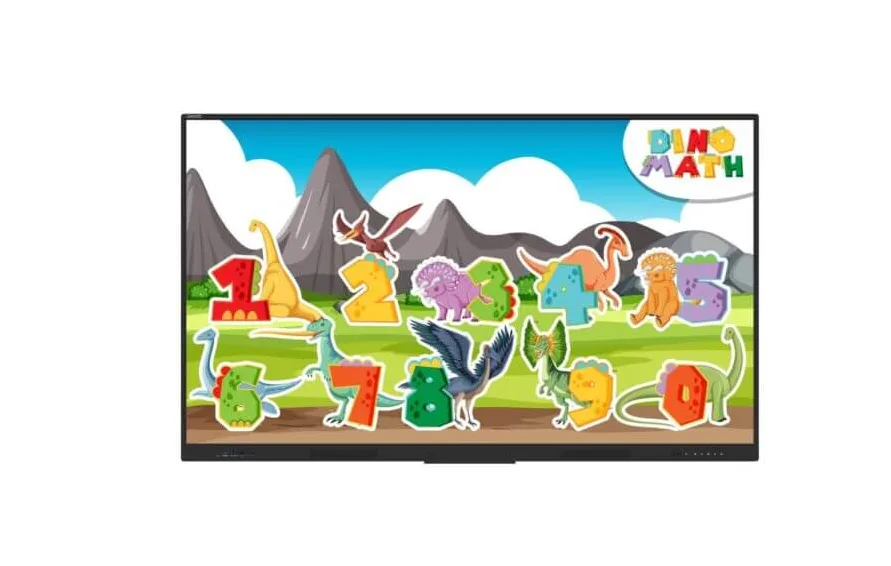

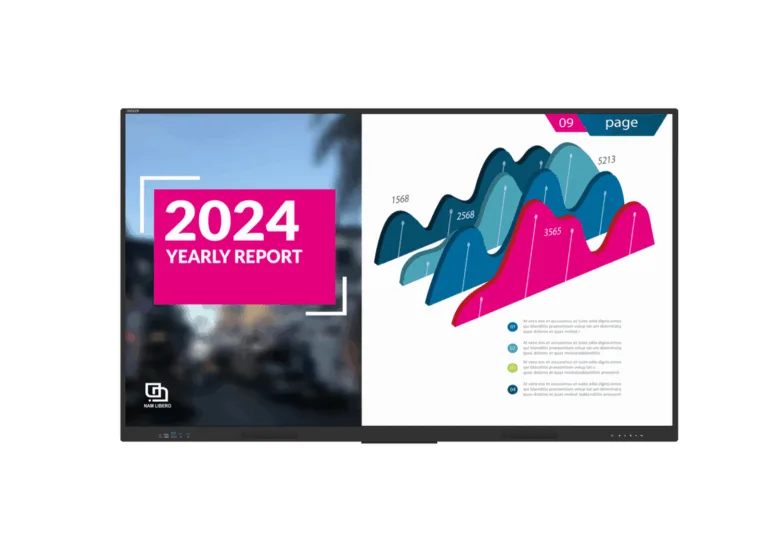

86-inch 4K commercial touchscreen
The Avocor AVE-8650 is an 86-inch flat-panel display with a 3840 x 2160 native resolution and optically bonded glass that removes parallax. Direct LED backlighting delivers 400 nits brightness and a 1200:1 static contrast ratio. Integrated UiQ Smart Touch interface and FUSE management software support interactive presentations and remote device control in meeting rooms or signage installations.
Check power, mounting
The unit draws up to 460 W from a 100-240 V AC supply and weighs 65.6 kg, so verify that the circuit and the mounting surface can handle the load. A VESA 800 x 600 mm pattern is required for wall or stand attachment. Ensure your source devices can output 4K at 60 Hz over HDMI 2.0 or DisplayPort 1.2 and that any USB-C host supports the needed power-delivery profile for the front or side ports.
Optically bonded glass
Zero-parallax bonding keeps touch accuracy consistent across the 178-degree viewing angles while the anti-glare and anti-fingerprint coating reduces maintenance. Front-facing guest ports include USB-C with 65 W power delivery, HDMI 2.0 and USB-A hub connections for quick laptop access. Side panels add two more HDMI 2.0 inputs, DisplayPort 1.2, a second USB-C with 15 W power delivery, RS-232, dual Ethernet and audio outputs for permanent room integration.
Highlights
- Crisp 4K detail from 3840 x 2160 native resolution
- Responsive collaboration via zero parallax optically bonded glass
- Versatile connectivity with three HDMI 2.0 ports and USB-C
- Wide 178 degree viewing angles for clear visibility
- Built-in 15 watt stereo speakers for audio playback
Specifications
| Brand | Avocor |
|---|---|
| Series | E Series |
| Model | AVE-8650 |
| Part Number | AVE-8650 |
| Screen Size | 86" |
| Touchscreen | Touchscreen |
| Native Resolution | 3840 x 2160 (4K) |
| Brightness | 400 nits Brightness |
| Contrast Ratio (Typical) | 1200:1 |
| Shipping weight | 65.32 kg |
| Package size | 1981 × 1194 × 229 mm |
Questions about this item
What comes in the box with the Avocor AVE-8650 and do I need to buy any cables or mounts separately?
The display includes the 86-inch panel with optically bonded glass, integrated 2 x 15W speakers and the UiQ smart touch interface. You will need to source a VESA 800 x 600 mm mount or stand and any HDMI, DisplayPort or USB-C cables required for your sources.
Which version of the AVE-8650 should I choose for a meeting room that needs 65 W laptop charging and multiple HDMI sources?
There is a single AVE-8650 model. It provides three HDMI 2.0 ports, one DisplayPort 1.2, a front USB-C with 65 W power delivery and a side USB-C with 15 W power delivery, covering both charging and multi-source needs.
How does the 400 nits brightness and 1200:1 contrast perform in a brightly lit open-plan office?
At 400 cd/m² and a 1200:1 static contrast ratio the panel remains readable under typical office lighting, while the anti-glare and anti-fingerprint glass reduces reflections and smudges during touch use.
