Avocent
Avocent SV340H-001 4-port dual-head HDMI KVM switch
Controls four computers from one keyboard, mouse and dual HDMI monitors with 4K 30 Hz video, managed copy-paste, front USB 3.0 ports and independent audio switching
- TypeHDMI, USB
- Console ConnectorsUSB Type-A
- Computer Connections4 Ports
- Monitor Connections4 Ports
- Video ResolutionUHD 4K - 3840X2160 pixels @ 30 Hz (via DVI to HDMI cable) DV
- PC SelectionPush Buttons
- Controls four computers from one keyboard, mouse and dual HDMI monitors
- UHD 4K at 30 Hz and DVI dual-link at 60 Hz for sharp visuals
- Managed copy-and-paste moves text and files between connected systems
- Independent audio and USB 3.0 switching keeps peripherals active while switching PCs
- Zero-delay switching via mouse and keyboard emulation for instant response
Four-computer dual-head KVM

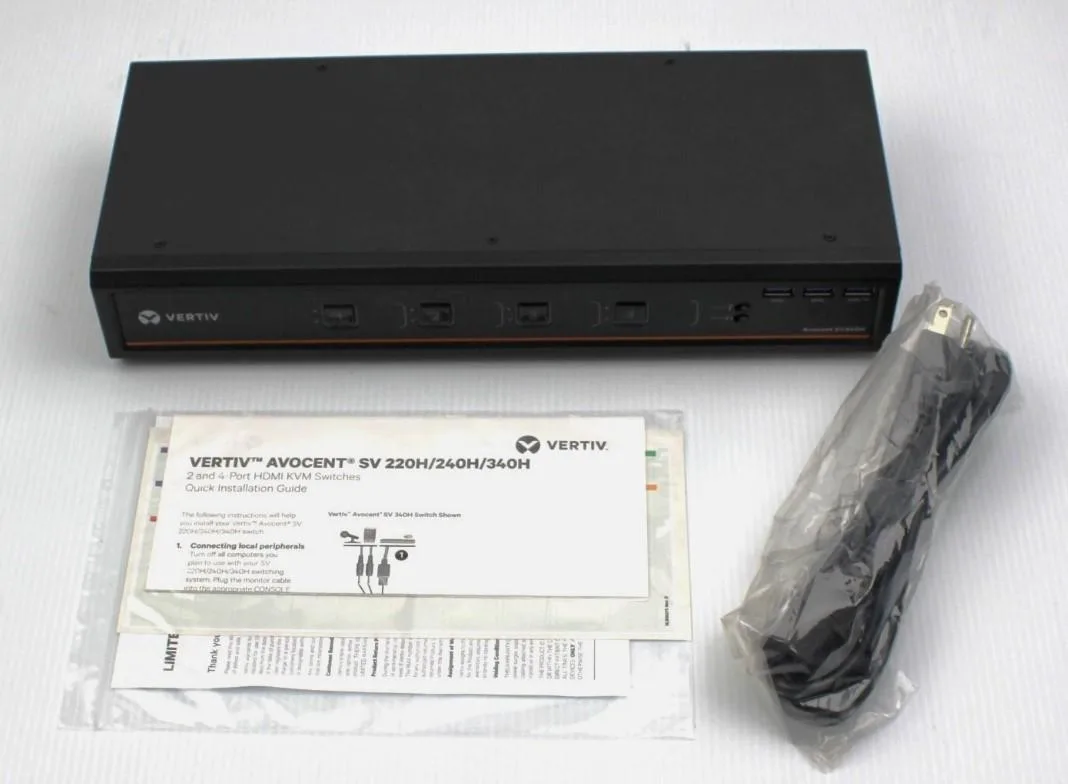

The Avocent SV340H-001 lets one operator command four separate computers from a single keyboard, mouse and two HDMI monitors. It is built for desk-bound workflows where frequent context switching between isolated systems slows productivity. Front-panel USB 3.0 ports add shared peripheral access and device charging without extra hubs.
Upgrade from single-head or two-port units
Moving from a single-monitor KVM or a two-port switch adds a second display and doubles the number of managed computers in one step. The jump is worth it when daily tasks span four distinct machines and require simultaneous visibility across dual 4K outputs at 30 Hz or dual-link DVI at 60 Hz. Audio and USB streams can stay locked to one system while video focus shifts to another.
Desktop integration and cabling

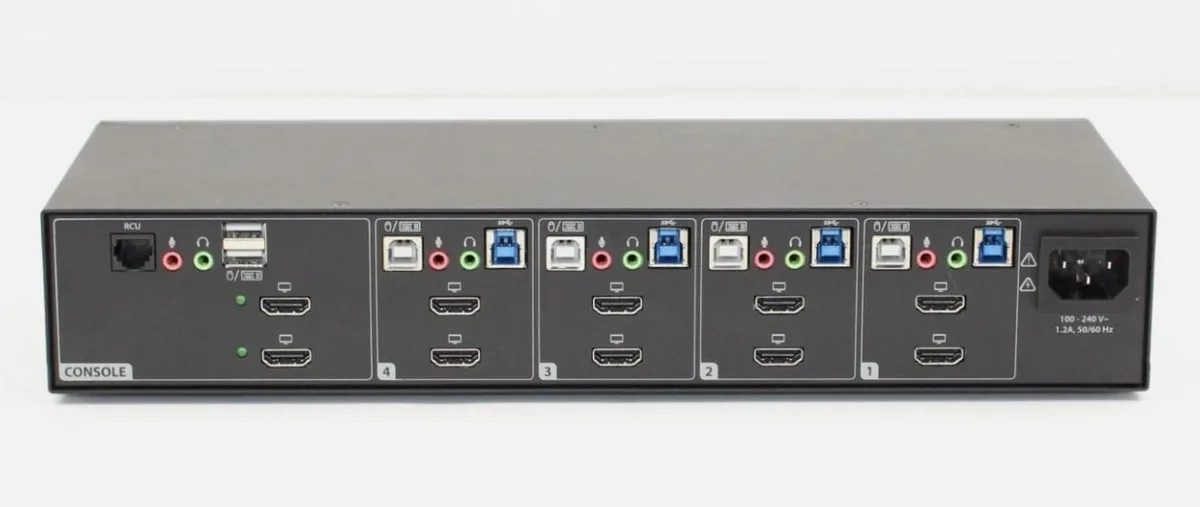

The unit measures 2.20 by 13.70 by 5.00 inches and weighs 3.70 lbs, fitting a standard desk footprint with an internal 35 W supply that accepts 100 to 240 V AC. Each computer needs its own HDMI and USB cables to the rear ports, while the console side uses two HDMI 1.4 inputs and a USB Type-A connection. Operating range spans 0 to 40 °C with humidity up to 80 percent non-condensing.
Highlights
- Controls four computers from one keyboard, mouse and dual HDMI monitors
- UHD 4K at 30 Hz and DVI dual-link at 60 Hz for sharp visuals
- Managed copy-and-paste moves text and files between connected systems
- Independent audio and USB 3.0 switching keeps peripherals active while switching PCs
- Zero-delay switching via mouse and keyboard emulation for instant response
Specifications
| Brand | Avocent |
|---|---|
| Model | SV340H-001 |
| Type | HDMI, USB |
| Console Connectors | USB Type-A |
| Computer Connections | 4 Ports |
| Monitor Connections | 4 Ports |
| Video Resolution | UHD 4K - 3840X2160 pixels @ 30 Hz (via DVI to HDMI cable) DVI dual-link - 2560X1600 pixels @ 60 Hz (via DVI cable) VGA - 2048X1536 pixels |
| PC Selection | Push Buttons |
| Monitors Supported | 2 x HDMI 1.4 |
| Temperature | Operating Temperature: 32° to 104° F; 0° to 40° C Storage Temperature: "-4° to 140° F; -20° to 60° C" |
| Humidity | 0-80% RH, non-condensing |
| Audio Features | with Audio |
| Power Features | Power Requirements: 35W Max Internal AC Input Voltage: 100 to 240V AC |
| USB Features | with USB support |
| Features | Advanced video support for resolutions up to UHD 4K assures image quality is highly accurate and video plays at the highest definition possible. Managed copy and paste allows content to be copied from one system to another. Copy and paste can be managed with built-in controls to specify what can be copied, such as allowing a user to copy numbers only in a specific format. Mobile high-definition link allows media contained on mobile devices to be viewed on connected HDMI monitors. Independent audio and USB switching lets users freeze audio and USB 3.0 peripherals while simultaneously |
| Dimensions | 2.20" x 13.70" x 5.00" |
| Weight | 3.70 lbs. |
Questions about this item
How deep is the desktop KVM switch and will it fit on a standard shelf?
The unit measures 13.70 inches deep by 5.00 inches wide and 2.20 inches high, so it fits on most standard shelves.
Do I need to install any drivers or software to switch between the four connected computers?
No driver installation is required; switching is done via the front-panel push buttons and the switch emulates keyboard and mouse for zero-delay transitions.
Are the front USB 3.0 ports user-replaceable if one becomes damaged?
The three front-facing USB 3.0 ports are integrated into the chassis and are not designed as user-replaceable modules.
