Avocent

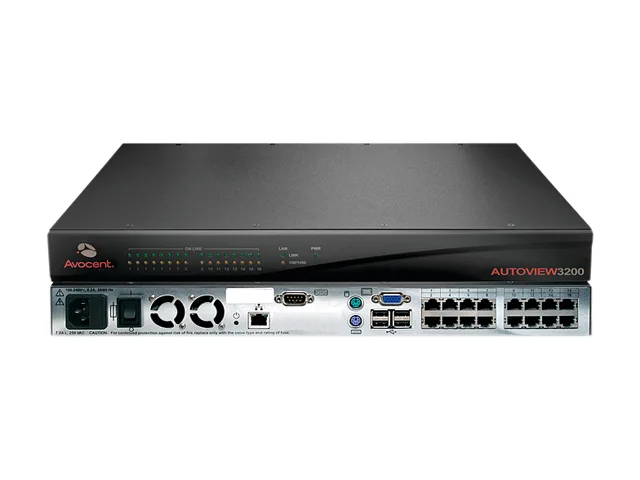

Avocent AV3200-001 AutoView 3200 16-port KVM switch
16-port RJ-45 KVM switch manages sixteen computers from one local and two remote consoles up to 1600 x 1200 resolution
- TypeRJ-45
- PC Connectors16 x RJ-45 Keyboard/Mouse/Video
- Console Connectors1 x 6-pin mini-DIN (PS/2) Keyboard Local 2 x RJ-45 Keyboard/
- Computer Connections16 Ports
- Monitor Connections3 Ports
- Video Resolution1600 x 1200 Local User 1280 x 1024 @ 75 Hz Remote User 640 x
- Control 16 servers from one console
- Local video up to 1600 x 1200 resolution
- Remote access at 1280 x 1024 @ 75 Hz
- Dual remote users supported simultaneously
- Worldwide 100–240 V AC power input
16-port RJ-45 KVM for server management
The Avocent AV3200-001 AutoView 3200 is a new 16-port digital KVM switch designed for IT administrators managing multiple servers from a single workstation. It connects to sixteen computers through RJ-45 keyboard, mouse and video ports. The unit supports one local user and two remote users simultaneously.
Suits admins needing 16 RJ-45 server links
This switch suits environments where sixteen servers use RJ-45 KVM connections and dual remote access is required. It is not for buyers who need USB or PS/2 computer ports, digital video outputs such as DVI or HDMI, or support for more than sixteen connected systems.
1600 x 1200 local video resolution
The local console delivers a maximum video resolution of 1600 x 1200, while remote sessions reach 1280 x 1024 at 75 Hz and the local fallback mode runs at 640 x 480 at 60 Hz. This resolution ceiling determines whether the switch matches your monitor and server output requirements.
Highlights
- Control 16 servers from one console
- Local video up to 1600 x 1200 resolution
- Remote access at 1280 x 1024 @ 75 Hz
- Dual remote users supported simultaneously
- Worldwide 100–240 V AC power input
Specifications
| Brand | Avocent |
|---|---|
| Model | AV3200-001 |
| Type | RJ-45 |
| PC Connectors | 16 x RJ-45 Keyboard/Mouse/Video |
| Console Connectors | 1 x 6-pin mini-DIN (PS/2) Keyboard Local 2 x RJ-45 Keyboard/Mouse/Video Remote |
| Computer Connections | 16 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | 1600 x 1200 Local User 1280 x 1024 @ 75 Hz Remote User 640 x 480 @ 60 Hz Local User |
| Monitors Supported | VGA, SVGA, XGA, XGA II |
| Power Features | Input Voltage: 100 V AC to 240 V AC Power Supply |
| Features | Number of PS/2 Ports: 2 Number of Computers Supported: 16 Number of Local Users Supported: 1 Number of Remote Users Supported: 2 Computer Ports: 16 x RJ-45 Keyboard/Mouse/Video Other Ports: 1 x 9-pin DB-9 Male RS-232 Management 4 x Type A User/Console Ports: 1 x 6-pin mini-DIN (PS/2) Keyboard Local 1 x 6-pin mini-DIN (PS/2) Mouse Local 1 x 15-pin HD-15 Video Local 2 x RJ-45 Keyboard/Mouse/Video Remote |
| Dimensions | 1.72" x 17.00" x 11.00" (H x W x D) |
| Weight | 7.30 lbs. |
| Shipping weight | 6.35 kg |
| Package size | 511 × 356 × 23 mm |
Questions about this item
Which cables do I need to connect the 16 servers to the 16 RJ-45 computer ports on this KVM?
Each server requires a compatible KVM cable assembly that terminates in a single RJ-45 plug carrying keyboard, mouse and video signals.
Can I keep my PS/2 keyboard and mouse for the local console while using this switch?
Yes, the local console provides a 6-pin mini-DIN keyboard port and a 6-pin mini-DIN mouse port for direct PS/2 peripheral connection.
What on-screen indication confirms the remote session is running at the specified 1280 x 1024 @ 75 Hz?
The remote user interface displays the active resolution and refresh rate; verify it reads 1280 x 1024 at 75 Hz in the on-screen display.
