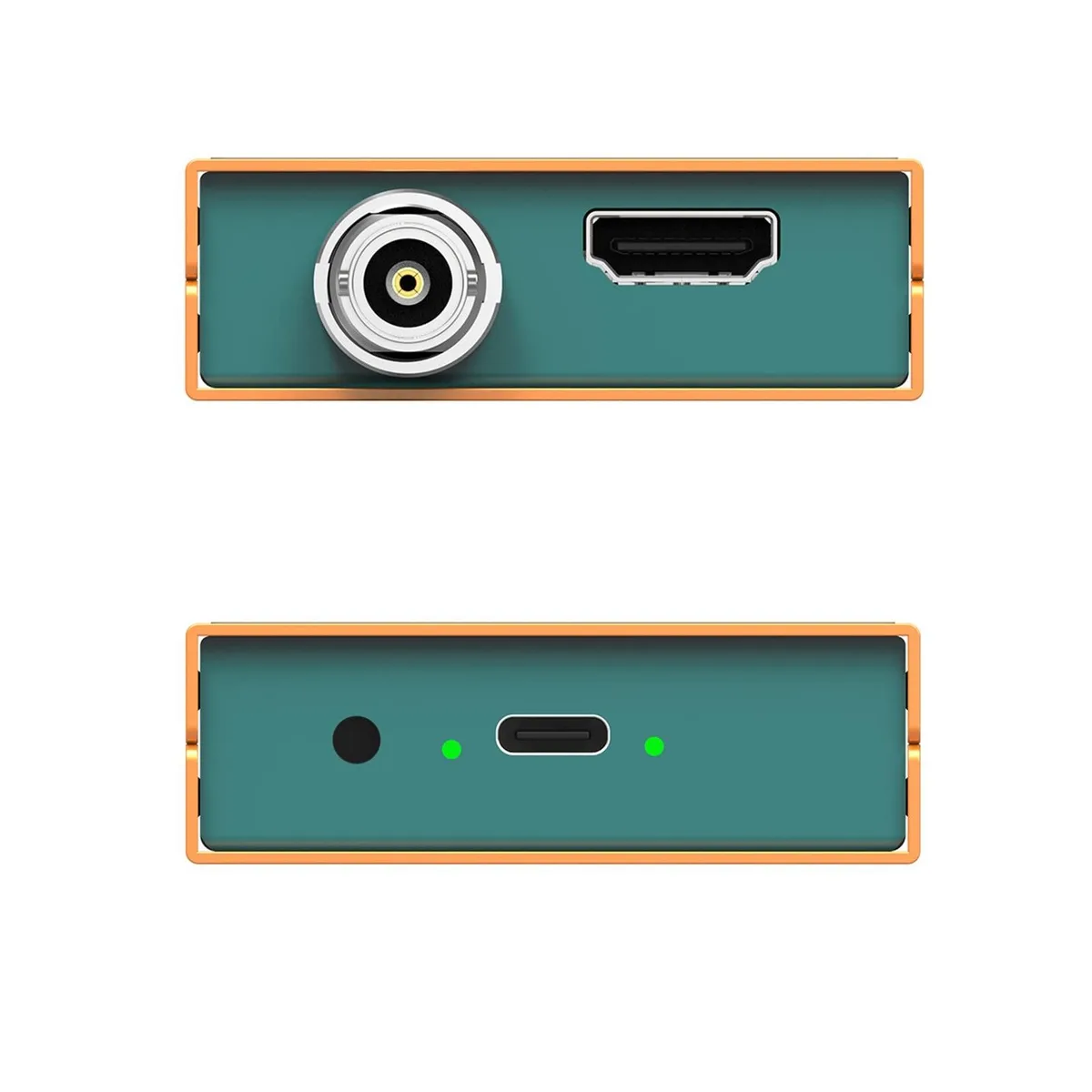

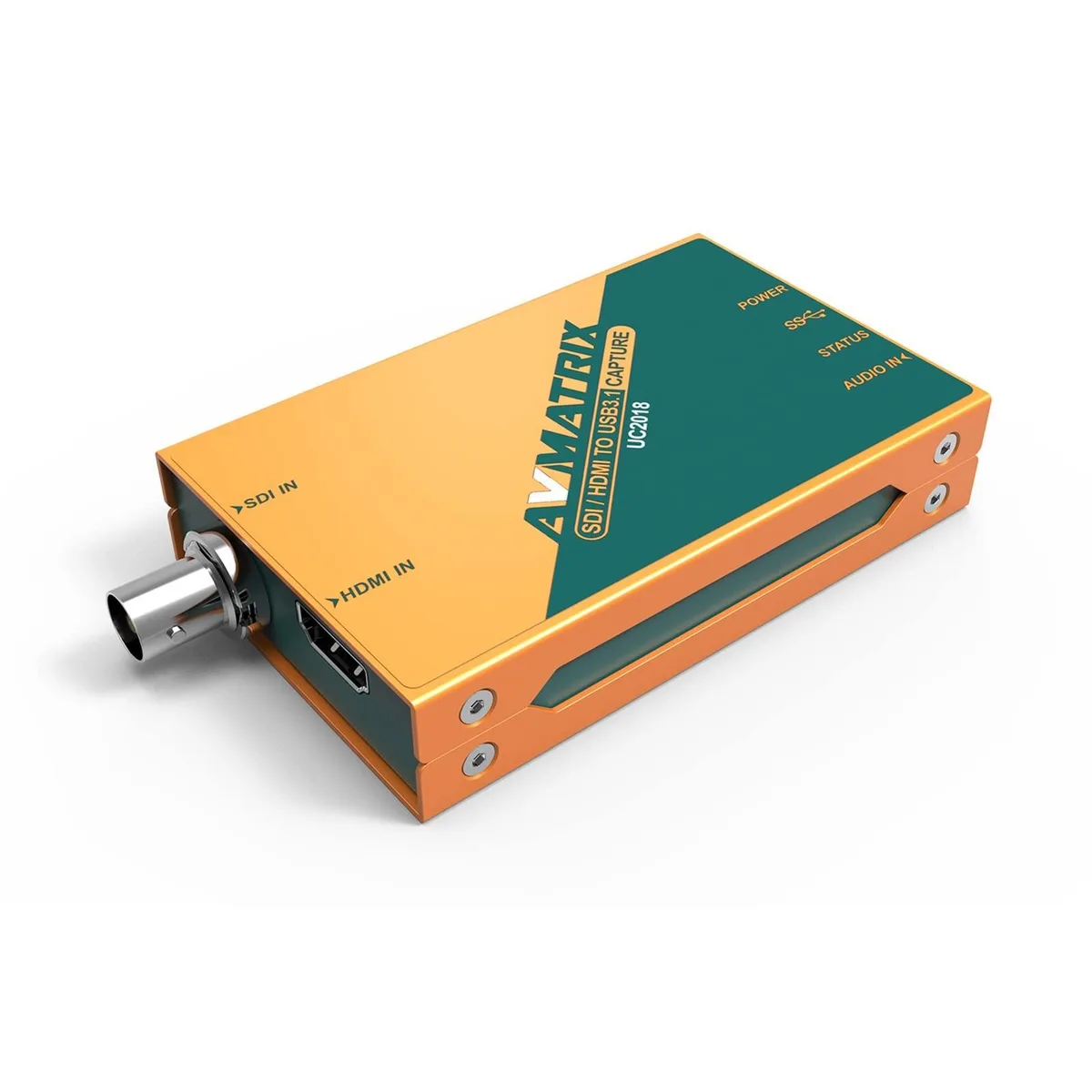

Small rectangular capture card with HDMI and SDI ports plus USB-C cable

AVMatrix

AVMatrix UC2018 HDMI/SDI Video Capture Card 2 in 1 accessory

SKU CH-5D0E-3GN7X

Captures uncompressed 1080p 60fps video from HDMI or SDI sources via USB 3.0 Type-C with automatic signal detection and driver-free operation on Windows, Linux and macOS

  • Uncompressed 1080p 60fps capture with automatic input detection
  • Driver-free operation on Windows 7/8/10/11, Linux 2.6.38+, macOS 10.8+
  • 2-channel 169bitpcm 478kHz 1536kbps audio recording included
  • USB 3.0 Type-C delivers zero-lag streaming performance
  • Dual SDI/HDMI input covers live streaming, conferencing, worship broadcasts

UC2018 HDMI/SDI Capture Card

The AVMatrix UC2018 is a compact 2-in-1 accessory that captures uncompressed video and audio from either an SDI or HDMI source. It connects to a host computer via USB 3.0 Type-C and requires no external power supply or driver installation.

Suited for streaming and conferencing

This device suits creators, educators and AV technicians who need plug-and-play 1080p 60 Hz capture for live streaming, webcasting, video conferencing or church broadcasts on Windows 7 through 11, Linux kernel 2.6.38 or later, or macOS 10.8 and above. It is not for workflows that require 4K resolution, multi-channel audio recording or internal PCIe installation.

Maximum 1080p 60 Hz uncompressed capture

The single specification that decides fit is the 1080p 60 Hz uncompressed video limit with 2-channel 169-bit 478 kHz 1536 kbps PCM audio over UVC/UAC. Any production needing higher resolution, higher frame rates or different audio formats must use another capture solution.

Highlights

  • Uncompressed 1080p 60fps capture with automatic input detection
  • Driver-free operation on Windows 7/8/10/11, Linux 2.6.38+, macOS 10.8+
  • 2-channel 169bitpcm 478kHz 1536kbps audio recording included
  • USB 3.0 Type-C delivers zero-lag streaming performance
  • Dual SDI/HDMI input covers live streaming, conferencing, worship broadcasts

Specifications

No published specifications for this item yet.

Questions about this item

What USB standard does the UC2018 use and what capture rate does it cap at?

It connects over USB 3.0 Type-C and captures uncompressed video up to 1080p at 60 fps.

What cables and ports are needed to mount the UC2018 in a typical setup?

The box includes a USB-A to USB-C 3.0 cable; you provide an HDMI or SDI source and plug the card into a free USB-A port.

How do you install the UC2018 and what step do users often miss?

No driver is required — plug the card in, select it as a UVC/UAC device in your streaming software, and ensure the input resolution is set to 1080p 60 Hz.
