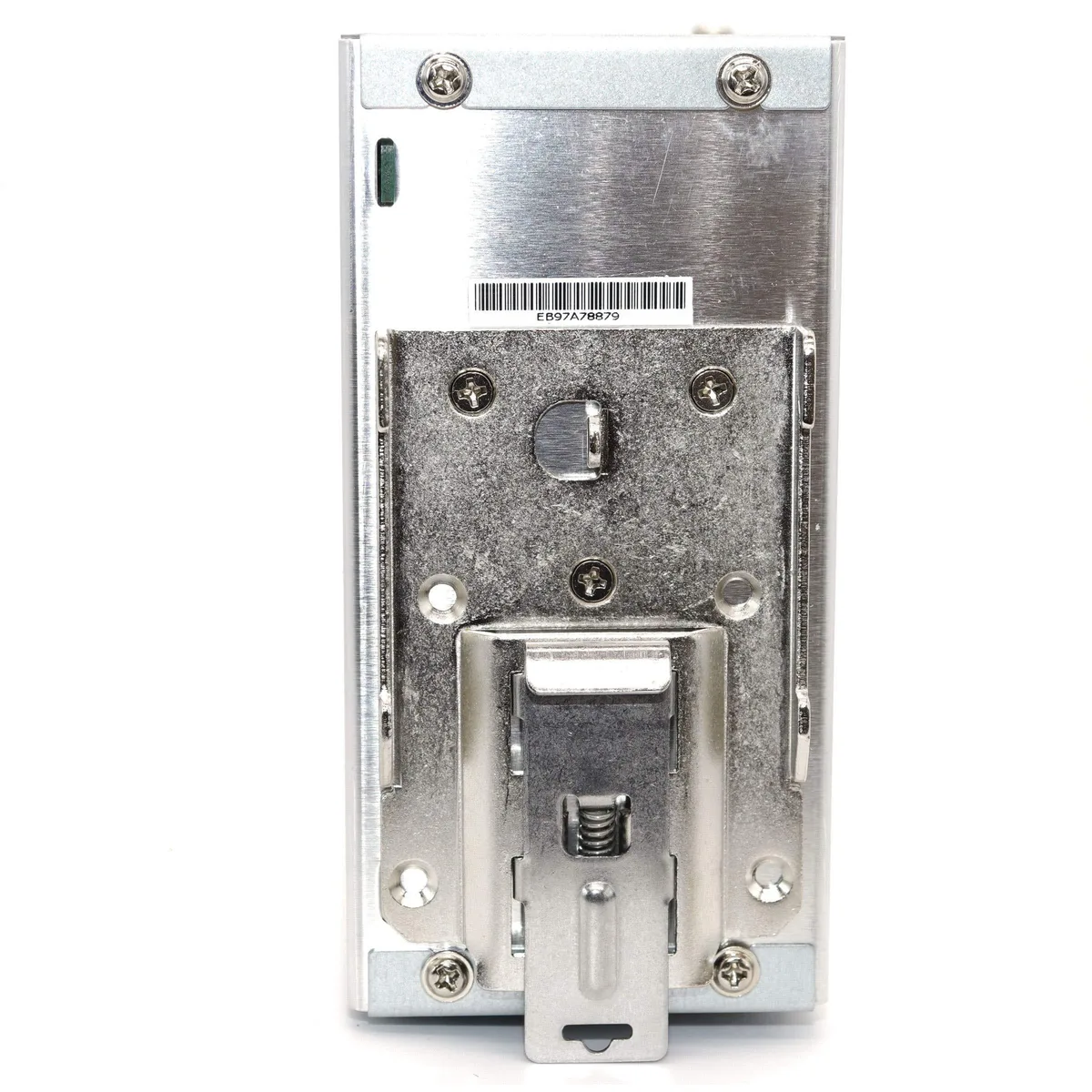

Silver DIN-rail power supply unit with screw terminals, 125 by 113 by 63 mm

Avantalk

Avantalk 2 in 1 accessory SDR-240-24 240W 24V 10A DIN rail

SKU CH-240B-KZ9XR

DIN-rail AC/DC supply delivers 24 V at 10 A with 94 % efficiency and built-in PFC

  • 240 W output powers demanding 24 V loads
  • 94 % typical efficiency reduces heat and energy waste
  • Active PFC with PF > 0.93 meets harmonic standards
  • Wide 88–264 VAC input suits global mains
  • DIN-rail mount fits standard industrial enclosures

DIN rail power supply for industrial control

The Avantalk SDR-240-24 is a regulated AC-to-DC converter that mounts on a standard DIN rail. It delivers a fixed 24 V output at up to 10 A for a continuous 240 W. The unit accepts a wide 88–264 VAC or 124–370 VDC input range with active PFC achieving a typical 0.93 power factor.

Suited for automation panels needing 24 VDC

This supply fits builders wiring industrial control equipment that requires a single 24 V rail up to 240 W. It is not for systems that need multiple output voltages, adjustable output, or medical-grade isolation. Buyers who need a power indicator LED or a different mounting style should look elsewhere.

240 W headroom with 94 % typical efficiency

At full load the converter runs at 94 % typical efficiency, so heat dissipation stays low inside the enclosure. Ripple and noise are specified at 100 mV maximum. The operating range spans –25 °C to 70 °C, giving ample margin for cabinet temperatures. Over-temperature, over-voltage, overload and short-circuit protections shut the unit down before damage occurs.

Highlights

  • 240 W output powers demanding 24 V loads
  • 94 % typical efficiency reduces heat and energy waste
  • Active PFC with PF > 0.93 meets harmonic standards
  • Wide 88–264 VAC input suits global mains
  • DIN-rail mount fits standard industrial enclosures

Specifications

No published specifications for this item yet.

Questions about this item

What AC input voltage range must my installation provide for the SDR-240-24 to operate?

The unit accepts 88 to 264 VAC or 124 to 370 VDC, covering most single-phase industrial and commercial supplies worldwide.

Can I keep my existing DIN rail and screw-terminal wiring when fitting this 240 W supply?

Yes, it mounts on standard DIN rail and uses screw terminal blocks for both input and output, so existing wiring can be reused without adapters.

How do I verify the supply is delivering a clean 24 V after installation?

Measure the output with a multimeter; you should see 24 VDC with ripple and noise below 100 mV and load regulation within 1 %.
