AUTYUE USBC201 USB-C KVM Switch 2-Port 8K 60Hz 10Gbps 100W PD
Connects two USB-C computers to one 8K 60 Hz display with 10 Gbps data and 100 W charging
- TypeUSB C Switch
- PC ConnectorsUSB C
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video ResolutionOur USB C splitter supports 8K@60Hz video to the USB-C or HD
- PC SelectionPush Buttons
- 8K at 60 Hz video on USB-C or HDMI displays
- 100 W reverse charging powers laptops while switching
- 10 Gbps USB 3.1 Gen2 data transfer between devices
- Bi-directional: two computers share one monitor or one computer drives two monitors
- Push-button switching with LED indicators in a 59 mm × 53 mm × 10 mm unit
Two-computer USB-C KVM

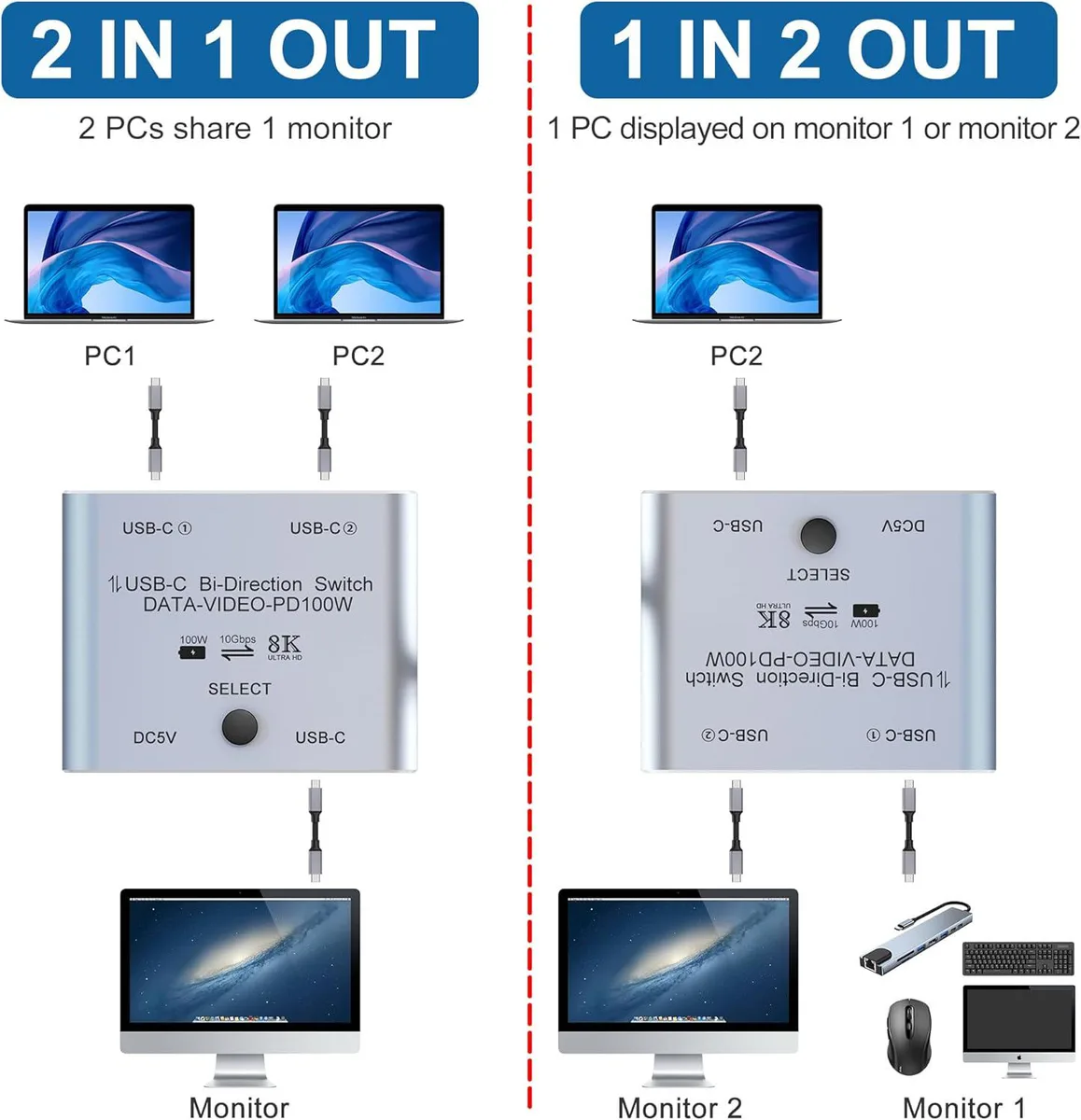

The AUTYUE USBC201 is a bi-directional USB-C switch that lets two USB-C computers share one monitor or one computer drive two monitors, though only one monitor is active at a time. It targets users who move a single display between a work laptop and a personal machine without unplugging cables.
8K 60 Hz video and 10 Gbps data
The switch passes 8K at 60 Hz, 4K at 144 Hz and 1080p at 165 Hz over USB-C while providing up to 10 Gbps USB 3.1 Gen 2 bandwidth for peripherals. PD 100 W reverse charging is available on either computer port when the connected monitor, cable and device all support fast charging.
Button switching with USB power cable
A push button on the 59 mm by 53 mm by 10 mm unit toggles the active source and LEDs show the current selection. The switch draws power from the included USB power cable, so no separate adapter is needed, but standard USB 3.1 Gen 2 cables must be supplied by the buyer.
Highlights
- 8K at 60 Hz video on USB-C or HDMI displays
- 100 W reverse charging powers laptops while switching
- 10 Gbps USB 3.1 Gen2 data transfer between devices
- Bi-directional: two computers share one monitor or one computer drives two monitors
- Push-button switching with LED indicators in a 59 mm × 53 mm × 10 mm unit
Specifications
| Model | USBC201 Switch |
|---|---|
| Type | USB C Switch |
| PC Connectors | USB C |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | Our USB C splitter supports 8K@60Hz video to the USB-C or HDMI monitor and ultra-wide screen output (3440*1440, etc.), backward compatible with 4K@120Hz/1080P@165Hz. |
| PC Selection | Push Buttons |
| Monitors Supported | USB C |
| LED Indicators | Yes |
| Power Features | Requires no additional power supply |
| USB Features | The USB C kvm switch supports transfer speeds of up to 10Gbps (USB3.1 Gen2), allowing you to transfer music, movies, or entire seasons of TV shows in seconds, and switching can be done at the touch of a button. |
| Application | This USB C switch allows 2 USB-C video sources to share 1 monitor or 1 video source to share 2 monitors. |
| Features | 8K Ultra HD USB C Switcher; PD100W Reverse Charging; 10Gbps Data Transfer; |
| Dimensions | 59mm*53mm*10mm |
| Package Contents | 1 x USB C Switch, 1 x USB Power Cable |
Questions about this item
What does the 8K 60 Hz rating mean when I connect this switch to my laptop and monitor?
The switch passes an 8K signal at 60 Hz from either connected computer to the display, and also handles 4K at 120 Hz or 1080p at 165 Hz for high-refresh gaming.
How does the USB 3.1 Gen 2 10 Gbps interface limit real-world file transfers?
The 10 Gbps ceiling applies to data moving through the switch, so large media files copy at near-native SSD speeds, but the host ports and cables must also support Gen 2 to reach that rate.
Will the 59 mm by 53 mm by 10 mm case fit behind my ultrawide monitor stand?
At 59 mm wide, 53 mm deep and only 10 mm tall, the unit tucks behind most monitor bases or mounts with the included power cable attached.
