AUTYUE
AUTYUE SW910 KVM Switch 2 Laptops 2 Monitors 4K@120Hz
A KVM switch docking station connects two laptops to dual HDMI monitors at 4K 120Hz with USB 3.2 10Gbps, Gigabit Ethernet and audio
- TypeKVM Switch 2 Laptops 2 Monitors
- PC ConnectorsUSB C in, HD-MI Out
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution4K@120Hz
- PC SelectionPush Buttons
- Controls two laptops with one keyboard and mouse
- Dual 4K 120Hz HDMI output on both monitors
- Supports extended desktop mode on Mac M1 to M4
- Switch via front buttons or IR remote
- Adds 10Gbps USB 3.2, Gigabit Ethernet, audio jack
Dual-laptop KVM dock

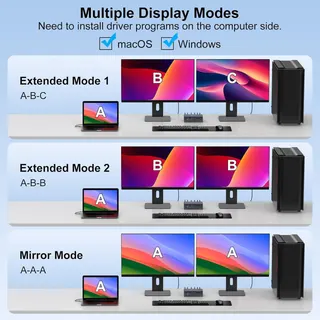

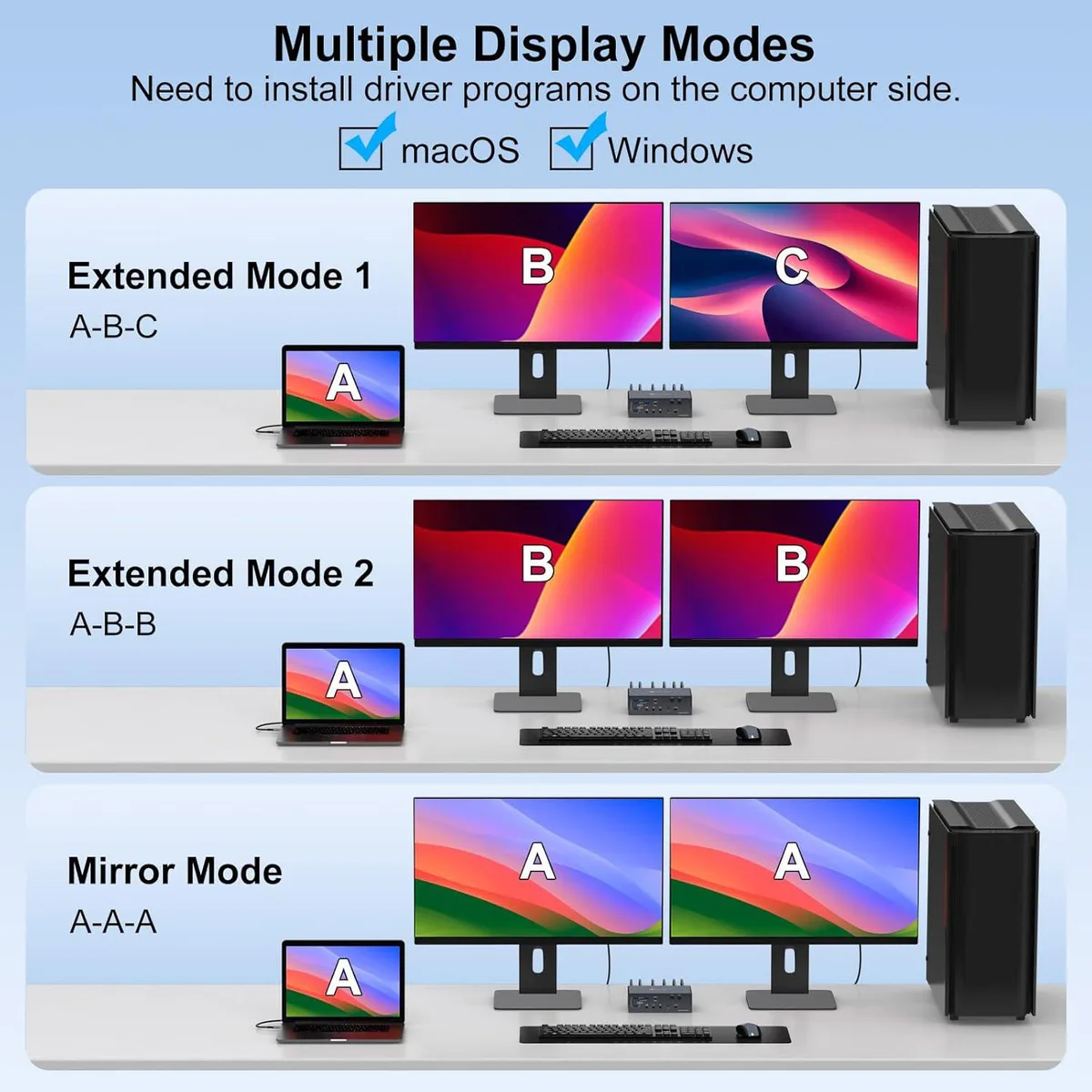

The AUTYUE SW910 connects two USB-C or Thunderbolt laptops to two HDMI monitors, letting a single keyboard, mouse and audio set control both machines. It mirrors or extends each desktop at up to 4K resolution and 120Hz refresh, with backward compatibility down to 720p. Driver installation is required for full operation.

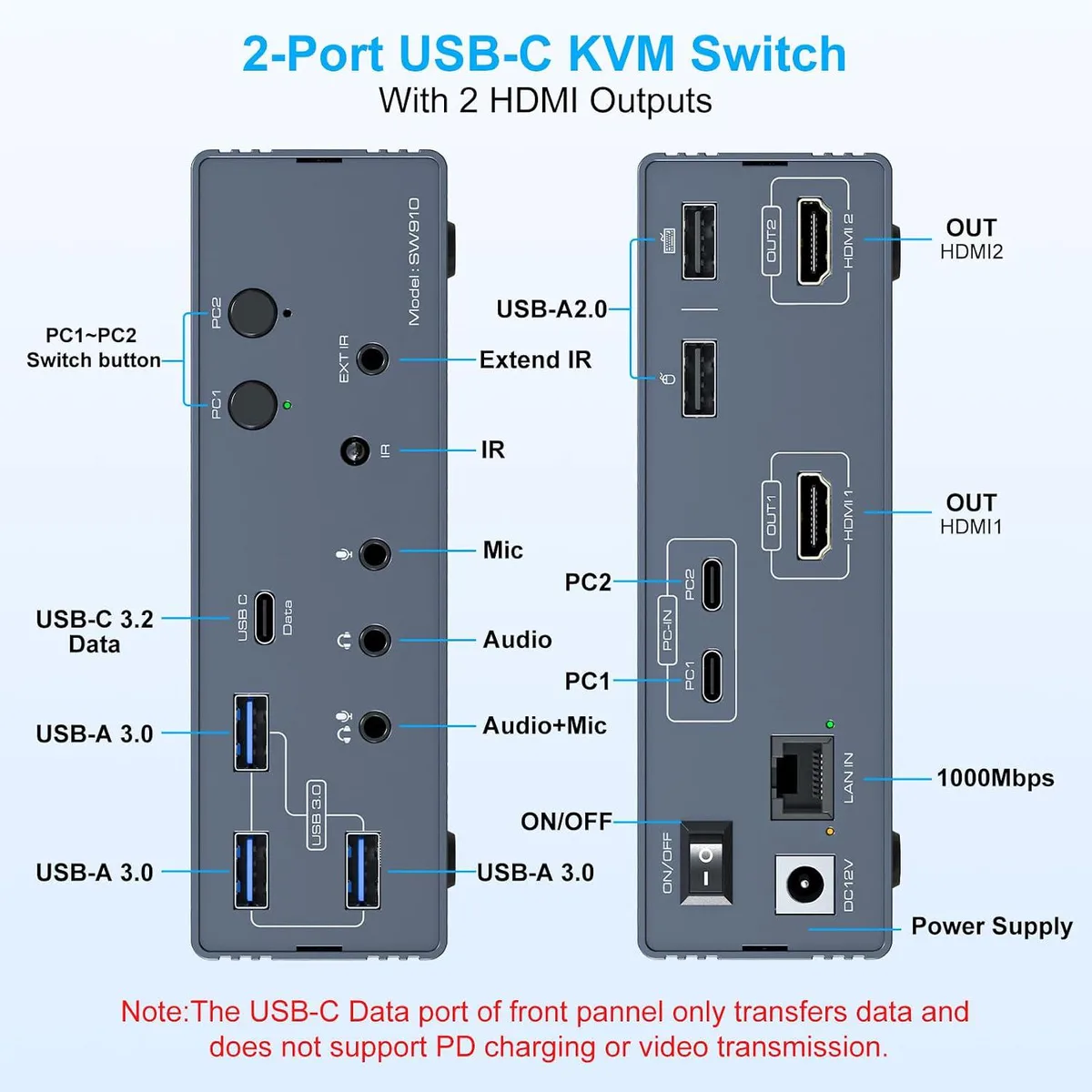

Front-panel switching and I/O
Push buttons on the unit or the included IR remote with extension cable select the active computer without hotkey support. The dock adds a USB 3.2 Gen 2 port at 10Gbps, additional USB 3.0 ports, gigabit Ethernet and a combined headphone and microphone jack, consolidating laptop connectivity in a 14.1 by 6.8 by 3.8 centimetre enclosure powered by a 12V adapter.
Thermals and power in use
The external 12V power adapter handles all downstream charging and peripheral loads, so the switch itself runs cool and silent with no internal fan. Typical operation adds only the adapter’s modest draw to the desk circuit while delivering stable 4K 120Hz video to both displays.
Highlights
- Controls two laptops with one keyboard and mouse
- Dual 4K 120Hz HDMI output on both monitors
- Supports extended desktop mode on Mac M1 to M4
- Switch via front buttons or IR remote
- Adds 10Gbps USB 3.2, Gigabit Ethernet, audio jack
Specifications
| Series | KVM Docking Station |
|---|---|
| Model | SW910 |
| Type | KVM Switch 2 Laptops 2 Monitors |
| PC Connectors | USB C in, HD-MI Out |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 4K@120Hz |
| PC Selection | Push Buttons |
| Monitors Supported | HDMI, HDMI |
| LED Indicators | Yes |
| Audio Features | Offers audio and microphone switching |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | with USB support |
| Application | This USB C KVM switch docking station mirrors or extends the screen output of two computers with USB 3.0 or Thunderbolt ports to two HD-MI monitors. |
| Dimensions | 14.1 x 6.8 x 3.8 centimetres |
| Weight | Equipped with a USB 3.2 port (10Gbps), USB 3.0 ports, Gigabit Ethernet and a combined audio/microphone jack, replaces all port ports of laptops for a tidy, professional server room configuration. |
| Package Contents | 1 x KVM Switch, 3 x USB Cable, 1 x IR Remote, 1 x IR extension cable, 1 x Power Adapter, 1 x User Manual |
Questions about this item
What video bandwidth does the USB-C MST interface cap at in practice?
The USB-C MST ports drive two HDMI monitors at 4K 120Hz (3840x2160@120Hz) and fall back to 4K@60Hz, 1080p@60Hz or 720p when cables or displays require it.
How much desk depth does the 14.1 x 6.8 cm footprint need, plus cable bend radius?
The unit measures 14.1 cm wide by 6.8 cm deep; allow roughly 20 cm total depth so the three included USB cables and two HDMI leads can bend without stress.
Which driver must be installed before the first switch, and where is the exact procedure?
A host-side driver is mandatory; follow the step-by-step screenshots in the supplied user manual to install it on each laptop before pressing PC1 or PC2.
