AUTYUE
AUTYUE SW906 Thunderbolt 4 KVM Switch 3 Laptops 3 Monitors 4K@60Hz
A Thunderbolt 4 KVM switch connects three laptops to three 4K@60Hz HDMI monitors, sharing one keyboard, mouse, 1G Ethernet, audio and USB 3.0/3.2 ports with push-button or remote switching
- TypeThunderbolt 4 KVM Switch Docking Station for 3 Monitors 3 La
- PC Connectors3 x USB C in, 3 HD-MI Out
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video Resolution4K@60Hz
- PC SelectionPush Buttons

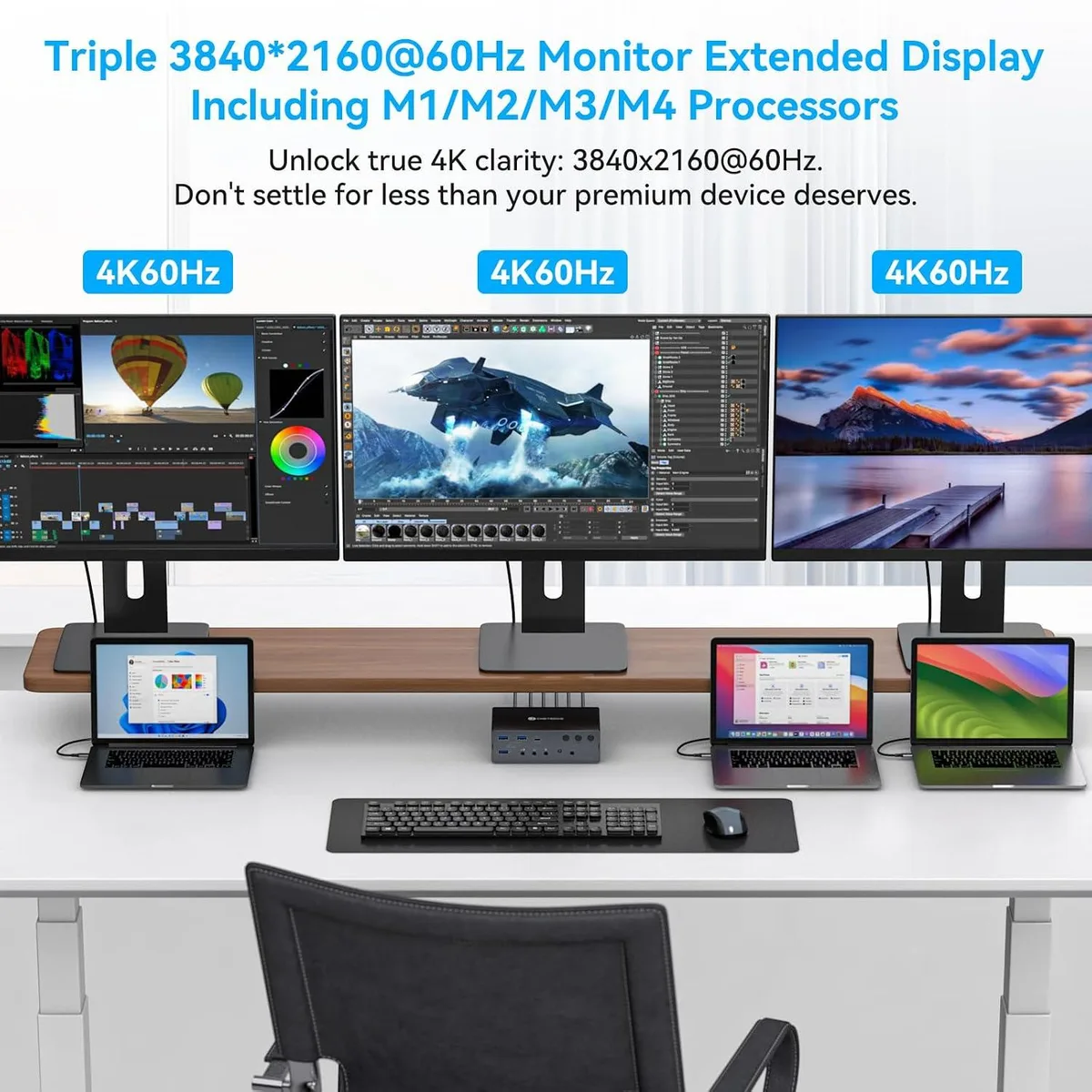

- Triple 4K 60 Hz extended display on Mac and PC via DisplayLink

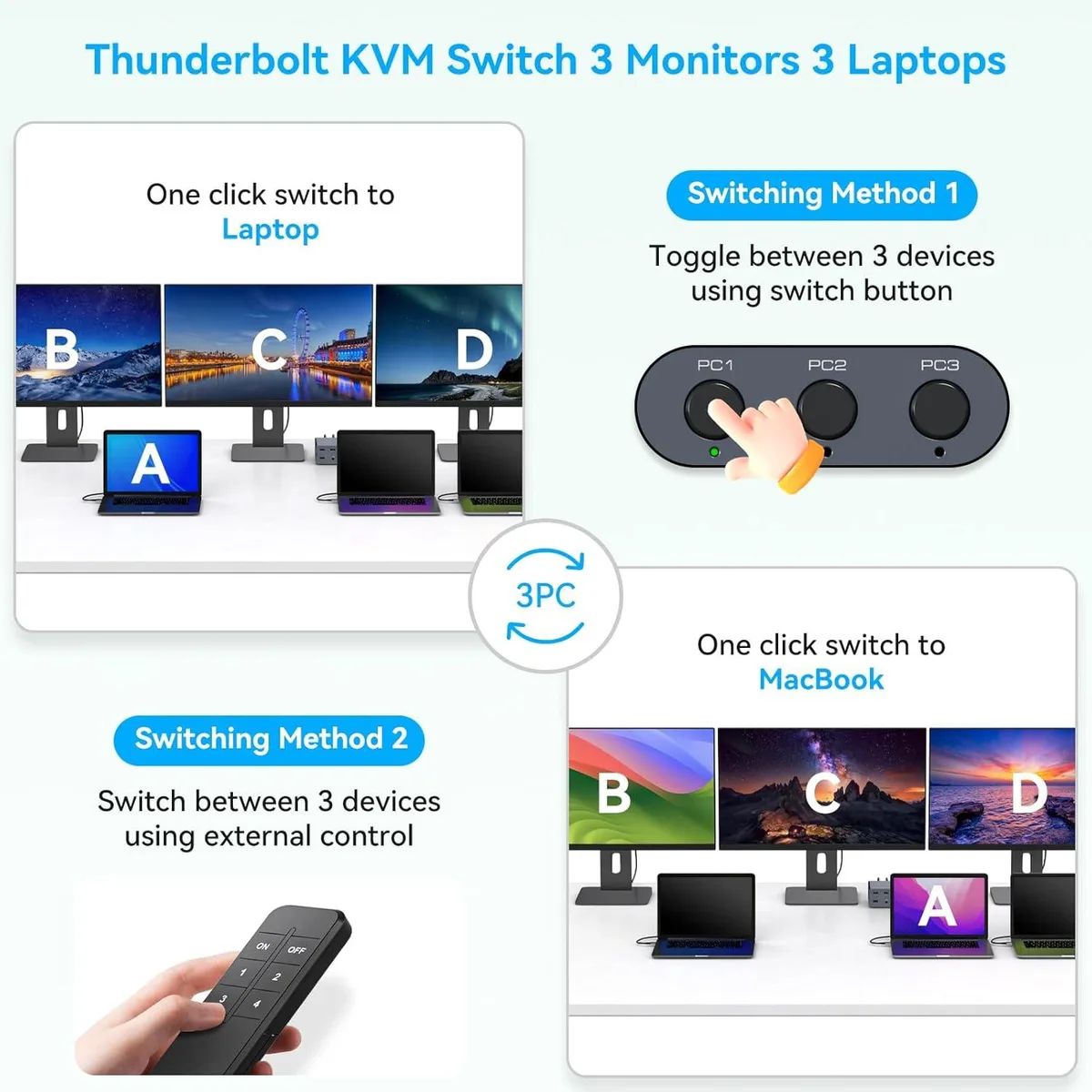

- Single keyboard and mouse control three laptops with front push buttons
- 10 Gbps USB C 3.2 plus three 5 Gbps USB A 3.0 ports and 1000 M Ethernet
- Works with macOS Windows Chrome OS Linux Android on USB 3.0 or USB C 3.2 devices
- Compact 5.55 by 3.74 by 1.77 inch hub includes IR remote and LED indicators
Triple 4K KVM for Three Laptops
The AUTYUE SW906 is a Thunderbolt 4 KVM switch docking station that lets three laptops or MacBooks share three 4K@60Hz HDMI monitors, a keyboard, a mouse, 1G Ethernet, audio and USB peripherals. It connects each computer through a single USB-C 3.2 cable and provides three HDMI outputs for extended desktop layouts on macOS, Windows, Chrome OS, Linux and Android. A 12V power adapter, IR remote and front-panel push buttons with LED indicators are included for immediate desktop deployment.
Ideal for Multi-System Workstations.
This switch suits professionals who run three separate computers and need simultaneous triple-monitor extended mode, including Mac users limited by native display outputs. It also fits labs or trading desks that share USB-A 3.0 devices, a 10Gbps USB-C 3.2 data port and combined audio/microphone jacks across all systems. Buyers who require keyboard hotkey switching, USB-C Power Delivery charging or video pass-through on the front USB-C port should consider other solutions, as those functions are not supported.
Single-Cable USB-C 3.2 Host Connection Decides Fit
Each laptop must supply a USB 3.0 or USB-C 3.2 Gen 2 port capable of DisplayLink video output; the CPU should be AMD 7-series or Intel i7-series or higher with 16GB video memory, and the DisplayLink driver must be installed before use. If a host lacks the required USB-C 3.2 bandwidth or driver support, triple 3840x2160@60Hz extended desktop will not operate. The front USB-C port carries data only at 10Gbps and delivers no charging or display signal.
Highlights
- Triple 4K 60 Hz extended display on Mac and PC via DisplayLink
- Single keyboard and mouse control three laptops with front push buttons
- 10 Gbps USB C 3.2 plus three 5 Gbps USB A 3.0 ports and 1000 M Ethernet
- Works with macOS Windows Chrome OS Linux Android on USB 3.0 or USB C 3.2 devices
- Compact 5.55 by 3.74 by 1.77 inch hub includes IR remote and LED indicators
Specifications
| Series | KVM Switch 3 Laptops 3 Monitors |
|---|---|
| Model | SW906 |
| Type | Thunderbolt 4 KVM Switch Docking Station for 3 Monitors 3 Laptops or Macbooks Triple 4K@60Hz HDMI Display |
| PC Connectors | 3 x USB C in, 3 HD-MI Out |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | 4K@60Hz |
| PC Selection | Push Buttons |
| Monitors Supported | HDMI, HDMI, HDMI |
| LED Indicators | Yes |
| Audio Features | Offers audio and microphone switching |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | with USB support |
| Application | Connect three laptops and three 4K@60Hz HDMI displays via the KVM Switches. Manage all devices with a single keyboard and mouse, making multitasking easy and organized. Eliminate the need for constant cable swapping, ensuring a seamless workflow. |
| Features | Features 1 x 10Gbps USB-C 3.2 port, 3 x 5Gbps USB-A 3.0 ports, and a 1000M Ethernet interface. Simultaneously connect external storage devices, printers, barcode scanners, and other USB devices. It also features dedicated audio and microphone ports, supporting both combined headsets and standalone audio devices, making it an all-in-one KVM docking station. |
| Dimensions | 5.55 x 3.74 x 1.77 inches |

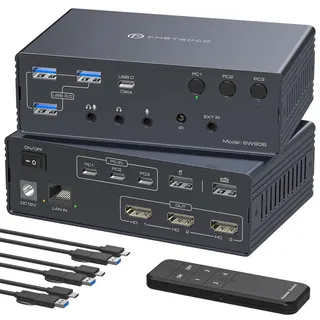

| Package Contents | 1 x KVM Docking station, 3 x USB C Cable, 1 x Power Adapter, 1 x IR Extension Cable, 1 x IR Remote, 1 x user manual |
Questions about this item
How much heat or fan noise does the SW906 produce when it runs continuously with three laptops and three 4K displays?
The unit has no built-in fan; it relies on passive cooling and stays cool to the touch during all-day operation with three 4K@60Hz monitors and three connected laptops.
What ports must my laptops already have to use the SW906 with three external monitors?
Each laptop needs a USB 3.0 or USB-C 3.2 port, a CPU of AMD 7-series or Intel i7-series or higher, and at least 16 GB of video memory; the DisplayLink driver must also be installed before use.
Will the SW906 work with my older USB-A 3.0 laptop and a legacy 1080p monitor?
Yes — the switch accepts USB 3.0 or USB-C 3.2 connections and drives HDMI displays at 4K@60Hz, so a USB-A 3.0 laptop and a 1080p screen will function, provided the CPU and video-memory requirements are met and the DisplayLink driver is installed.
