AUTYUE

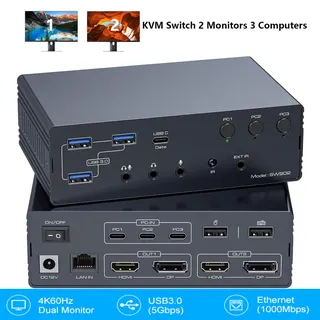

AUTYUE SW902 USB-C KVM Switch 3 Computers 2 Monitors 4K@60Hz
Connects three computers to two monitors at 4K@60Hz with USB 3.0 peripherals and audio switching via DisplayLink
- TypeUSB C KVM Switch 2 Monitors 3 Computers Docking Station
- PC ConnectorsUSB C in, HD-MI, Displayport Out
- Computer Connections3 Ports
- Monitor Connections2 Ports
- Video Resolution4K@60Hz
- PC SelectionPush Buttons
- Connect three computers to two monitors
- Dual 4K@60Hz video via HDMI and DisplayPort
- Switch systems with front push buttons
- Audio and microphone follow the active computer
- Works with Windows, macOS, Linux, Chrome OS and Android
Three-Computer KVM Docking Station
This KVM docking station connects three computers to two monitors while consolidating network, audio, webcam, keyboard, mouse and portable storage peripherals into a single desk setup. It is intended for users who switch between multiple laptops or desktops running Windows, macOS, Chrome OS, Linux or Android and want one shared monitor pair and accessory hub. DisplayLink driver installation is required on each host system for video output to function.
USB 3.0 Host Requirement
Each connected computer must provide a USB 3.0 or higher port; USB 2.0 ports will cause video stuttering and unreliable operation. The dock does not deliver power to host devices, so every laptop must remain connected to its own power adapter. High-quality cables compliant with DP 1.2 and HD-MI 2.0 standards, no longer than 3.3 feet, are needed for stable 4K@60Hz signalling.

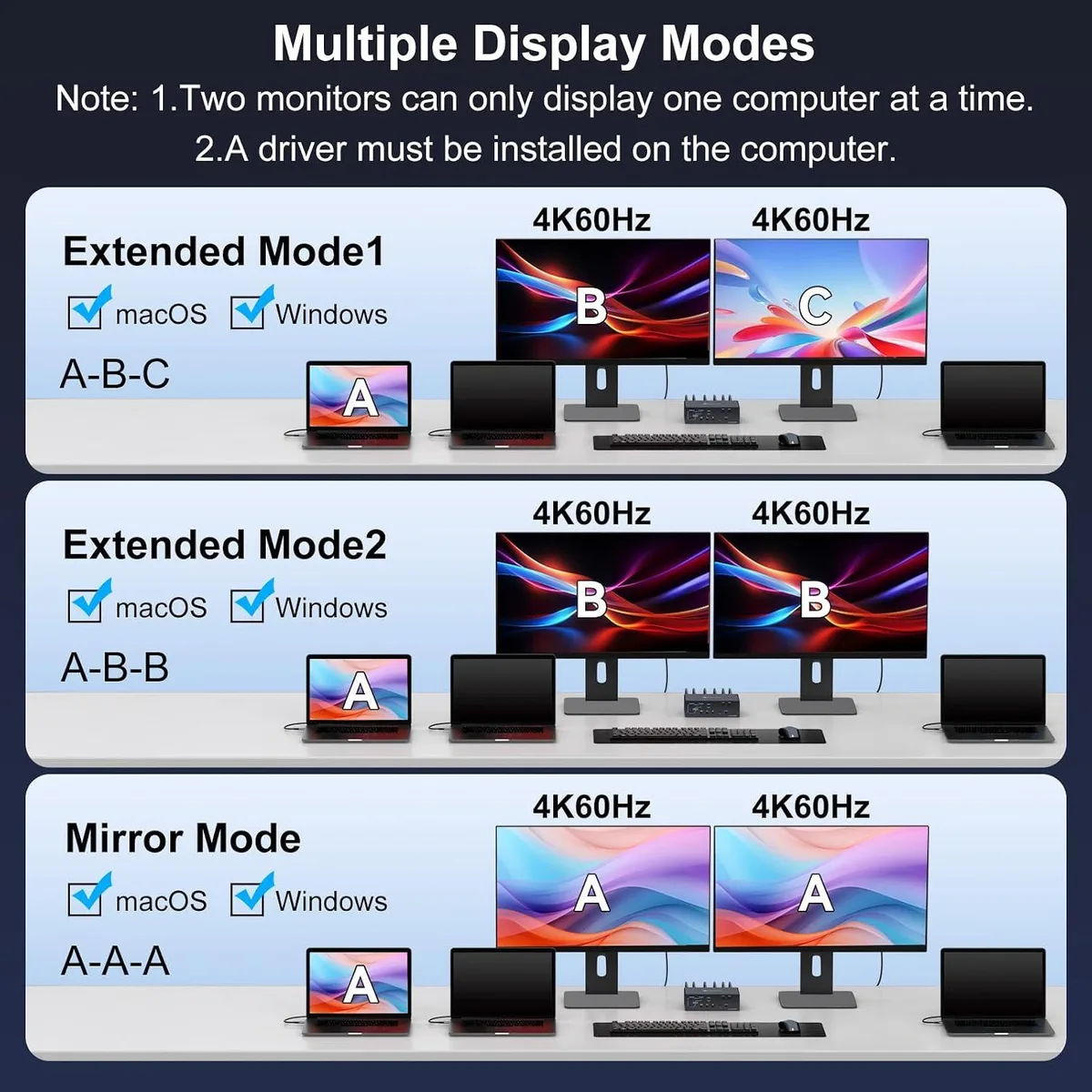

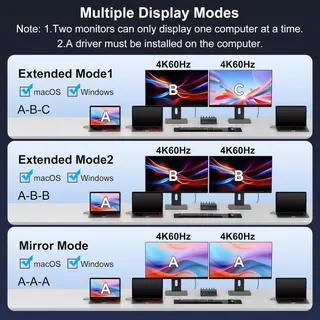

Dual 4K@60Hz Headroom
The unit drives two displays at 4K resolution and 60 Hz refresh rate in either extended or mirrored mode, including extended desktop support on macOS with M-series chips. It has no Power Delivery capability and cannot charge connected laptops. Buyers who need laptop charging, Thunderbolt bandwidth or more than three computer ports should consider a different class of dock.
Highlights
- Connect three computers to two monitors
- Dual 4K@60Hz video via HDMI and DisplayPort
- Switch systems with front push buttons
- Audio and microphone follow the active computer
- Works with Windows, macOS, Linux, Chrome OS and Android

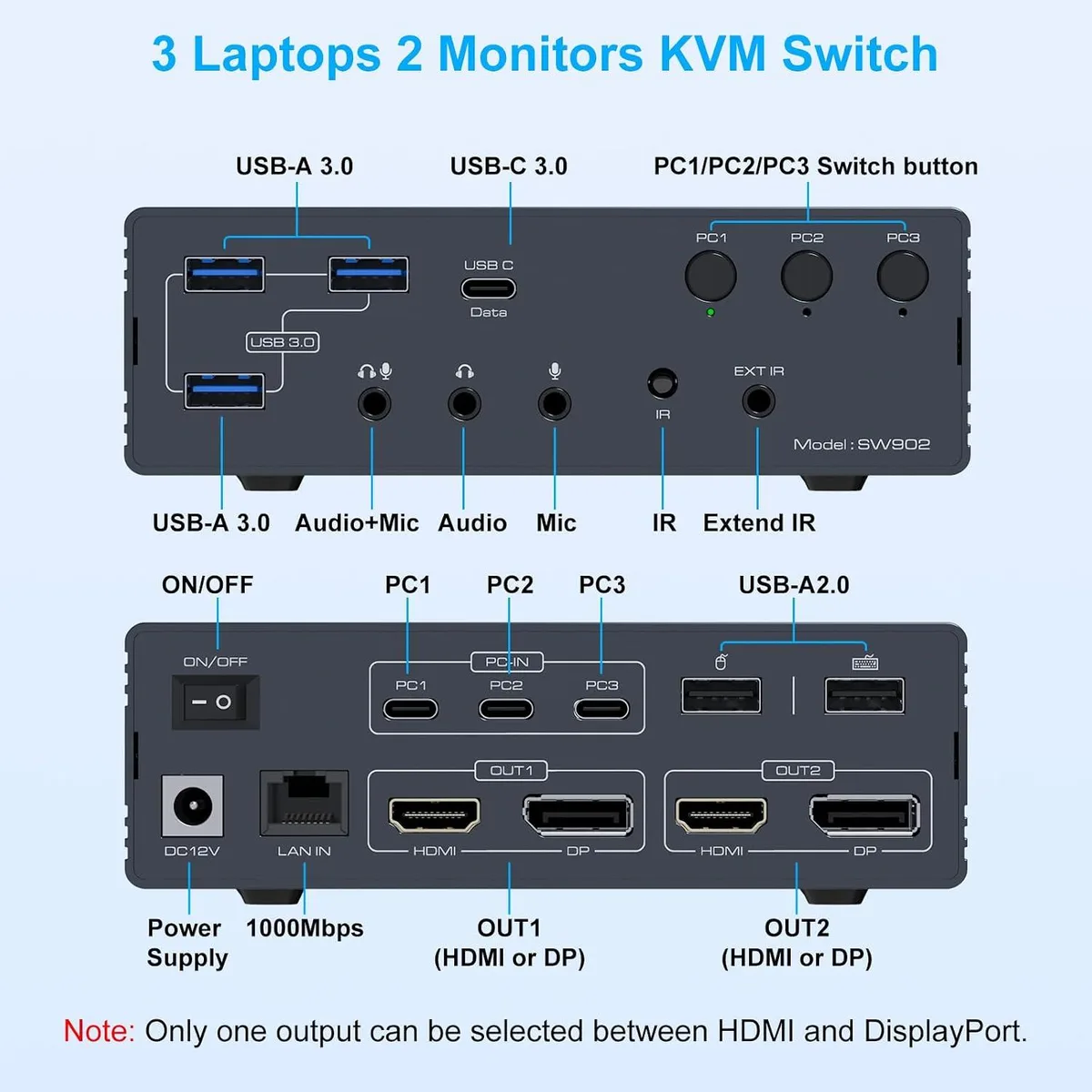

Specifications
| Series | USB C KVM Switch 2 Monitors 3 Computers |
|---|---|
| Model | SW902 |
| Type | USB C KVM Switch 2 Monitors 3 Computers Docking Station |
| PC Connectors | USB C in, HD-MI, Displayport Out |
| Computer Connections | 3 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 4K@60Hz |
| PC Selection | Push Buttons |
| Monitors Supported | HDMI, Displayport |
| LED Indicators | Yes |
| Audio Features | Offers audio and microphone switching |
| Power Features | Come with DC Power Adapter |
| USB Features | with USB support |
| Application | This KVM docking station seamlessly integrates three computers with two monitors, while also combining network connections, headphones, microphones, mouse, keyboards, webcams, portable hard drives, and other devices into a complete office and entertainment system |
| Features | Dual 4K@60Hz Display |
| Dimensions | 5.51 x 3.74 x 1.77 inches |
| Package Contents | 1. KVM Switch Dock, 2. USBA-C to C Cable ×3, 3. DC12V Power Adapter, 4. Controller, 5. User Manual. |
Questions about this item
What does the 4K@60Hz rating mean when the switch is connected to two monitors?
The unit can drive both displays at 4K resolution and 60 Hz refresh rate simultaneously, provided each computer has a USB 3.0 or higher port and DisplayLink drivers are installed.
Which video standards do the HDMI and DisplayPort outputs actually support, and what cable length is reliable?
The HDMI output follows the HDMI 2.0 standard and the DisplayPort output follows DP 1.2; for stable 4K@60Hz use high-quality cables no longer than 3.3 ft.
What physical space and mounting provisions does the SW902 need on a desk?
The chassis measures 5.51 x 3.74 x 1.77 inches and sits flat; no mounting brackets or rails are included.
