AUTYUE
AUTYUE KVM Switch 3 Monitors 4 Computers HDMI 2 DisplayPort
Controls four computers across three monitors at up to 8K 60 Hz with four USB 3.0 ports and push-button or remote switching
- TypeHDMI + 2 Displayport KVM Switch 3 Monitors 4 PCs
- PC ConnectorsHDMI, Displayport, USB
- Computer Connections4 Ports
- Monitor Connections3 Ports
- Video ResolutionTriple monitor KVM switch 4 port supports up to 8K@60Hz, wit
- PC SelectionPush Buttons and Wired Remote
- Control 4 computers with one keyboard and mouse across 3 monitors
- Switch instantly using front buttons or the included wired remote
- Supports up to 8K at 60 Hz with backward compatibility to 4K at 144 Hz
- Four USB 3.0 ports deliver 5 Gb/s data transfer for peripherals
- Driver-free plug-and-play operation with LED indicators showing active PC
Triple-Monitor KVM for Four Computers
This AUTYUE KVM switch lets one keyboard and mouse control up to four computers across three displays. It accepts two DisplayPort and one HDMI input per system and routes them to two DisplayPort and one HDMI monitor outputs. Four USB 3.0 ports share peripherals such as printers or scanners between all connected machines. Extended and mirrored display modes are supported for flexible workflows.
Check Your Graphics Outputs Before Buying

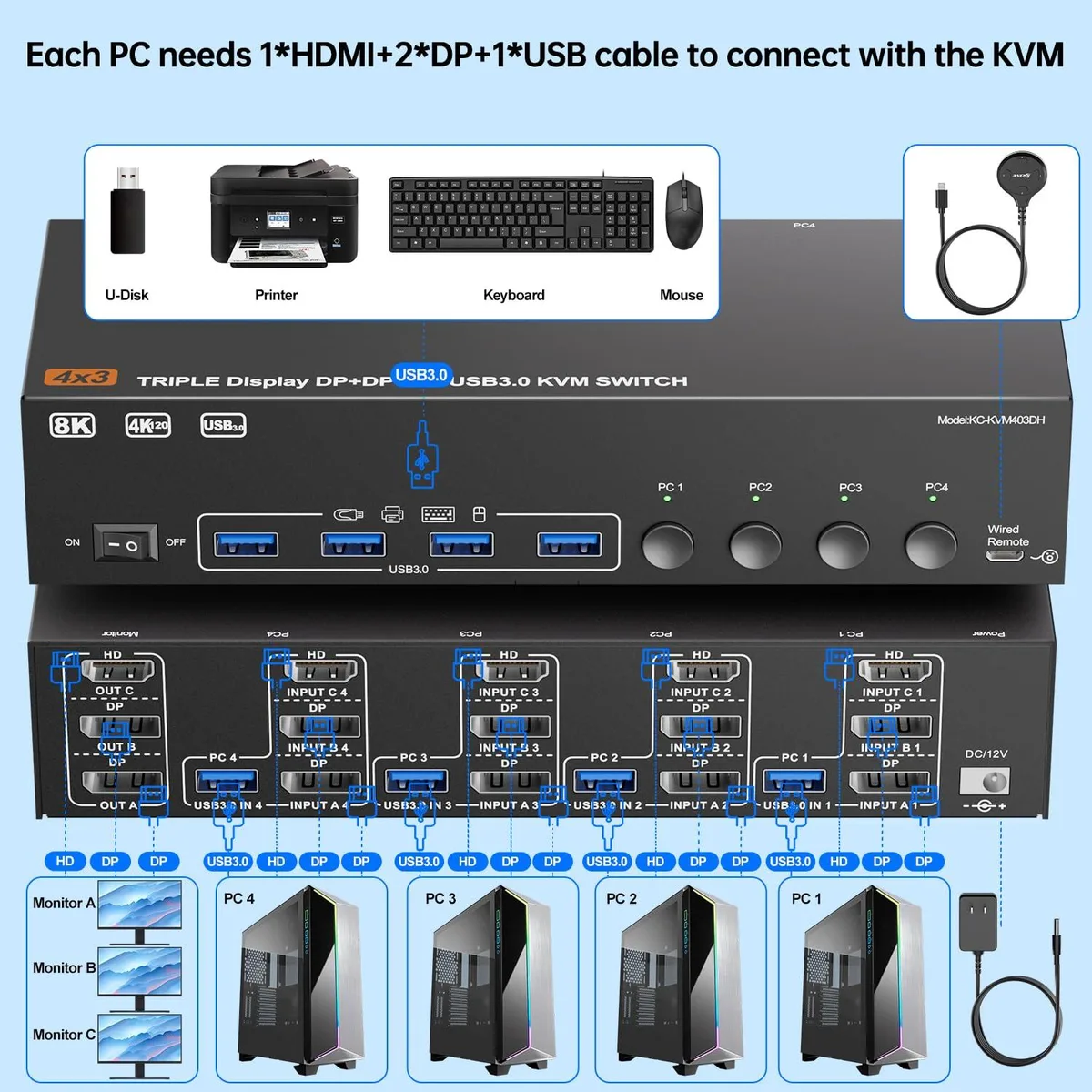

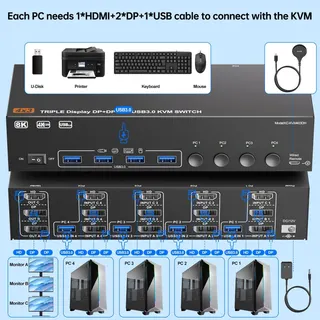

Each computer must provide two DisplayPort 1.4 ports and one HDMI 2.1 port to drive the three-monitor layout. You will need to supply your own DisplayPort and HDMI cables; the manufacturer notes that low-quality cables can cause flicker or instability. The switch is driver-free and plug-and-play, with switching via front-panel buttons or the included wired remote.
Powered Operation With Low Heat And Noise
The unit ships with a 12 V DC power adapter and draws minimal power in normal use, running cool and silent without fans. LED indicators show the active computer at a glance. Maximum supported resolutions are 8K at 60 Hz over HDMI 2.1 and 4K at 144 Hz over DisplayPort 1.4, with backward compatibility down to 1080p at 240 Hz.
Highlights
- Control 4 computers with one keyboard and mouse across 3 monitors
- Switch instantly using front buttons or the included wired remote
- Supports up to 8K at 60 Hz with backward compatibility to 4K at 144 Hz
- Four USB 3.0 ports deliver 5 Gb/s data transfer for peripherals
- Driver-free plug-and-play operation with LED indicators showing active PC
Specifications
| Type | HDMI + 2 Displayport KVM Switch 3 Monitors 4 PCs |
|---|---|
| PC Connectors | HDMI, Displayport, USB |
| Computer Connections | 4 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | Triple monitor KVM switch 4 port supports up to 8K@60Hz, with backward compatibility for 4K@144Hz, 4K@120Hz, and 1080P@240Hz. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, Displayport, Displayport |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | The 3 monitor KVM Switch with 4 USB3.0 ports for peripheral USB devices such as keyboard, mouse, printer, etc. USB 3.0 KVM Switch supports ultra-fast USB 3.0 data transfer rates of up to 5Gb/s—enabling file transfers in seconds. |
| Application | This KVM switch 3 monitors 4 computers can control 4 or 3 computers(laptops) with 1 independent set of keyboard and mouse to share 3 monitors and 4 USB 3.0 hub.(supports extended and mirrored display modes) Please note: Your computer’s graphics card must have 2 DP ports and 1 HDMI port to properly connect 3 monitors. |
| Features | A set of wired/wireless keyboard mouse can control 4 computers share 3 monitors and 4 USB 3.0 devices (keyboard, mouse, printer, scanner and other USB devices), ideal for multi-computer setups. Supports Mirror Mode and Extended Mode to balance work and leisure seamlessly. |
| Dimensions | 8.27 x 3.07 x 1.77 inches |
| Weight | 8.82 ounces |
| Package Contents | 1* Triple Monitor KVM Switch, 4* USB 3.0 Cable, 1* Power Adapter, 1* Wired Remote, 1* User's Manual. |
Questions about this item
Does the box include the video cables I need for three monitors and four computers, or do I have to buy them separately?
The package contains the KVM unit, four USB 3.0 cables, a 12 V power adapter, a wired remote and a manual. You must supply twelve video cables yourself — one HDMI and two DisplayPort cables per computer — to reach the three-monitor, four-computer layout.
My computers only have HDMI 2.0 and DisplayPort 1.2 outputs; will I still get 4K at 144 Hz on all three screens?
No. The HDMI 2.1 port reaches 4K 144 Hz, but the HDMI 2.0 limit is 4K 60 Hz. Each DisplayPort 1.4 connection supports 4K 144 Hz, so you would need DP 1.4 sources for the two DisplayPort monitors to hit 144 Hz.
When I switch between the four PCs with the wired remote, will my 4K 144 Hz gaming monitor keep its refresh rate without flicker?
Yes, provided each PC uses a DisplayPort 1.4 link for that monitor and the cables are certified for the bandwidth. The switch is passive on the video path, so the 144 Hz signal passes through unchanged when you press the remote button.
