AUTYUE KVM Switch 3 Monitors 3 Computers HDMI 2 DP 4 USB 3.0 8K60 4K144
A KVM switch letting three computers share three monitors and four USB 3.0 peripherals at up to 8K 60 Hz or 4K 144 Hz
- Typebuffer_94557
- PC ConnectorsHDMI, Displayport, USB 3.0
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video ResolutionKVM Switch 3 Monitors 3 Computers HDMI+2 Displayport Triple
- PC SelectionPush Buttons and Wired Remote
- Share 3 computers across 3 monitors with 4 USB 3.0 ports
- Switch instantly via push buttons or wired remote control
- HDMI 2.1 delivers 8K at 60 Hz and 4K at 144 Hz
- DisplayPort 1.4 supports 8K at 30 Hz and 4K at 144 Hz
- USB 3.0 moves data at 5 Gbps for fast peripherals
Three-system KVM for triple-head setups
The AUTYUE KVM Switch connects three computers to three monitors using one HDMI and two DisplayPort outputs per system. Four integrated USB 3.0 ports share keyboards, mice, printers or storage across all hosts. A wired remote and front push-buttons provide instant switching. Extended and mirrored display modes are both supported.
Replaces separate switch stacks and cable swaps
The unit consolidates three video paths and four USB 3.0 links into a single 16.2 cm x 6.6 cm x 4.4 cm enclosure powered by a 12 V adapter. It is worth the jump when a user runs three PCs or laptops daily and needs simultaneous 4K 144 Hz or 8K 60 Hz output without re-plugging cables. HDMI 2.1 carries 8K 60 Hz and 4K 60 Hz; DisplayPort 1.4 carries 8K 30 Hz and 4K 120 Hz.
Plug each host with one HDMI.
Installation requires twelve video cables plus three USB links purchased separately. Poor-quality cables cause flicker or signal loss at high refresh rates. Each computer must supply two DisplayPort and one HDMI source; monitors must match two DisplayPort and one HDMI inputs. The 300 g switch includes the remote, power adapter and three USB 3.0 cables in the box.
Highlights
- Share 3 computers across 3 monitors with 4 USB 3.0 ports
- Switch instantly via push buttons or wired remote control
- HDMI 2.1 delivers 8K at 60 Hz and 4K at 144 Hz
- DisplayPort 1.4 supports 8K at 30 Hz and 4K at 144 Hz
- USB 3.0 moves data at 5 Gbps for fast peripherals
Specifications
| Model | KVM Switch 3 Monitors 3 Computers |
|---|---|
| Type | buffer_94557 |
| PC Connectors | HDMI, Displayport, USB 3.0 |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | KVM Switch 3 Monitors 3 Computers HDMI+2 Displayport Triple Monitor KVM Switch up to 8K 30Hz & 4K 120Hz, backward compatible, 2K@144Hz, 1080P. Note, HDMI resolution: 4K144Hz, 8K60Hz; DP resolution: 8k30Hz, 4K120Hz. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, Displayport, Displayport |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | 12V DC Power Adapter |
| USB Features | Triple monitor KVM switches with 4 integrated USB 3.0 ports,supports ultra-fast 5Gbps data transmission,which can recognize keyboard, mouse, printer, scaner, USB flash drive and other USB devices. |

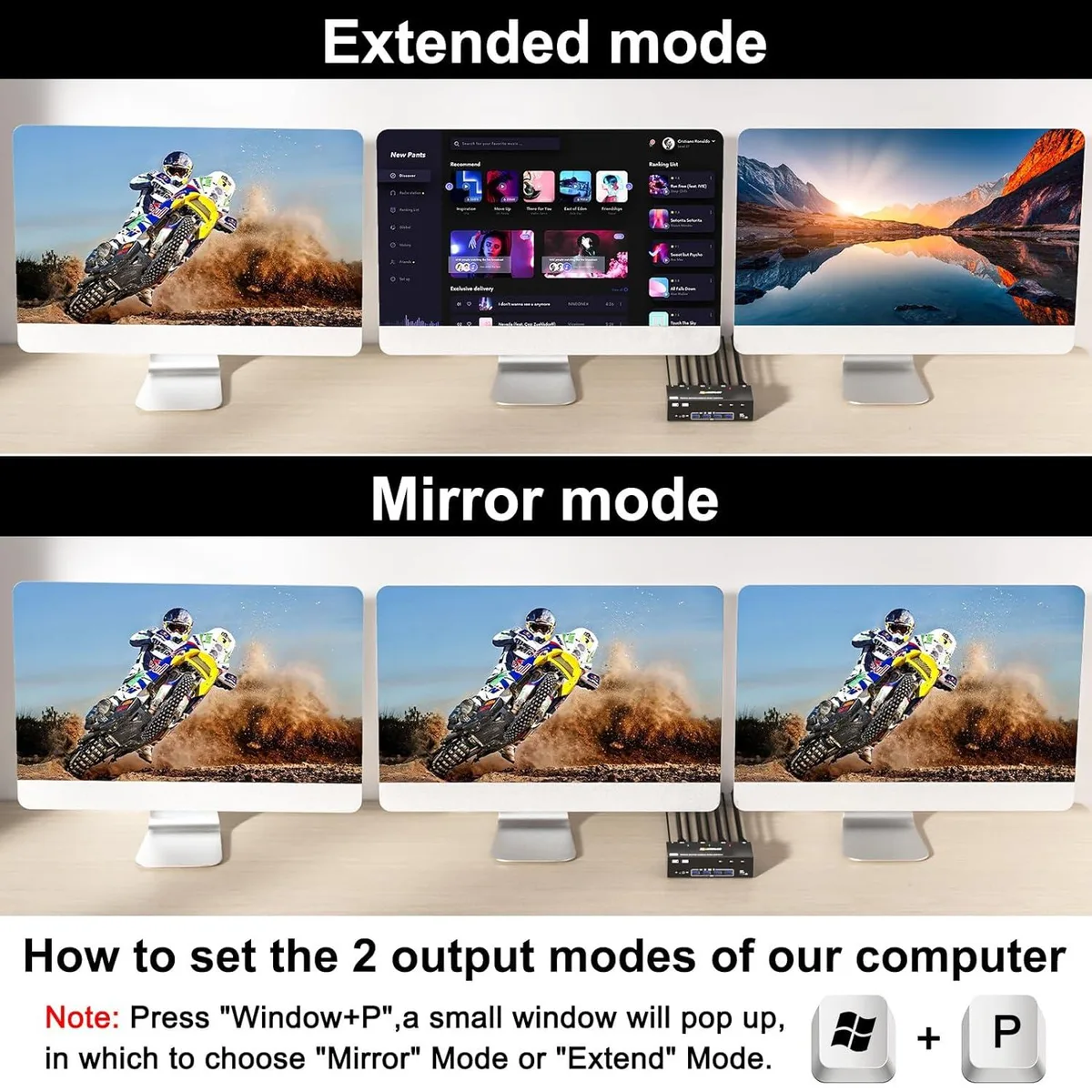

| Application | This KVM switch 3 monitors 3 computers perfect for hooking up 3 desktops or laptops to share one set of wired or wireless keyboard mouse and 3 monitors (supports extended and mirrored display modes). |
| Features | 3 computers share 3 monitors and 4 USB device. Supports wired or wireless keyboard and mouse. USB 3.0 with ultra-fast data transfer up to 5Gbps. Supports resolutions up to 4K@144Hz,8K@60Hz. |
| Dimensions | 16.2cm x 6.6cm x 4.4cm |
| Weight | 300g |
| Package Contents | 1x 3 Monitor KVM Switch, 3 x USB 3.0 Cable, 1x Power Adapter, 1x Wired remote, 1x User's manual. |
Questions about this item

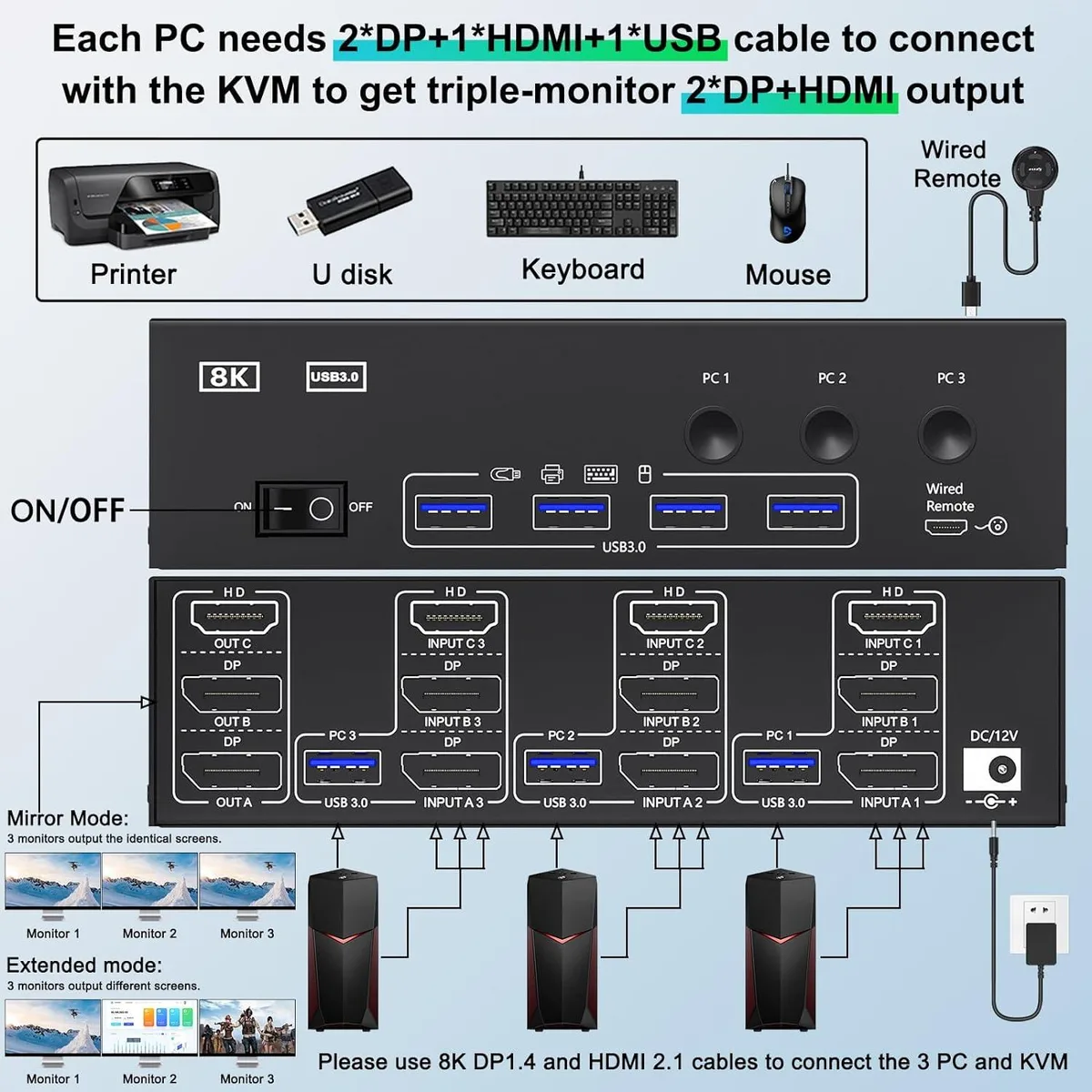

What cables and ports does each computer need to connect to this KVM switch?
Each computer requires one HDMI cable, two DisplayPort cables, and one USB 3.0 cable to connect to the switch for full triple-monitor operation.
How do you switch between the three connected computers, and what is the common mistake?
Switch using the front push buttons or the included wired remote; the common mistake is forgetting to connect the USB 3.0 cable from each PC, which breaks keyboard and mouse sharing.
What power supply does the unit need, and what should be checked if monitors flicker?
It requires the included 12 V DC adapter; if monitors flicker, verify that all HDMI and DisplayPort cables meet the required bandwidth for 8K60 or 4K144 signals.
