AUTYUE KVM Switch 3 Monitors 3 Computers 4K@60Hz EDID USB 3.0 Wired Remote
Connects three computers to three monitors at 4K@60Hz with EDID simulation preserving window layouts, four USB 3.0 ports, and wired remote switching
- TypeKVM Switch 3 Monitors 3 Computers
- PC Connectors2 HDMI + Displayport
- Computer Connections2 HDMI + 1 Displayport
- Monitor Connections3 Ports HDMI
- PC SelectionPush Buttons
- Monitors SupportedHDMI, HDMI, HDMI

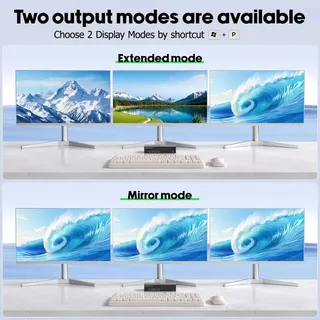

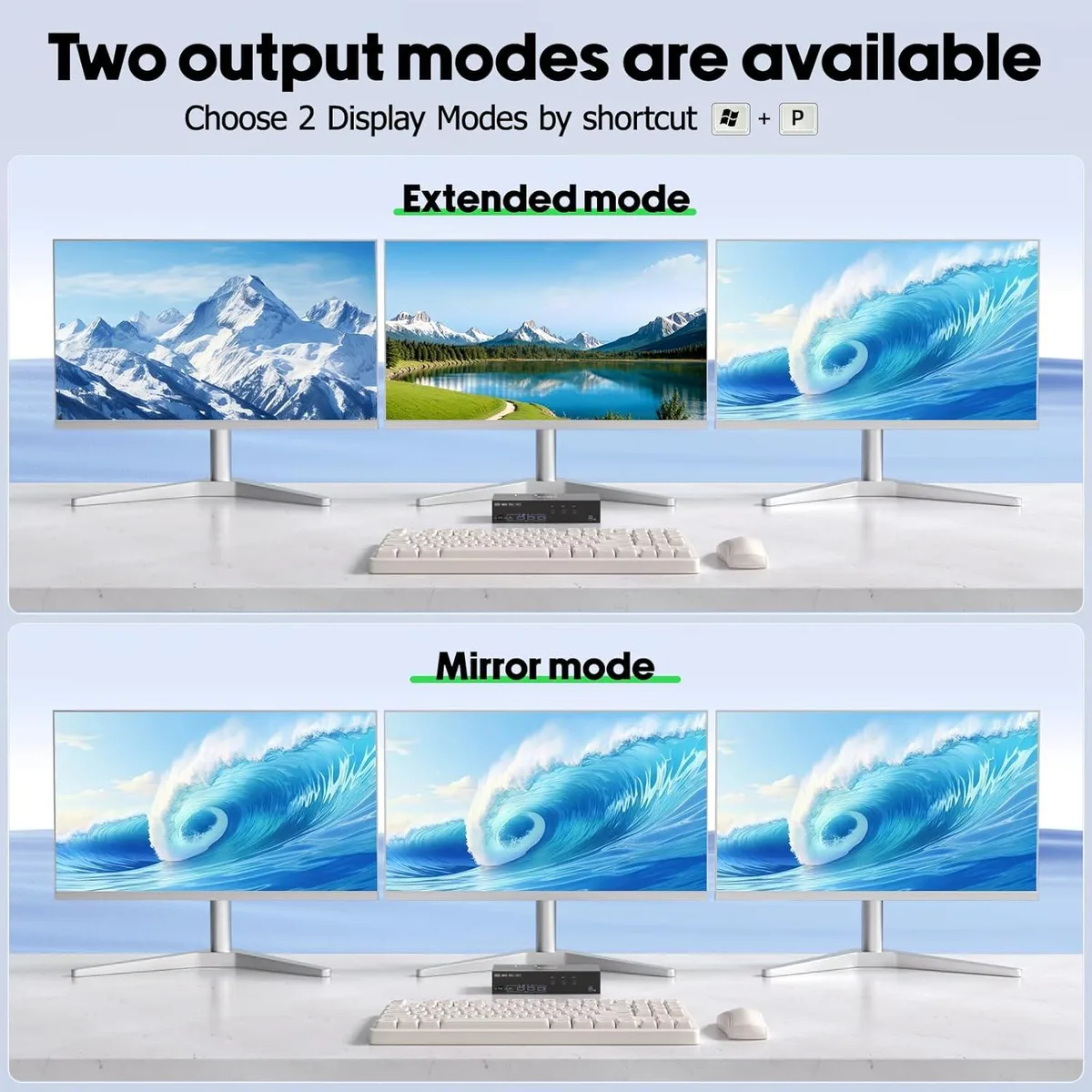

- Share 3 monitors across 3 computers with extended or mirrored modes
- EDID simulation keeps window layouts intact when switching between PCs
- 4K 60 Hz and 2K 120 Hz resolution support on all three displays
- Four USB 3.0 ports deliver 5 Gbps data for peripherals
- Switch instantly via front buttons or wired remote with LED status
Three-computer triple-monitor KVM
This AUTYUE KVM switch lets three computers share three HDMI monitors and four USB 3.0 peripherals. It supports extended and mirrored display modes so each screen can show unique content or duplicate the same image. The unit includes a wired remote for convenient switching from a distance. Driver-free operation works with Windows, Mac, Linux and Unix systems.

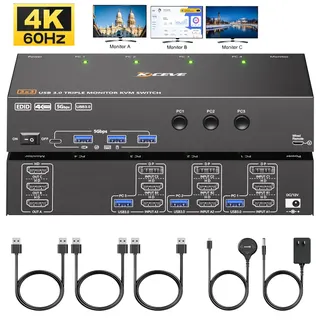

Metal chassis with front-panel controls
The compact enclosure measures 8.35 by 3.07 by 1.77 inches and features push buttons and LED indicators for instant computer selection. Each computer connects through two HDMI and one DisplayPort input plus a USB 3.0 cable, while three HDMI outputs feed the monitors. A 12 V DC power adapter is supplied for stable operation. Four USB 3.0 ports on the switch keep keyboard, mouse, printer and drives permanently attached.
4K 60 Hz video with EDID simulation
Maximum resolution is 3840 by 2160 at 60 Hz, with support for 2K at 120 Hz and lower resolutions. EDID simulation preserves window positions when switching between computers so layouts do not need rearranging. Three independent circuit boards allow flexible use with three, two or one monitor configurations. Buyers who need more than three computers or monitors will need a different solution.
Highlights
- Share 3 monitors across 3 computers with extended or mirrored modes
- EDID simulation keeps window layouts intact when switching between PCs
- 4K 60 Hz and 2K 120 Hz resolution support on all three displays
- Four USB 3.0 ports deliver 5 Gbps data for peripherals
- Switch instantly via front buttons or wired remote with LED status
Specifications
| Type | KVM Switch 3 Monitors 3 Computers |
|---|---|
| PC Connectors | 2 HDMI + Displayport |
| Computer Connections | 2 HDMI + 1 Displayport |
| Monitor Connections | 3 Ports HDMI |
| PC Selection | Push Buttons |
| Monitors Supported | HDMI, HDMI, HDMI |
| LED Indicators | Yes |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | with USB support |
| Application | This 3 Monitors KVM Switch effortlessly connect up to 3 computers to share 3 monitors (supports extended & mirrored display modes) and 4 high-speed USB 3.0 ports. |
| Features | with EDID simulation |
| Dimensions | 8.35 x 3.07 x 1.77 inches |
| Package Contents | 1* Displayport HDMI KVM Switch, 3* USB 3.0 cable, wired remote, 12V power adapter and user manual. |
Questions about this item
What resolution does the HDMI 2.0 interface cap at for three simultaneous monitors?
The HDMI 2.0 interface caps three simultaneous monitors at 3840 x 2160 resolution at 60 Hz.
How much desk depth does the 8.35 x 3.07 x 1.77 inch chassis require?
The chassis requires 3.07 inches of desk depth and stands 1.77 inches tall.

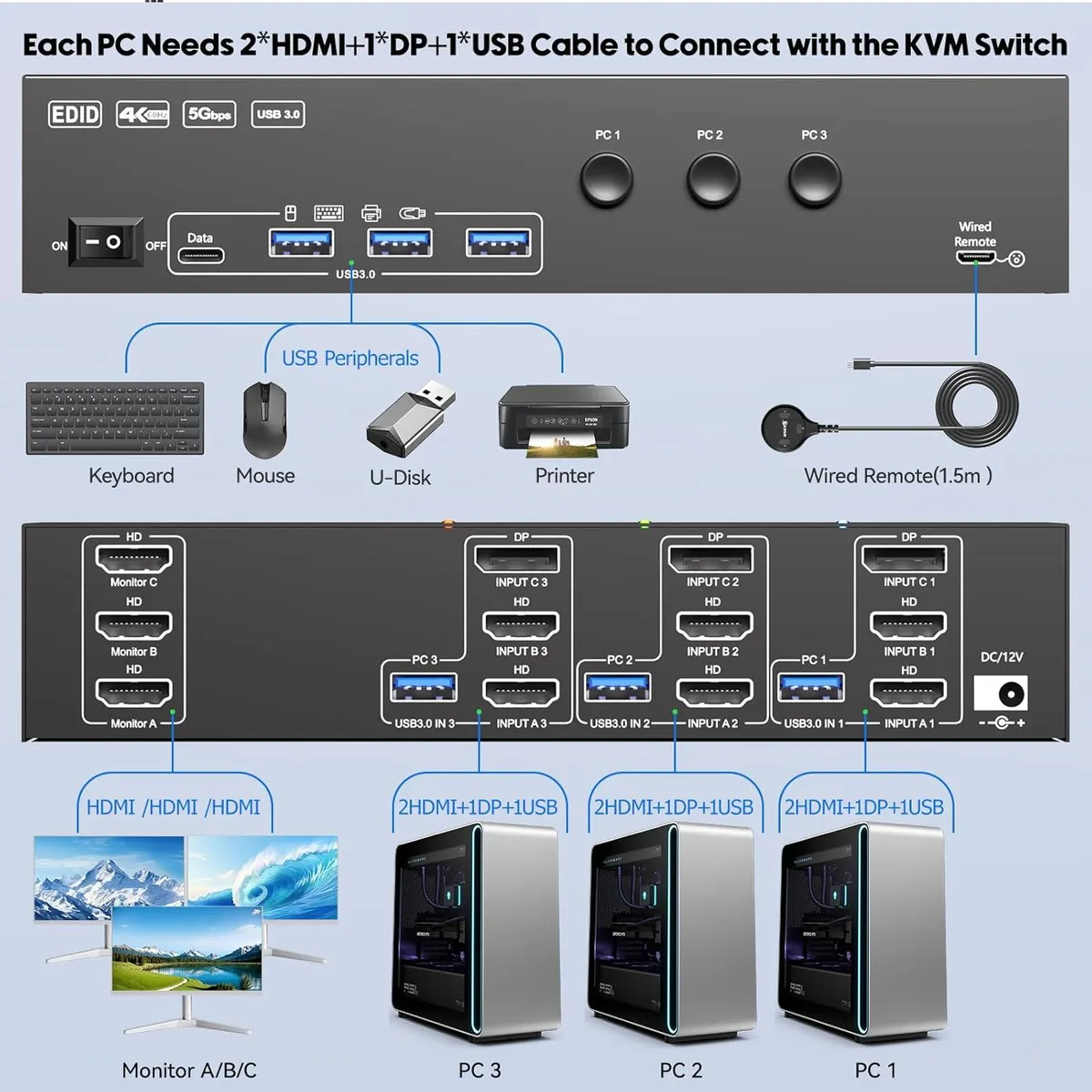

How do I connect each computer using the 2 HDMI + 1 DisplayPort + 1 USB cable kit?
Connect 2 HDMI and 1 DisplayPort video cables plus 1 USB 3.0 cable per computer; keep each monitor mapped to its own video source without crossing cables.
