AUTYUE
AUTYUE KC-KVM963 HDMI 2DP KVM Switch 3 Monitors 6 Computers 8K30 4K144
Shares three monitors and USB peripherals across six computers with 8K30 and 4K144 video support
- TypeHDMI + 2 Displayport KVM Switch 3 Monitors 6 Computers
- Computer Connections6 Ports
- Monitor Connections3 Ports
- Video ResolutionThis triple monitor 6 computers KVM switch output features 2
- PC SelectionPush Buttons
- Monitors SupportedHDMI, Displayport, Displayport
- Share 6 computers across 3 monitors with one click
- Each video port delivers up to 8K at 30 Hz and 4K at 144 Hz
- Switch via front buttons or wired desktop controller
- Mirror or extend across all three displays

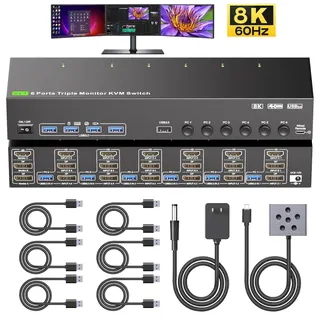

- Includes 6 USB cables, power adapter and remote control
AUTYUE KC-KVM963 triple-monitor KVM
This new KVM switch connects six computers to three monitors using two DisplayPort and one HDMI output. It also shares four USB 3.0 ports and one USB 2.0 port for keyboards, mice, printers or webcams. The unit targets home offices, content creators and IT professionals who need to control multiple systems from a single desk setup without constantly swapping cables.
Sustained 8K30 and 4K144 operation
Each video output supports up to 8K at 30 Hz and is backward compatible with 4K at 144 Hz, 120 Hz, 60 Hz and 30 Hz. The manufacturer notes that eliminating screen tearing and stuttering is maintained across all three monitors even at high frame rates. A DC 12 V power adapter is included to keep the switch stable during extended multi-system sessions.
Check your PCs and cables before ordering

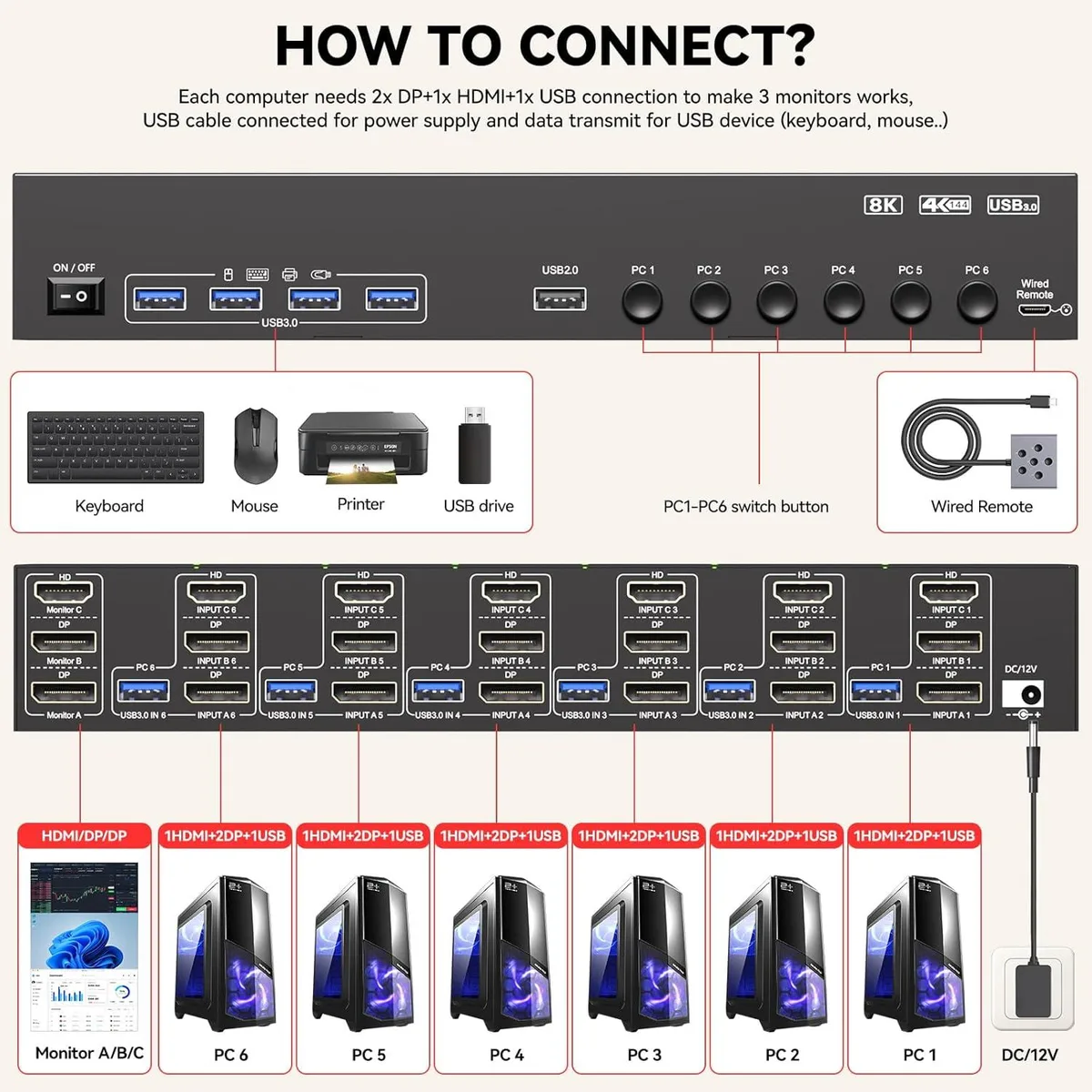

Every computer must provide two DisplayPort and one HDMI connection plus a USB link, and each system must support three simultaneous displays. No adapters or converters may be used, and cables should not exceed 1.5 metres if 8K resolution is required. The switch does not support EDID emulation or keyboard hotkeys, so plan for button or wired remote switching only.
Highlights
- Share 6 computers across 3 monitors with one click
- Each video port delivers up to 8K at 30 Hz and 4K at 144 Hz
- Switch via front buttons or wired desktop controller
- Mirror or extend across all three displays
- Includes 6 USB cables, power adapter and remote control
Specifications
| Series | KVM Switch 3 Monitors 6 Computers |
|---|---|
| Model | KC-KVM963 |
| Type | HDMI + 2 Displayport KVM Switch 3 Monitors 6 Computers |
| Computer Connections | 6 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | This triple monitor 6 computers KVM switch output features 2 DP+1 HDMI port, each supporting up to 8K@30Hz resolution, and backward compatible with 8K@30Hz, 4K@144Hz/120Hz/60Hz/30Hz. |
| PC Selection | Push Buttons |
| Monitors Supported | HDMI, Displayport, Displayport |
| LED Indicators | Yes |
| Power Features | Come with DC12V Power Adapter |
| USB Features | with USB support |
| Application | This 2*Displayport + 1*HDMI 3 monitors KVM Switch allows you to switch between 6 computers with one click, share 3 monitors and 4 USB 3.0 +1 USB2.0 ports (keyboard, mouse, printer, webcam) without swapping cables. Space-saving KVM for home offices, content creators, and IT professionals. |
| Features | Two Dispaly Modes |
| Dimensions | 8.27 x 3.07 x 1.18 inches |
| Package Contents | 1*Triple monitor KVM switch, 6*USB cables, 1*power adapters, 1*wired control, 1*user guide. |
Questions about this item
How much power does the KC-KVM963 draw when running all day?
The unit ships with a DC12V power adapter; no separate wattage or thermal rating is published.
Which cables must I already own to connect six PCs to three monitors?
Each computer needs two DisplayPort cables, one HDMI cable and one USB cable — none are included beyond the six USB cables in the box.
Will the switch pass 4K 144 Hz from an older GPU that only has HDMI 2.0?
Each output supports 4K at 144 Hz, but the source must provide that timing over its own DisplayPort or HDMI connection; the KVM does not convert signals.
