AUTYUE
AUTYUE KC-962 KVM Switch 6 PCs 2 Monitors 8K 4 USB 3.0
Shares two monitors and four USB 3.0 devices across six computers with 8K and 4K high-refresh support
- TypeHDMI + Displayport KVM Switch 6 Computers 2 Monitors
- Computer Connections6 Ports
- Monitor Connections2 Ports
- Video ResolutionThe 6 PC dual monitor KVM switch supports resolution up to 8
- PC SelectionPush Buttons
- Monitors SupportedHDMI, Displayport
- Share six computers across two monitors with one keyboard and mouse
- Switch instantly using front buttons or the wired remote controller
- Drive two 4K displays at 144 Hz via DisplayPort or HDMI
- Connect four USB 3.0 peripherals and share them across every system
- Plug-and-play operation with no drivers required for Windows, macOS or Linux
Six-computer KVM switch
The AUTYUE KC-962 lets six computers share two monitors and four USB 3.0 peripherals. Each connected system must provide both an HDMI and a DisplayPort output. The switch is aimed at multi-system workstations, broadcast setups and teaching environments where a single keyboard, mouse and dual-display layout must control several PCs.
Passive cooling and external power
The unit runs without fans, so it adds no audible noise to the desk. A supplied 12 V DC adapter powers the internal switching logic and the four downstream USB 3.0 ports. Power draw scales with the number of active computers and attached USB devices, but the external brick keeps heat away from the switching circuitry.
Build integration requirements

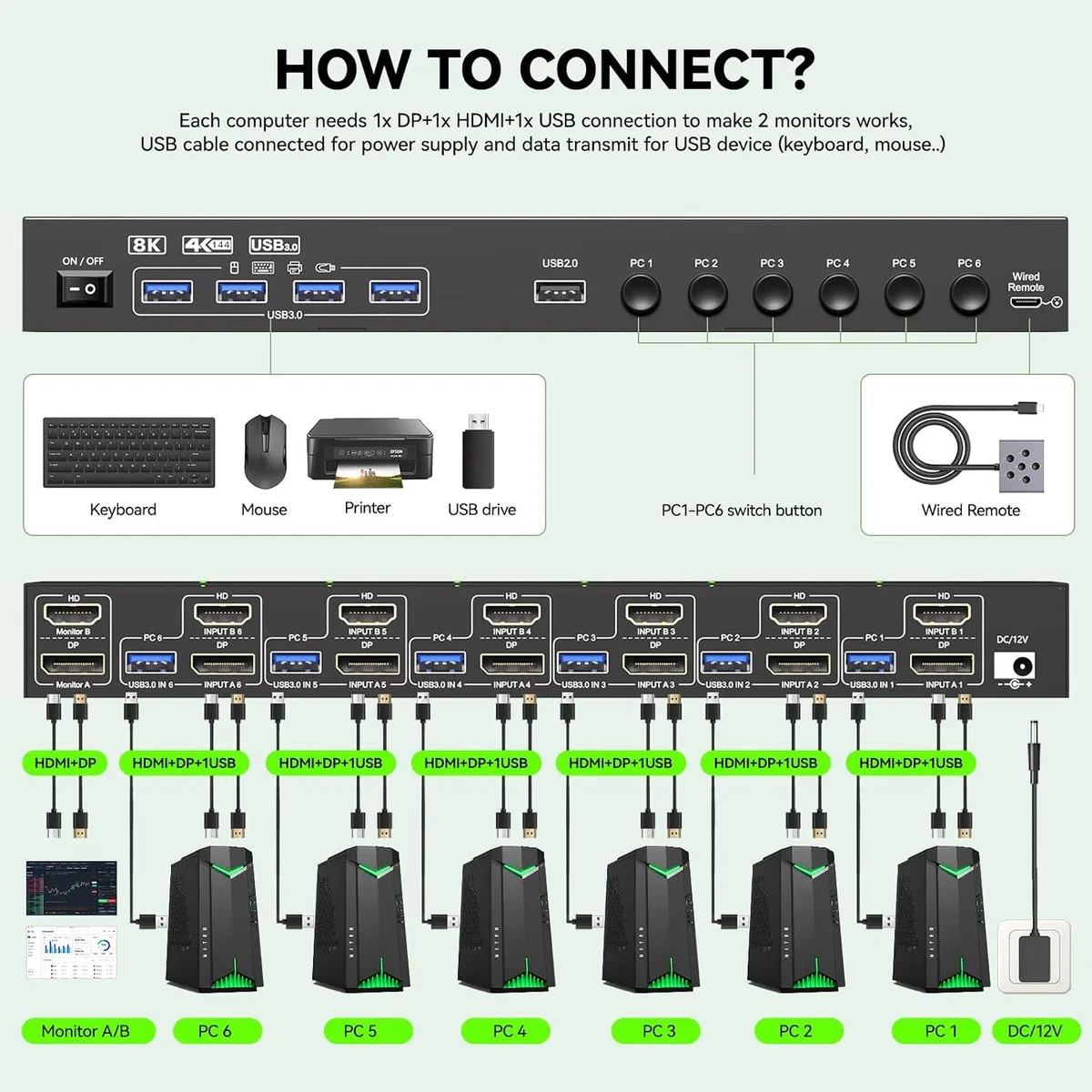

Six host cables — HDMI, DisplayPort and USB per computer — plus two monitor cables and the power adapter must reach the switch, so cable routing space behind the desk is essential. The wired remote lets the main box sit out of sight while the selector stays within reach. Buyers whose systems lack both HDMI and DisplayPort on the same graphics card cannot use the dual-monitor modes.
Highlights
- Share six computers across two monitors with one keyboard and mouse
- Switch instantly using front buttons or the wired remote controller
- Drive two 4K displays at 144 Hz via DisplayPort or HDMI
- Connect four USB 3.0 peripherals and share them across every system
- Plug-and-play operation with no drivers required for Windows, macOS or Linux
Specifications
| Series | KVM Switch 2 Monitors 6 Computers |
|---|---|
| Model | KC-962 |
| Type | HDMI + Displayport KVM Switch 6 Computers 2 Monitors |
| Computer Connections | 6 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | The 6 PC dual monitor KVM switch supports resolution up to 8K@60Hz/4K@144Hz. Please note: The DP part supports 8K@30Hz/4K@144Hz, and the HDMI part supports 8K@60Hz/4K@120Hz. Please use 8K HDMI and DP cables, and the shorter the cable length, the better, as this will ensure a more stable signal. |
| PC Selection | Push Buttons |
| Monitors Supported | HDMI, Displayport |
| LED Indicators | Yes |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | This 2 monitors KVM switch with 4 USB 3.0 port for sharing mouse, keyboard, USB printers, scanners, etc. |
| Application | 2 monitors 6 computers KVM switch designed for DisplayPort and HDMI ports device to share keyboard mouse and monitor. |
| Features | Wide Compatibility and Plug and play |
| Dimensions | 11.22 x 3.03 x 1.18 inches |

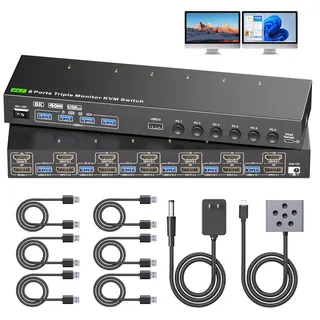

| Package Contents | 1 x KVM Switch, 6 x USB Cables, 1 x Power Adapter, 1 x Wired Controller, 1 x User Manual |
Questions about this item
How do I install the KC-962 so both monitors work, and what is the step people miss?
Connect each PC with one HDMI cable, one DisplayPort cable, and one USB cable; the step often missed is ensuring both video ports come from the same discrete graphics card, otherwise extended or copy mode will not activate.
What maintenance or replacement will the KC-962 need over time?
The unit is driver-free with no user-serviceable parts; only the supplied 12 V DC adapter or the four USB 3.0 cables may need replacement if they fail, and keeping cables under two metres helps maintain 8K stability.
What limit appears first when the KC-962 runs continuously at high resolution?
DisplayPort outputs cap at 8K 30 Hz or 4K 144 Hz, while HDMI outputs cap at 8K 60 Hz or 4K 120 Hz; cable length beyond two metres degrades signal before any thermal limit is reached.
