Compact black box with front buttons and rear ports

AUTYUE

AUTYUE HDMI KVM Switch 2×2 4K60 USB 3.0 Remote

SKU CH-F7ZC-ZXYT8

A dual-monitor KVM switch shares one keyboard, mouse and two displays between two computers at 4K 60 Hz with USB 3.0 hub and audio output

  • TypeHDMI, USB
  • PC Connectors2 Computers
  • Computer Connections2 Ports
  • Monitor Connections2 Ports
  • Video Resolution3840 x 2160
  • PC SelectionPush Buttons/Hot Keys

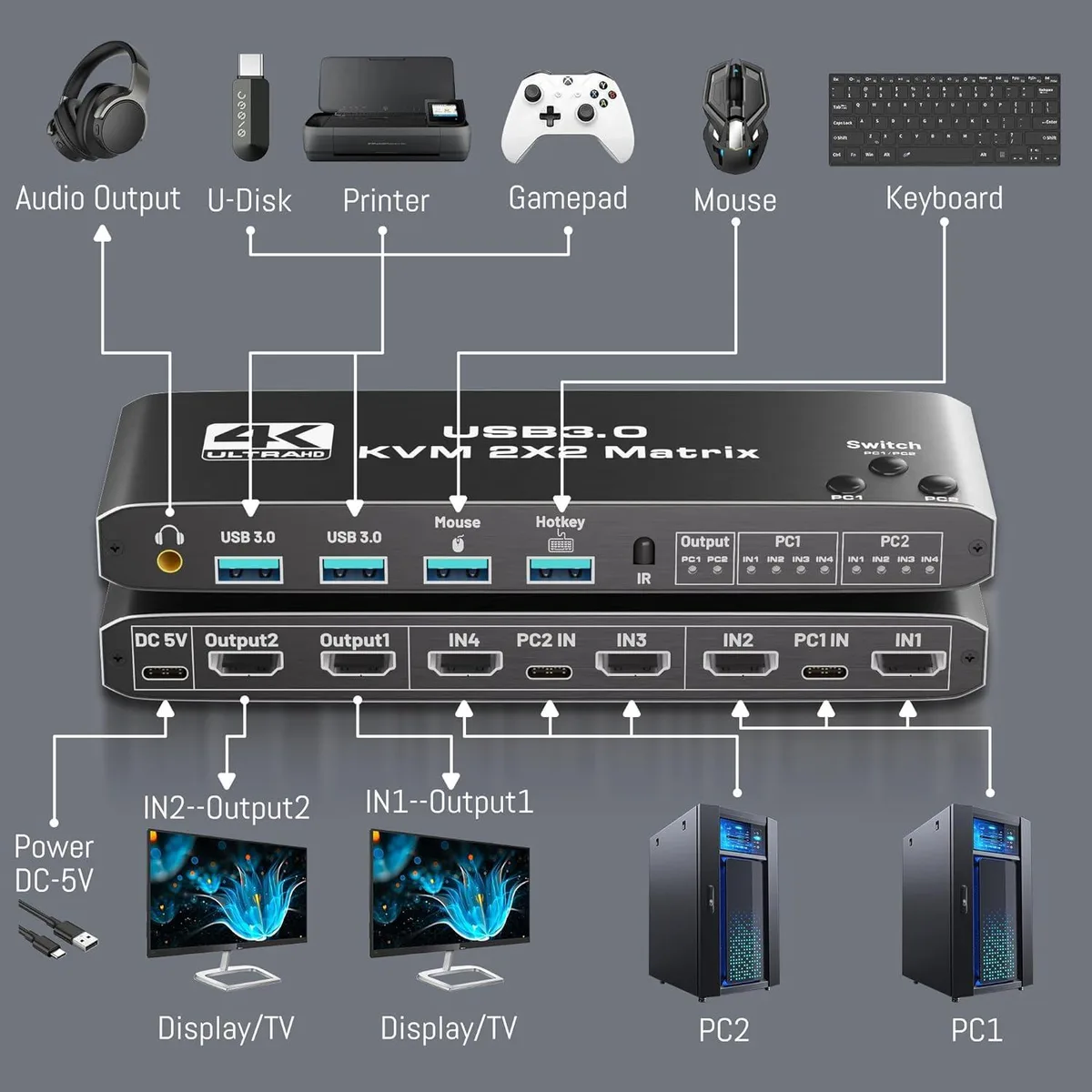

  • Controls two computers with one keyboard, mouse and dual-monitor set-up
  • Switches four HDMI sources across two displays at 4K 60 Hz
  • USB 3.0 hub shares two peripherals at 5 Gb/s between both PCs
  • Built-in 3.5 mm audio jack with DAC for headphone output
  • Push-button, hotkey or IR remote switching with zero-latency keyboard and mouse pass-through

Dual-Monitor KVM Switch for Two Computers

This HDMI matrix connects two computers to two shared displays and lets you copy or extend the desktop across both screens. It includes a USB 3.0 hub for two peripherals and a 3.5 mm audio output for speakers or headphones. The unit draws power from the USB link so no separate adapter is needed.

HDMI 2.0 Bandwidth and Display Limits

The switch passes 4K at 60 Hz and 1080p at 144 Hz through HDMI 2.0b with HDCP 2.3 compliance. Each computer must already support dual-monitor output; the device cannot add a second video port to a single-output laptop. Bandwidth is shared across the matrix, so driving both outputs at maximum refresh simultaneously may reduce available throughput.

Push-Button, Hotkey and IR Switching

You change the active computer with front-panel buttons, keyboard hotkeys or the supplied infrared remote. The remote needs a AAA battery which is not included. USB 3.0 peripheral switching is near-instant, though some wireless keyboard dongles may need a moment to re-enumerate after a swap. The semi-DDM USB mode improves compatibility with gaming mice and keyboards.

Highlights

  • Controls two computers with one keyboard, mouse and dual-monitor set-up
  • Switches four HDMI sources across two displays at 4K 60 Hz
  • USB 3.0 hub shares two peripherals at 5 Gb/s between both PCs
  • Built-in 3.5 mm audio jack with DAC for headphone output
  • Push-button, hotkey or IR remote switching with zero-latency keyboard and mouse pass-through

Specifications

TypeHDMI, USB
PC Connectors2 Computers
Computer Connections2 Ports
Monitor Connections2 Ports
Video Resolution3840 x 2160
PC SelectionPush Buttons/Hot Keys
Monitors SupportedDual Monitor
LED IndicatorsYes
Audio Featureswith Audio Output
Power FeaturesRequires no additional power supply
USB Featureswith USB support
ApplicationThe KVM Switch HDMI console controls a computer or laptop that shares a set of USB keyboard, mouse and dual-monitor, and expands or copies the display. It allows the cable control to be hidden away for a neater desk surface.NOTE: The computer needs to support 2 screens or more Function. If your computer supports this function but only has one HDMI interface,you can use a converter or conversion cable, such as a VGA/DVI/DP to HDMI converter or Conversion cable.
Features- Support HDMI 2.0b HDCP 2.3
--compliant with DVI to HDMI,DP to HDMI
- Resolution: Support 1080P/1080@144Hz, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution
- Support system: Windows XP, Windows7, Windows10, MAC OS, Linux, Unix and other operating systems
- Supports high current hard disk devices
- Extended / Mirror mode Switching Method
Dimensions176x51x21mm
Weight120g
Package Contents1 x HDMI KVM USB Matrix,
2 x USB data cable,
1 x USB power cable,
1 x IR Remote Control(Without AAA battery),
1 x User Manual

Questions about this item

Should I pick the 2-computer or 4-input matrix mode for my dual-monitor setup?

The unit handles both: use it as a 2×2 KVM to share keyboard, mouse and two monitors between two computers, or as a 4×2 matrix to route four HDMI sources to the same two displays.

What does 4K 60 Hz actually deliver on my monitors?

You get 3840×2160 at 60 Hz with RGB 4:4:4 colour, plus support for 1080p at 144 Hz or 120 Hz on compatible screens.

Does the HDMI 2.0b and HDCP 2.3 interface limit HDR or high-refresh signals?

HDMI 2.0b caps video at 4K 60 Hz 4:4:4; HDR and higher refresh rates above 60 Hz at 4K are not supported, but 1080p 144 Hz works within the bandwidth.
