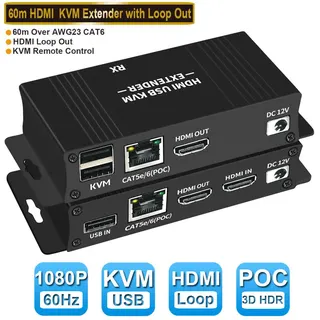

Two compact black boxes with HDMI and RJ45 ports, plus USB and power connectors

AUTYUE

AUTYUE HDMI KVM Extender 60m 1080p PoC Loop Out

SKU CH-07QR-JY0B3

Extends HDMI, USB keyboard and mouse signals up to 60 metres over a single CAT6 cable with 1080p resolution, power over cable and local HDMI loop-out

  • TypeHDMI, USB
  • Computer Connections1 Port
  • Video Resolution1920 x 1080
  • ApplicationHDMI extender provides extension of HDMI signals long distan
  • FeaturesLong range transmission:up to 60m/196ft over a single AWG23
  • Dimensions5.43 x 5.35 x 1.46 inches
  • Extends HDMI and USB control up to 60 metres over a single CAT6 cable
  • Powers the receiver through the same CAT cable so only one adapter is needed
  • Delivers 1080p at 60 Hz with 3D and HDR support for clear visuals
  • Provides a local HDMI loop-out on the transmitter for a nearby display
  • Carries multichannel audio up to 7.1 including Dolby Digital and DTS 5.1

HDMI KVM Extender 60 m

This AUTYUE extender sends 1080p HDMI and USB keyboard-mouse signals up to 60 m over a single CAT6 cable. It supports HDMI 1.4b, HDCP 1.4 and DVI standards with HDR and 3D video up to 1920 x 1080 at 60 Hz. Audio passes through as LPCM, Dolby Digital or DTS 5.1. The transmitter includes a local HDMI loop-out for a nearby display.

Build integration

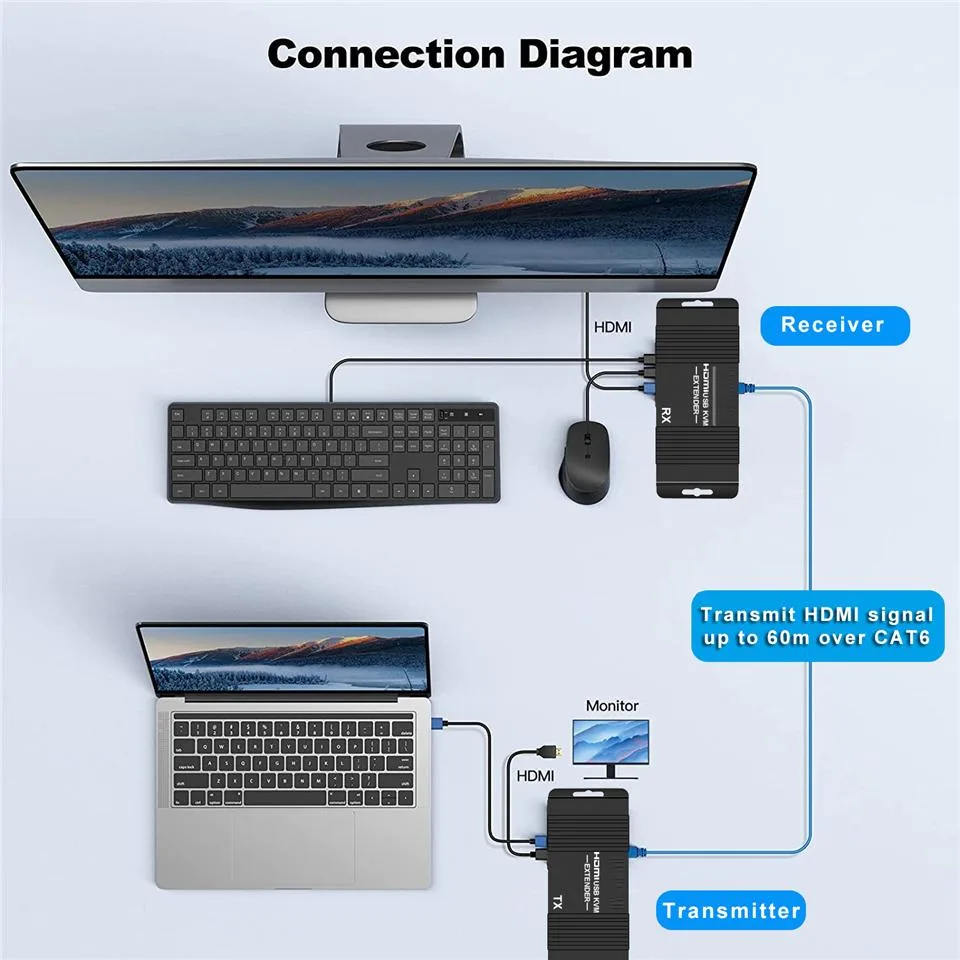

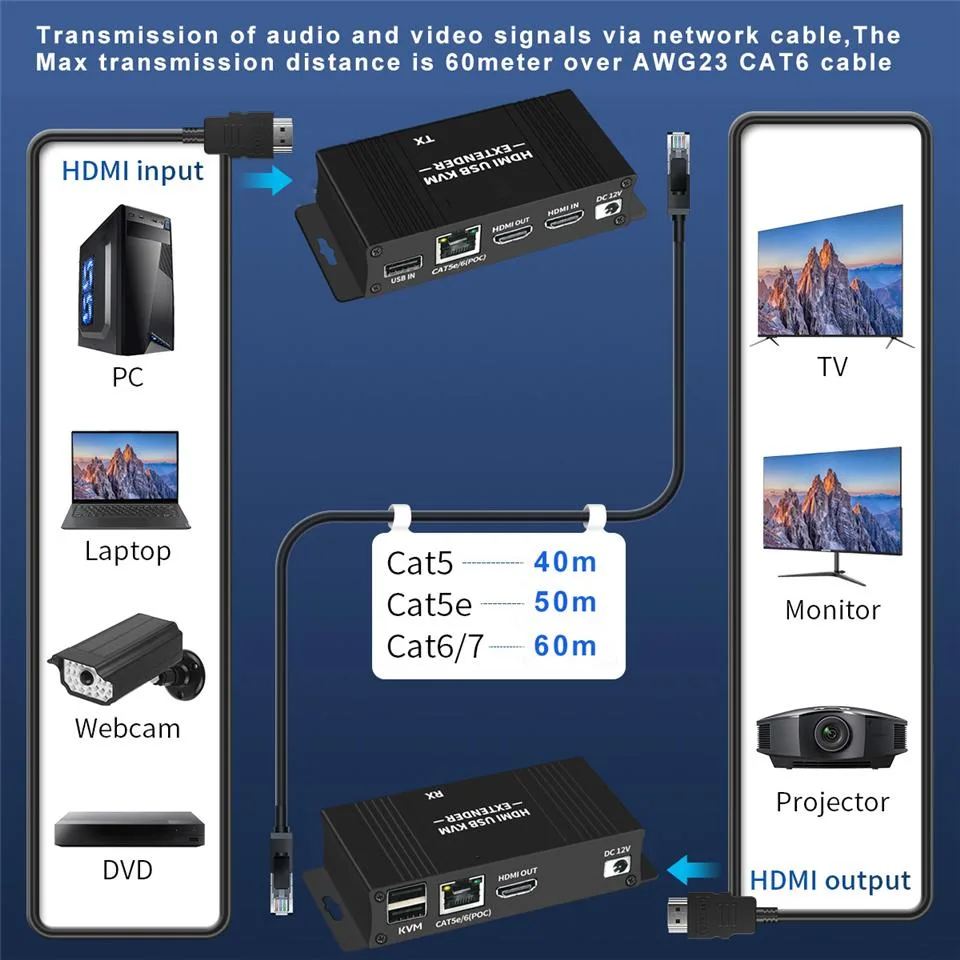

One transmitter connects to the source PC via HDMI and Type-B USB; the receiver links to a remote display and USB keyboard or mouse. Only one power adapter is needed because the POC function delivers power over the CAT cable. CAT5e reaches 50 m and CAT5 reaches 40 m, so cable choice sets the maximum distance. No extra switch ports or software drivers are required for basic HID operation.

Thermals noise power

The units are passively cooled with no fans, so they add no audible noise to the room. Power draw is limited to the single included adapter feeding both ends through the CAT link. The compact metal enclosures measure 5.43 x 5.35 x 1.46 inches and weigh 9.52 ounces each, dissipating heat through their casing during continuous operation.

Highlights

  • Extends HDMI and USB control up to 60 metres over a single CAT6 cable
  • Powers the receiver through the same CAT cable so only one adapter is needed
  • Delivers 1080p at 60 Hz with 3D and HDR support for clear visuals
  • Provides a local HDMI loop-out on the transmitter for a nearby display
  • Carries multichannel audio up to 7.1 including Dolby Digital and DTS 5.1

Specifications

TypeHDMI, USB
Computer Connections1 Port
Video Resolution1920 x 1080
ApplicationHDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, POC,HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
FeaturesLong range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
Video resolution:Up to 576P,720P,1920x1080P@60Hz,3D,HDR;
Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;
POC function:Power over CAT cable,only need one power adapter;
HDMI loop out function:The transmitter with one HDMI local loop out;
Uncompressed mode:ZERO Delay,No loss;
KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
Male to male:one TX to one RX applicataion;
Video standard:compliance with HDMI 1.4b and HDCP 1.4 ,and compliant DVI standard;
Built-in autom
Dimensions5.43 x 5.35 x 1.46 inches
Weight9.52 Ounces
Package ContentsHDMI KVM extender transmitter x1
HDMI KVM extender receiver x1
Power adapter x1
User manual x1

Questions about this item

How far can I run a Cat6 cable before the 1080p signal degrades?

The extender supports up to 60 metres over a single AWG23 Cat6 cable; Cat5e reaches 50 metres and Cat5 reaches 40 metres.

Does the transmitter or receiver get hot when powered continuously?

The unit uses Power over Cable so only one adapter is needed, and the compact 5.43 x 5.35 x 1.46 inch enclosure runs without a fan.

Which cables and peripherals must I provide myself?

You supply the Cat5e/6 patch cable up to the distance limit, a USB Type-B cable to the PC, and a wired or wireless USB keyboard and mouse.
