AUTYUE

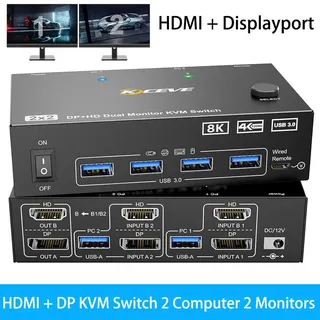

AUTYUE HDMI+DP KVM Switch 2×2 8K60 4K144 4×USB 3.0 Wired Remote
Switches two computers across dual monitors at up to 8K60 or 4K144 with four USB 3.0 ports and a wired remote
- TypeHDMI+Displayport KVM Switch 2 Monitors 2 Computer
- PC ConnectorsHDMI2.1, DP 1.4, USB 3.0
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolutionsupports up to 8K@60Hz, 4K@144Hz resolutions and is backward
- PC SelectionPush Buttons and Wired Remote
- Share two computers across dual monitors with HDMI 2.1 and DP 1.4 video
- Switch instantly via front buttons or 1.5 m wired remote
- Connect keyboard, mouse, printer and more through four USB 3.0 ports
- Choose extended desktop or mirrored display modes per session
- Compact 4.72 × 2.56 × 1.18 inch unit powered by 12 V adapter

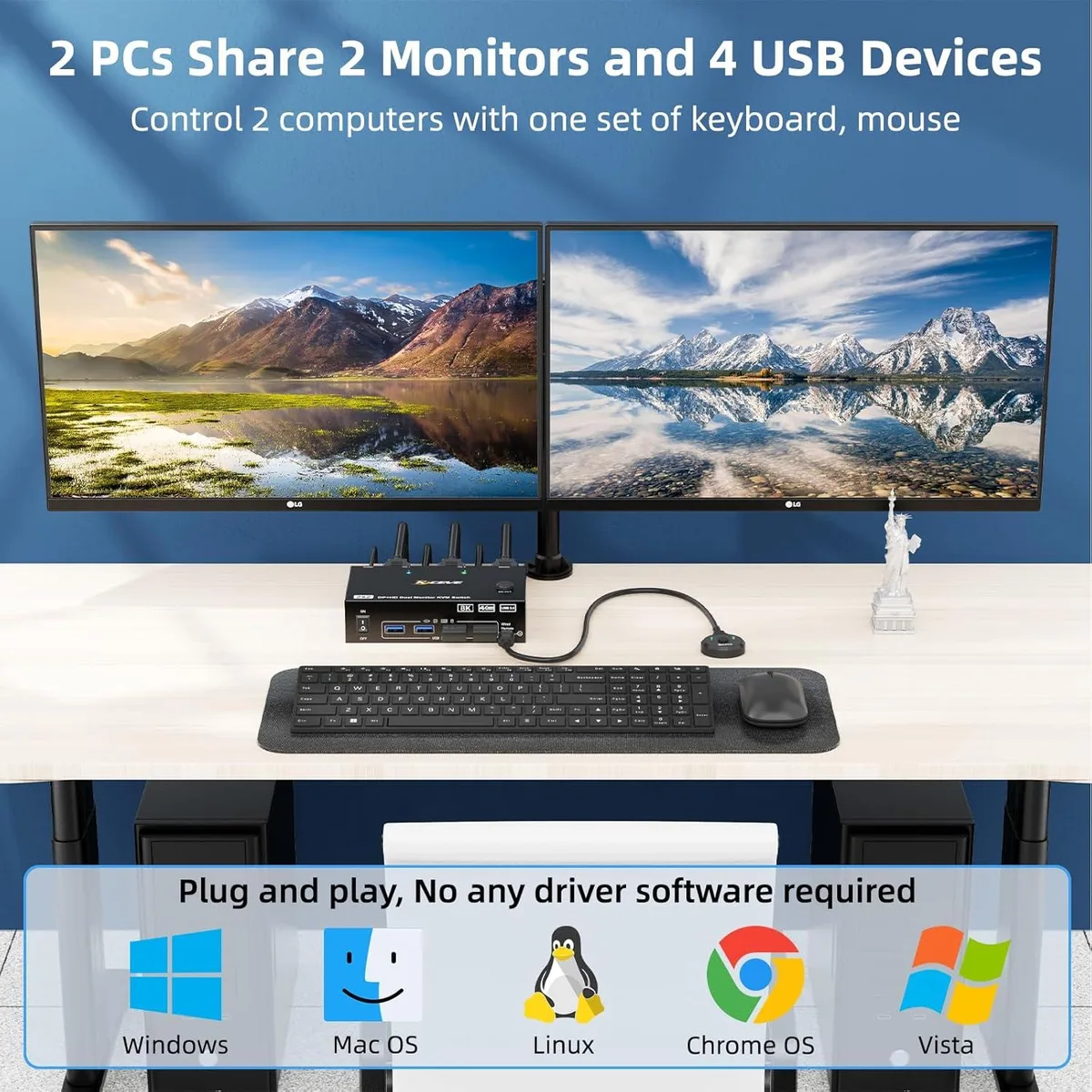

Dual-computer KVM for two monitors
This AUTYUE KVM switch lets one keyboard and mouse control two computers while sharing two displays. It accepts HDMI 2.1 and DisplayPort 1.4 inputs from each system and provides four USB 3.0 ports for peripherals such as keyboards, mice or printers. The unit includes a wired remote, a 12 V power adapter and two 1.5 m USB 3.0 cables for immediate setup.
Extended and copy display modes under load
Users can select extended mode to spread the desktop across both monitors or copy mode to mirror the same image on each screen. LED indicators show which computer is active, and switching is performed by front-panel push buttons or the tethered remote. The 12 V adapter supplies steady power so that both video paths and all four USB 3.0 ports remain stable during prolonged sessions.
HDMI 2.1 and DisplayPort 1.4 bandwidth limits
The switch passes video up to 7680×4320 at 60 Hz and 3840×2160 at 144 Hz, with backward compatibility for lower resolutions. Achieving the highest refresh rates requires cables and source devices that fully support the HDMI 2.1 and DisplayPort 1.4 specifications. Each computer must provide one HDMI, one DisplayPort and one USB connection to enable both video outputs and USB sharing.
Highlights
- Share two computers across dual monitors with HDMI 2.1 and DP 1.4 video
- Switch instantly via front buttons or 1.5 m wired remote
- Connect keyboard, mouse, printer and more through four USB 3.0 ports
- Choose extended desktop or mirrored display modes per session
- Compact 4.72 × 2.56 × 1.18 inch unit powered by 12 V adapter
Specifications
| Type | HDMI+Displayport KVM Switch 2 Monitors 2 Computer |
|---|---|
| PC Connectors | HDMI2.1, DP 1.4, USB 3.0 |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | supports up to 8K@60Hz, 4K@144Hz resolutions and is backward compatible |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI + Displayport |
| LED Indicators | Yes |
| Power Features | with 12V Power Adapter |
| USB Features | with USB support |
| Application | This 2 monitors KVM switch allows you to effortlessly manage 2 computers to share 2 monitors and 4 USB devices together. You can choose expanded mode and copy mode between two monitors as required,the extended mode can output two different screens and the mirror mode can output two identical screens. |
| Features | Support up to 8K@60Hz/4K@144Hz; Dual Monitor KVM Switches with 4 USB 3.0 Ports; 2 Switching Mode&LED Indicator; Extended Mode&Copy Mode |
| Dimensions | About 4.72 x 2.56 x 1.18 inch |
| Weight | 300g |
| Package Contents | 1* 8K HDMI DP KVM switch; 2*USB 3.0 Cable(1.5M); 1*Wired Remote(1.5M); 1*12V Power adapter and 1*User Manual |
Questions about this item
Does the 12 V power adapter mean the KVM switch runs hot or draws much power during all-day use?
The included 12 V adapter simply powers the switch and its four USB 3.0 ports; the unit itself is compact at 4.72 x 2.56 x 1.18 inch and 300 g, so heat output is minimal in normal operation.

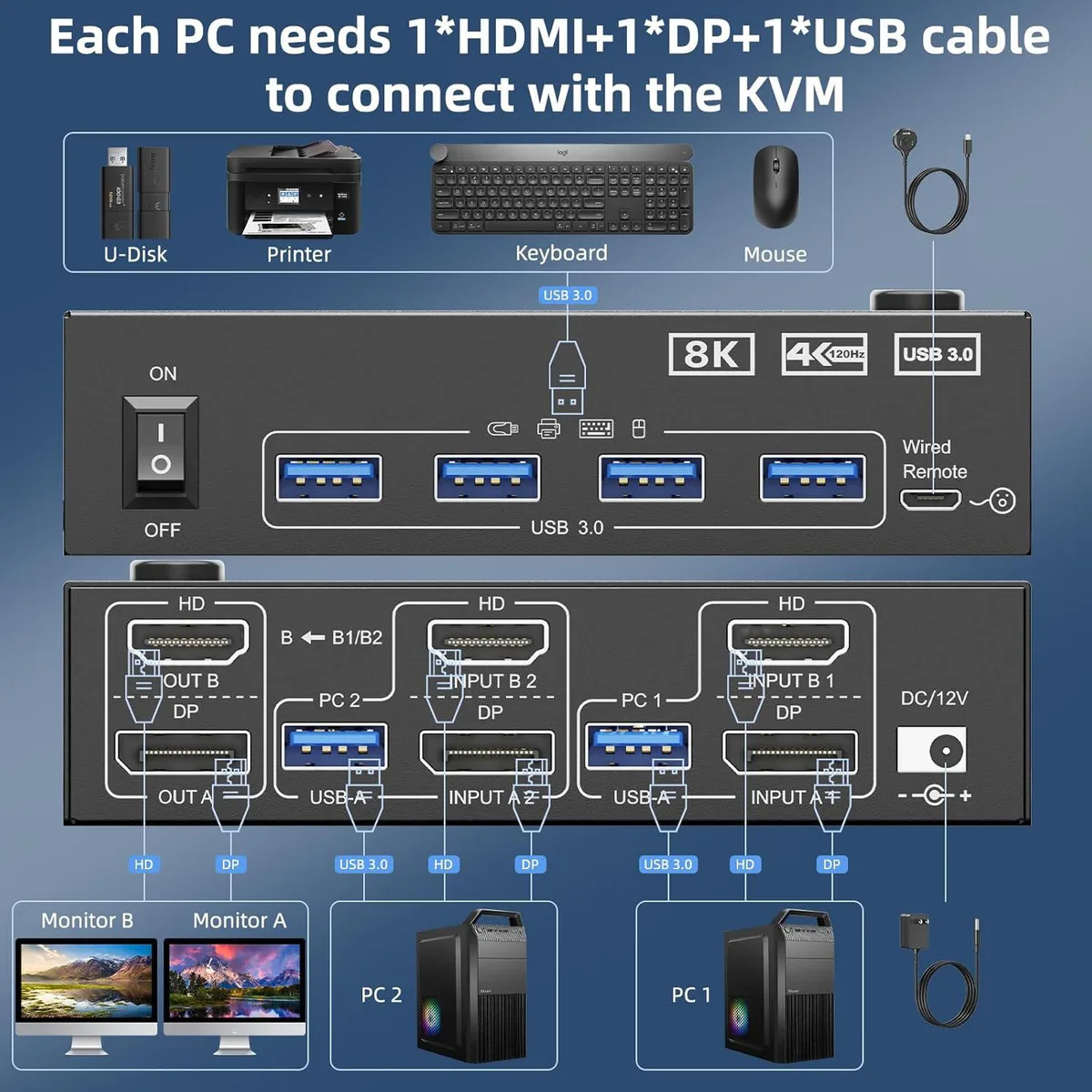

My two PCs only have HDMI and USB-C — what cables must I already own to connect them?
Each computer needs one HDMI 2.1 cable, one DisplayPort 1.4 cable and one USB 3.0 cable to the KVM; if a PC only has USB-C you will need a USB-C to HDMI and a USB-C to DisplayPort adapter or cable.
Will my older 4 K 60 Hz monitors work alongside the 8 K 60 Hz capability?
Yes — the switch is backward compatible and supports resolutions down to 3840 x 2160 at 60 Hz as well as the maximum 7680 x 4320 at 60 Hz and 3840 x 2160 at 144 Hz.
