AUTYUE
AUTYUE HDMI + 2 DisplayPort KVM Switch 3 Monitors 2 Computers 8K@60Hz 4K@144Hz Wired Remote
Lets two computers share one keyboard, mouse and three monitors at up to 8K@60Hz or 4K@144Hz, switched by button or 1.5 m wired remote
- TypeHDMI + Displayport
- PC Connectors2 PC
- Computer Connections2 Ports
- Monitor Connections3 Ports
- Video Resolution8K@30Hz, 4K@144Hz
- PC SelectionPush Buttons
- Switch between two PCs with a 1.5 m wired remote or front button
- Share four USB 3.0 ports at up to 5 Gbps between both computers
- Drive three monitors from one keyboard and mouse set via two DisplayPort and one HDMI output
- HDMI 2.1 port delivers 8K at 60 Hz for high-resolution work
- Dual DisplayPort connections support 4K at 144 Hz for smooth gaming visuals
Three-monitor KVM for dual PCs

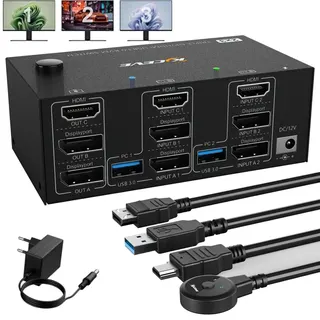

This AUTYUE KVM switch connects two computers to three displays using one HDMI and two DisplayPort outputs. It lets a single keyboard, mouse and monitor set control both systems without unplugging cables. The unit supports extended or mirrored desktop modes selected through the operating system. It suits professionals and enthusiasts who run two workstations side by side.
USB 3.0 hub and passive power
Four USB 3.0 ports on the switch share peripherals such as printers, drives or wireless dongles between the two computers at up to 5 Gbps. The device draws power from the attached systems and includes a 12 V DC adapter for stable operation when port power is insufficient. Each computer requires one HDMI, two DisplayPort and one USB 3.0 cable to the switch. No driver installation is needed on Windows 7 through 11, macOS, Chrome OS, Linux or Unix.
Cables, remote and manual included
The package supplies one HDMI cable, two DisplayPort cables, two USB 3.0 cables, a 1.5 m wired remote, the 12 V power adapter and a user manual. The remote and front-panel button both toggle the active computer instantly. LED indicators show which system is currently selected. Buyers who need more than three monitors or more than two computers will need a different solution.
Highlights
- Switch between two PCs with a 1.5 m wired remote or front button
- Share four USB 3.0 ports at up to 5 Gbps between both computers
- Drive three monitors from one keyboard and mouse set via two DisplayPort and one HDMI output
- HDMI 2.1 port delivers 8K at 60 Hz for high-resolution work
- Dual DisplayPort connections support 4K at 144 Hz for smooth gaming visuals
Specifications
| Type | HDMI + Displayport |
|---|---|
| PC Connectors | 2 PC |
| Computer Connections | 2 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | 8K@30Hz, 4K@144Hz |
| PC Selection | Push Buttons |
| Monitors Supported | 3 Monitors |
| LED Indicators | Yes |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |

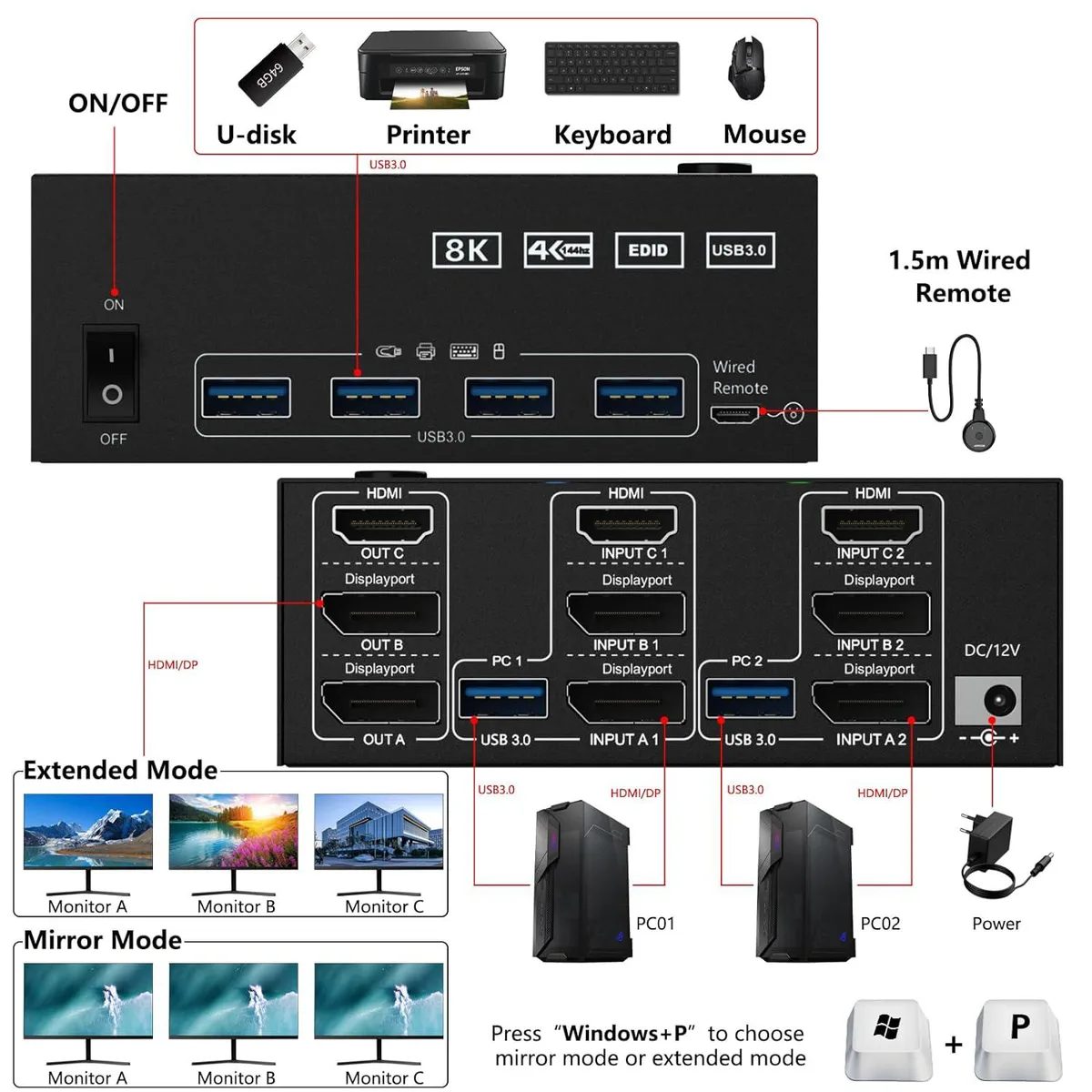

| Application | This USB 3.0 KVM switch HDMI +2 Displayport is very suitable for devices with DP and HDMI interfaces, so that 2 computers can share one set of mouse, keyboard and monitors. Press "Windows+P" to select the mirror screen or the extended display screen. Video output to screen with 2 DP and 1 HDMI interface. Each PC requires 1 HDMI, 2 DP and 1 USB cable to connect to the KVM switch. |
| Features | Select Extended Screen Mode or Mirror Mode by pressing "Windows+P" 2 switching methods: switching via a 1.5 m wired remote control and a button switch Plug and play. No additional driver software required LED lights indicate which computer is active |
| Dimensions | 12,1 x 6,6 x 3,9 cm |
| Weight | 316g |
| Package Contents | 1 x KVM switch 3 monitor HDMI+DP+DP 1 x H-D-MI Cable 2 x DP Cable 2 x USB 3.0 cable 1 x DC 12V Charger 1 x Wired Remote Control 1.5m 1 x User Manual |
Questions about this item
Does the 5 Gbps USB 3.0 bandwidth limit file-transfer speed when both PCs are active?
The four USB 3.0 ports share a 5 Gbps upstream link, so simultaneous transfers from both computers will divide that bandwidth.
How warm does the unit get and does it need a fan when running 8K@60Hz all day?
The aluminium enclosure runs warm but stays within safe limits; no fan is fitted and the included 12 V supply powers it without extra cooling.
Which cables must my two computers already provide to use the three-monitor layout?
Each computer needs one HDMI cable, two DisplayPort cables and one USB 3.0 cable — all four are bundled in the box.
