AUTYUE
AUTYUE AT-SW223 2-Port DP KVM Switch 8K60 4K120
Control two computers on dual DisplayPort monitors up to 8K60 or 4K120 with four USB 3.0 ports and push-button or remote switching
- TypeDisplayport KVM Switch 2 Monitors 2 Computers
- PC ConnectorsDP1.4, USB 3.0
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolutionup to 8K@60Hz and 4K@120Hz,providing a stunning ultra-high-d
- PC SelectionPush Buttons and Wired Remote
- Control two computers from one dual-monitor desk setup
- Switch instantly via front buttons or wired remote
- Share four USB 3.0 peripherals at up to 5 Gbps
- Drive 8K at 60 Hz or 4K at 120 Hz on both screens
- Supports duplicate and extended display modes

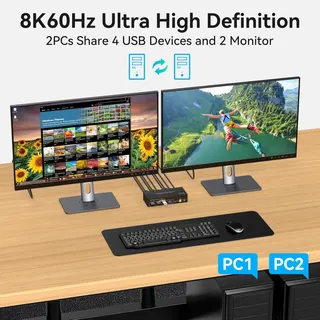

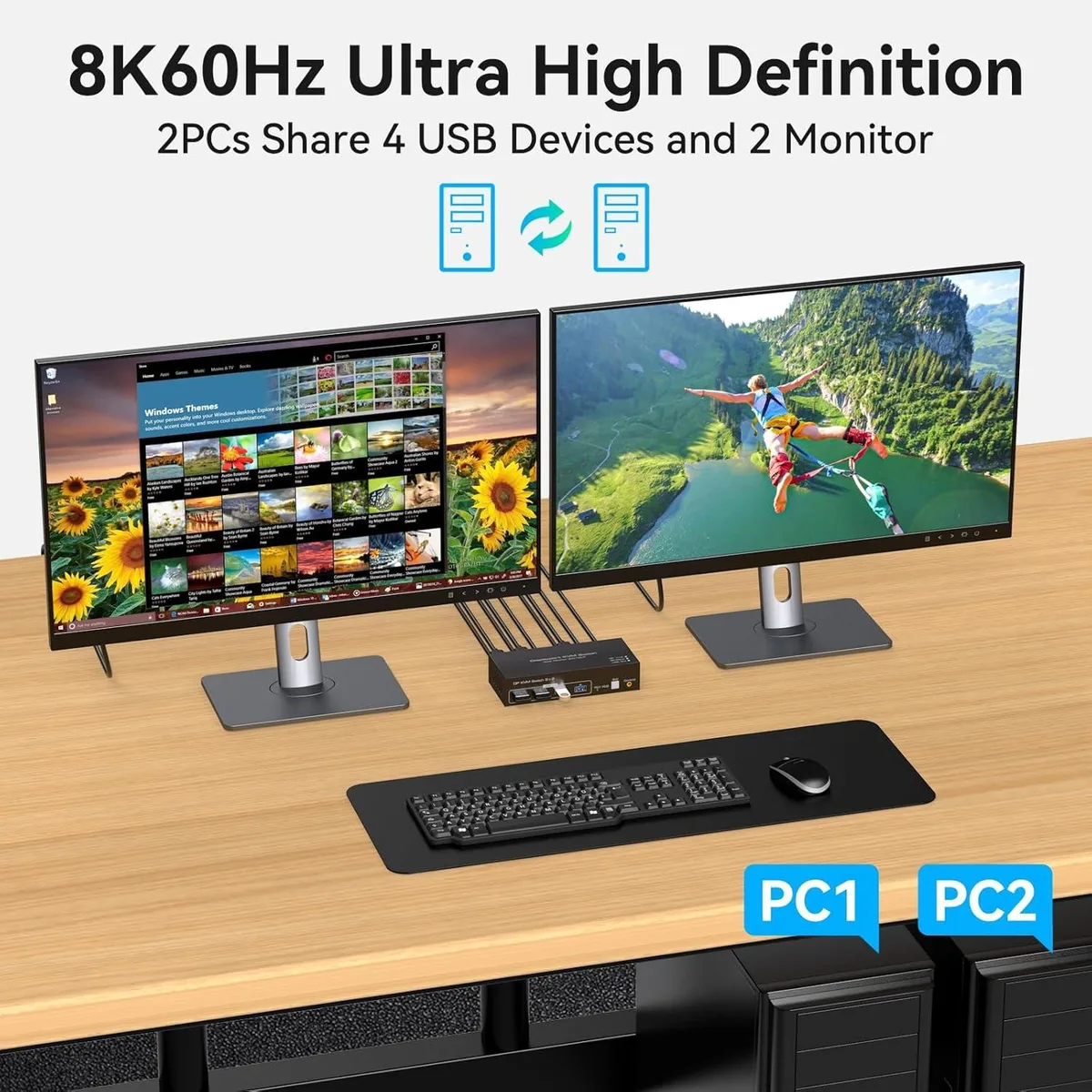

Dual-computer dual-monitor control
The AUTYUE AT-SW223 is a DisplayPort KVM switch that lets one keyboard, one mouse and two monitors drive two separate computers. It targets professionals and enthusiasts who need to keep two systems active on a single desk without constantly swapping cables. The switch handles video routing and USB peripheral sharing in one compact unit.
Check your ports and cables before buying

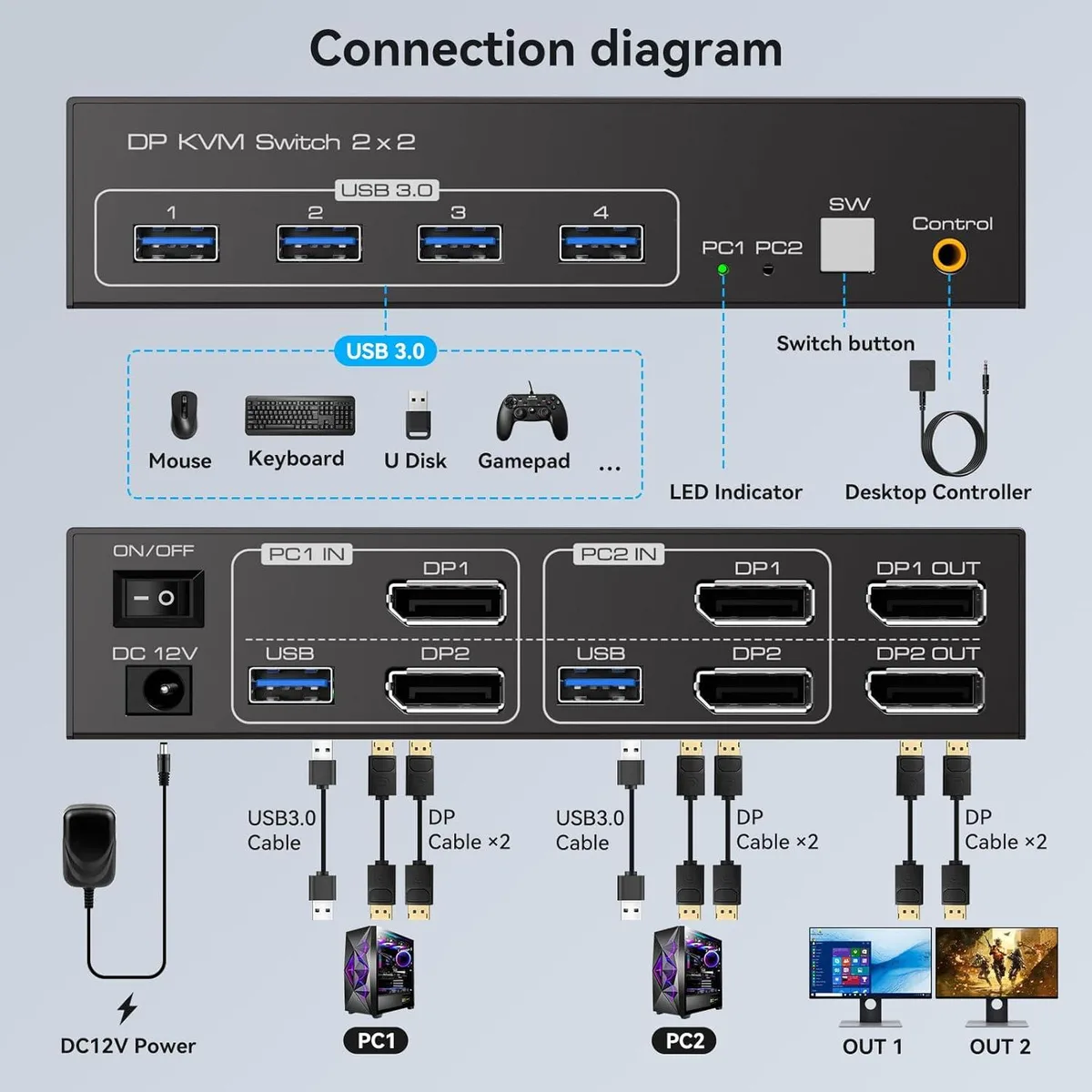

Both computers must each provide two DisplayPort 1.4 outputs and both monitors must accept DisplayPort input. An 8K 60 Hz signal requires 8K-capable sources, 8K-capable displays and a 4K-rated cable; otherwise the link falls back to 4K 120 Hz, 2K 144 Hz or 1080p. The unit ships with a 12 V power adapter, so a free mains socket is needed.
Two display modes and four USB 3.0 ports
Duplicate mode mirrors the same image on both screens while extended mode spreads the desktop across them, giving flexibility for multitasking or presentation setups. Four USB 3.0 ports running at up to 5 Gbps let keyboards, mice, printers, scanners or external drives stay connected to the switch and follow the active computer. Switching is done by front-panel push buttons or the included wired remote.
Highlights
- Control two computers from one dual-monitor desk setup
- Switch instantly via front buttons or wired remote
- Share four USB 3.0 peripherals at up to 5 Gbps
- Drive 8K at 60 Hz or 4K at 120 Hz on both screens
- Supports duplicate and extended display modes
Specifications
| Model | AT-SW223 |
|---|---|
| Type | Displayport KVM Switch 2 Monitors 2 Computers |
| PC Connectors | DP1.4, USB 3.0 |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | up to 8K@60Hz and 4K@120Hz,providing a stunning ultra-high-definition visual effect.It is also downward compatible with 2K@144Hz,1080P,etc. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | Displayport Dual Monitor |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | with 12V Power Adapter |
| USB Features | DP KVM switcher contains 4 USB 3.0 ports,which can share peripheral devices such as printers,scanners,keyboards,mice,and other external USB drives.The transmission speed of the USB3.0 interface is up to 5Gbps,making the connection between USB devices and signal sources more smooth and downward compatible with USB 2.0. |
| Application | The DP KVM Switches allow users to control two computers using one set of keyboard,mouse and two-monitor setup.There is no need to plug and unplug cables,reducing desktop clutter and simplifying wiring to improve your efficiency and usage experience. |
| Features | Easily share two monitors and a mouse and keyboard without having to unplug and unplug repeatedly. Two display modes: duplicate mode and extended mode. 4K60Hz Ultra HD display, backward compatible with 2K@144Hz, 1080P, etc. Two switching modes, allowing you to easily switch back and forth between two computers. 4 USB3.0 ports for connecting multiple devices. |
| Dimensions | 20 x 15 x 5.6 cm |
| Weight | 540 g |
| Package Contents | 1 x DP KVM USB Switch 2x2 2 x USB 3.0 data cable 1 x DC power adapter 1 x External switch kit 1 x User Manual |
Questions about this item
Does the AT-SW223 come with all cables needed to connect two computers and two monitors, or must I buy extra DisplayPort leads?
The box contains the KVM unit, two USB 3.0 data cables, a 12 V power adapter, a wired remote kit and a manual. DisplayPort cables for the four video links are not included.
Should I choose this 2-port model or look for a 4-port version if I only have two computers?
This model is built for exactly two computers and two monitors, each computer needing two DisplayPort 1.4 outputs and each monitor a DisplayPort input. A larger switch would add unused ports and cost.
What does the 8K60 4K120 rating mean when I plug in my actual PC and screens?
You will see 8K at 60 Hz only if both the computer and the monitor support 8K60 and a certified 4K cable is used; otherwise the switch falls back to 4K120, 2K144 or 1080P.
