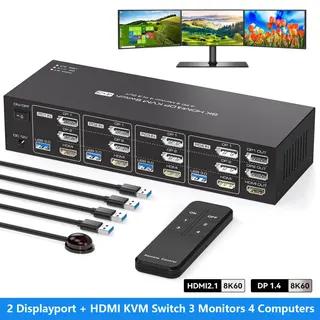

AUTYUE 8K60 4K144 KVM Switch 3 Monitors 4 Computers 2DP+HDMI 4 USB 3.0 Wired Remote
Share four computers across three monitors at up to 8K@60Hz or 4K@144Hz with four USB 3.0 ports and wired remote switching
- Type2 Displayport + 1 HDMI KVM Switch 3 Monitors 4 Computers
- PC ConnectorsDP 1.4 & HDMI 2.1
- Computer Connections4 Ports
- Monitor Connections3 Ports
- Video ResolutionSupporting both DP 1.4 and HDMI 2.1 standards, this switch d
- PC SelectionPush Buttons
- Share four computers across three monitors with 8K60 and 4K144 support
- Switch instantly via front buttons or wired IR remote
- Four USB 3.0 ports deliver 5 Gbps peripheral sharing
- Extended and copy display modes expand or mirror your workspace
- DP 1.4 and HDMI 2.1 inputs handle resolutions down to 720p

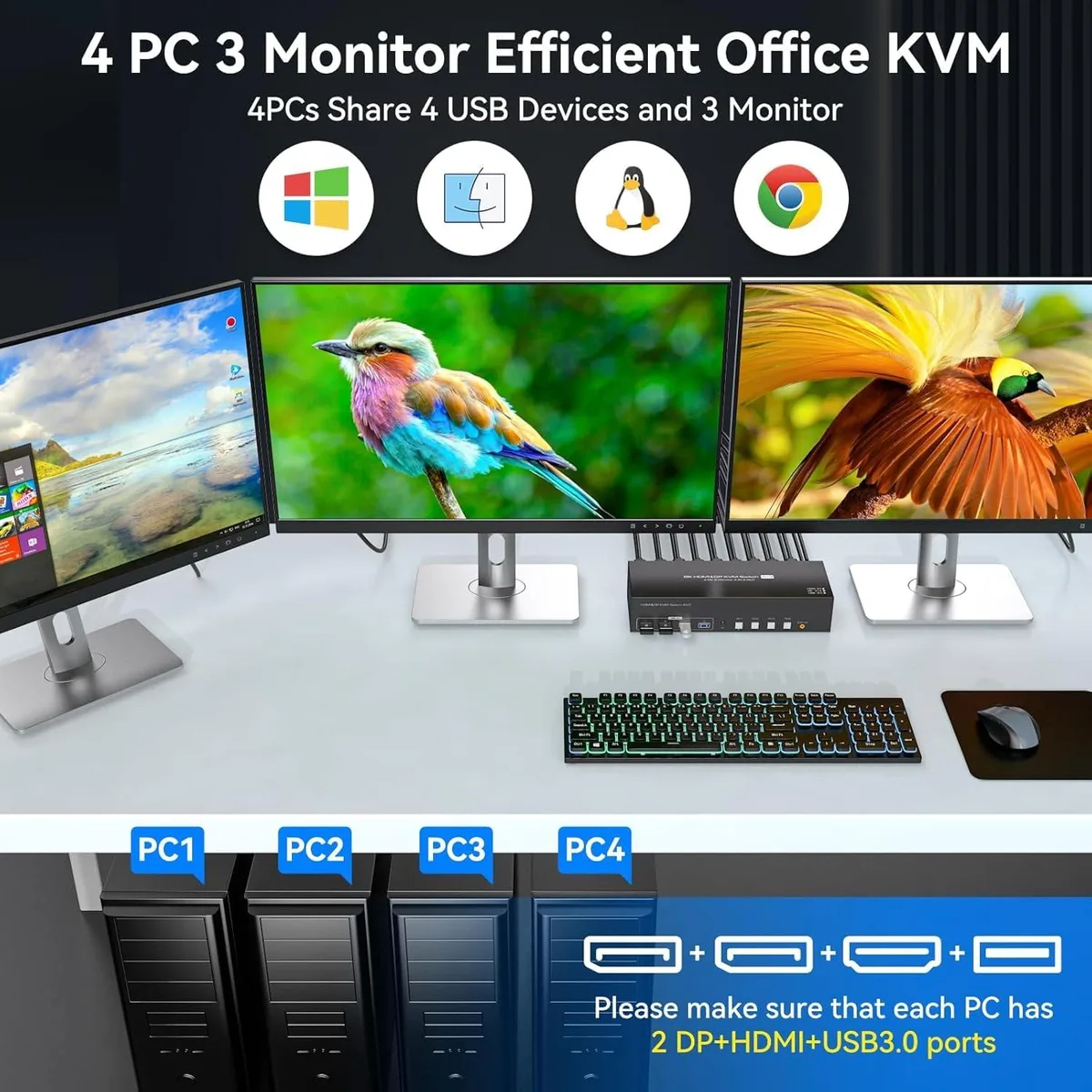

Three-Monitor KVM for Four PCs

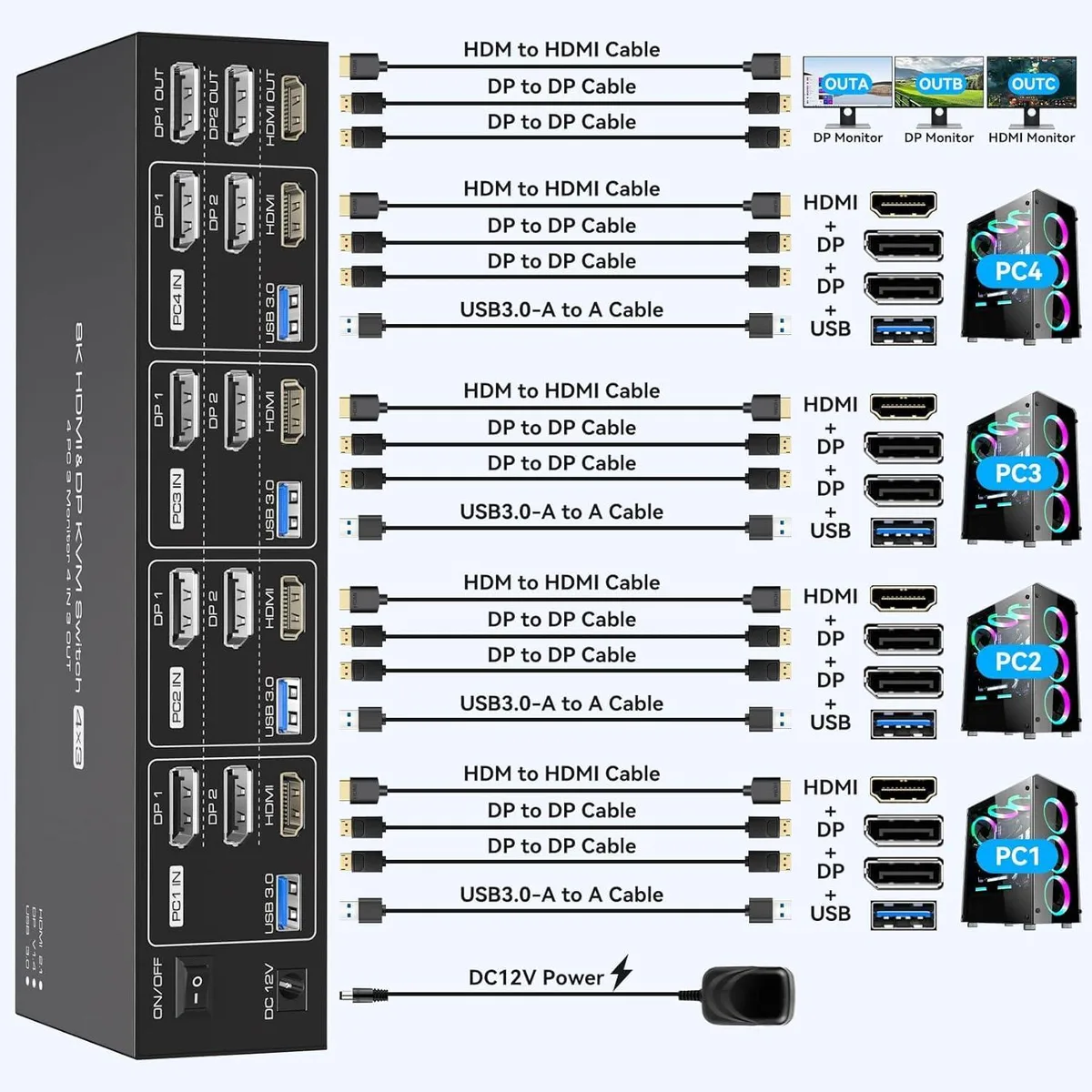

The AUTYUE KVM switch lets four computers share three displays and four USB 3.0 peripherals from a single keyboard and mouse. Each host must provide one HDMI and two DisplayPort outputs to use all three monitor ports. A 12 V DC adapter powers the unit so the switch does not draw from host USB ports.
Sustained 8K60 and 4K144 Operation
DP 1.4 and HDMI 2.1 links maintain 8K at 60 Hz and 4K at 144 Hz without throttling during long sessions. The supplier notes that reliable 8K output requires certified cables no longer than three feet or a high-quality docking station. Lower resolutions such as 4K60, 1080p or 720p remain stable on standard cables.
Four-Computer, Three-Screen Topology
This model supports exactly four host connections and three monitor connections in either extended or mirrored mode. Builders needing five or more hosts, or a single-monitor setup, will find the port count unsuitable. Switching is handled by front-panel buttons or the included IR remote with extender.
Highlights
- Share four computers across three monitors with 8K60 and 4K144 support
- Switch instantly via front buttons or wired IR remote
- Four USB 3.0 ports deliver 5 Gbps peripheral sharing
- Extended and copy display modes expand or mirror your workspace
- DP 1.4 and HDMI 2.1 inputs handle resolutions down to 720p
Specifications
| Series | KVM Switch 3 Monitors 4 Computers |
|---|---|
| Type | 2 Displayport + 1 HDMI KVM Switch 3 Monitors 4 Computers |
| PC Connectors | DP 1.4 & HDMI 2.1 |
| Computer Connections | 4 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | Supporting both DP 1.4 and HDMI 2.1 standards, this switch delivers resolutions up to 8K@60Hz and 4K@144Hz. It is backward compatible with 4K@60Hz, 4K@30Hz, 1080P, 720P, and more. |
| PC Selection | Push Buttons |
| LED Indicators | Yes |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | Equipped with 4 USB 3.0 ports, this switch allows you to share peripherals like keyboards, mice, printers, and scanners. USB 3.0 technology enables data transfer speeds of up to 5 Gbps, significantly outperforming the 480 Mbps limit of USB 2.0. |
| Application | This KVM switch allows 4 computers to share 3 high-resolution monitors and 4 USB 3.0 peripherals, such as mice, keyboards, printers, USB drives, or game controllers. |
| Dimensions | 11.42 x 4.72 x 3.94 inches |
| Package Contents | 1 x KVM Switch, 4 x USB Cables, 1 x IR Extend, 1 x IR Remote, 1 x Power Adapter, 1 x User Manual |
Questions about this item
Does the 12 V adapter keep the unit cool and quiet during continuous use?
The switch includes a 12 V power adapter and has no fan, so it runs silently with minimal heat during all-day operation.
Must each of the four computers provide two DisplayPort 1.4 outputs and one HDMI 2.1 output to use the three-monitor layout?
Yes — every connected PC needs 2× DP 1.4 and 1× HDMI 2.1 ports to drive the three screens through this KVM.
Will a legacy monitor limited to 1080P or 720P work alongside newer 8K-capable displays on the same switch?
The unit is backward compatible with 1080P, 720P and other lower resolutions, so older monitors function normally beside 8K@60Hz or 4K@144Hz screens.
