AUTYUE
AUTYUE 802DH KVM Switch 8 Port HDMI DisplayPort 2 Monitors 8 Computers 4K@60Hz
Connects eight computers to two monitors at up to 4K 60 Hz with EDID simulation, four USB 3.0 ports and three switching methods
- Type8 Port HDMI Displayport KVM Switch 2 Monitors 8 Computers
- PC ConnectorsHDMI, Displayport
- Computer Connections8 Ports
- Monitor Connections2 Ports
- Video Resolution8 PC 2 monitors KVM switch displayport HDMI support resoluti
- PC SelectionPush Buttons
- Controls 8 computers with dual monitors
- EDID simulation keeps window layouts intact
- 4K@60 Hz video with 2560×1440@120 Hz support
- Four USB 3.0 ports at 5 Gbps data rate
- Three switching methods: buttons, remote, RS232
8-Port Dual-Monitor KVM Switch
The AUTYUE 802DH connects eight computers to two displays and four USB peripherals. It accepts both HDMI and DisplayPort inputs from each system and drives resolutions up to 4K@60Hz with backward compatibility to 4K@30Hz and 2560*1440@120Hz. A 12V power adapter and eight 1.5 m USB 3.0 cables are included.
Suited For Multi-System Workstations
Operators who need simultaneous access to eight PCs while keeping window layouts intact will benefit from the EDID simulation that preserves monitor configuration during switching. Buyers who require more than two displays or need single-cable USB-C video input from each computer should look elsewhere.
Build Integration Requirements

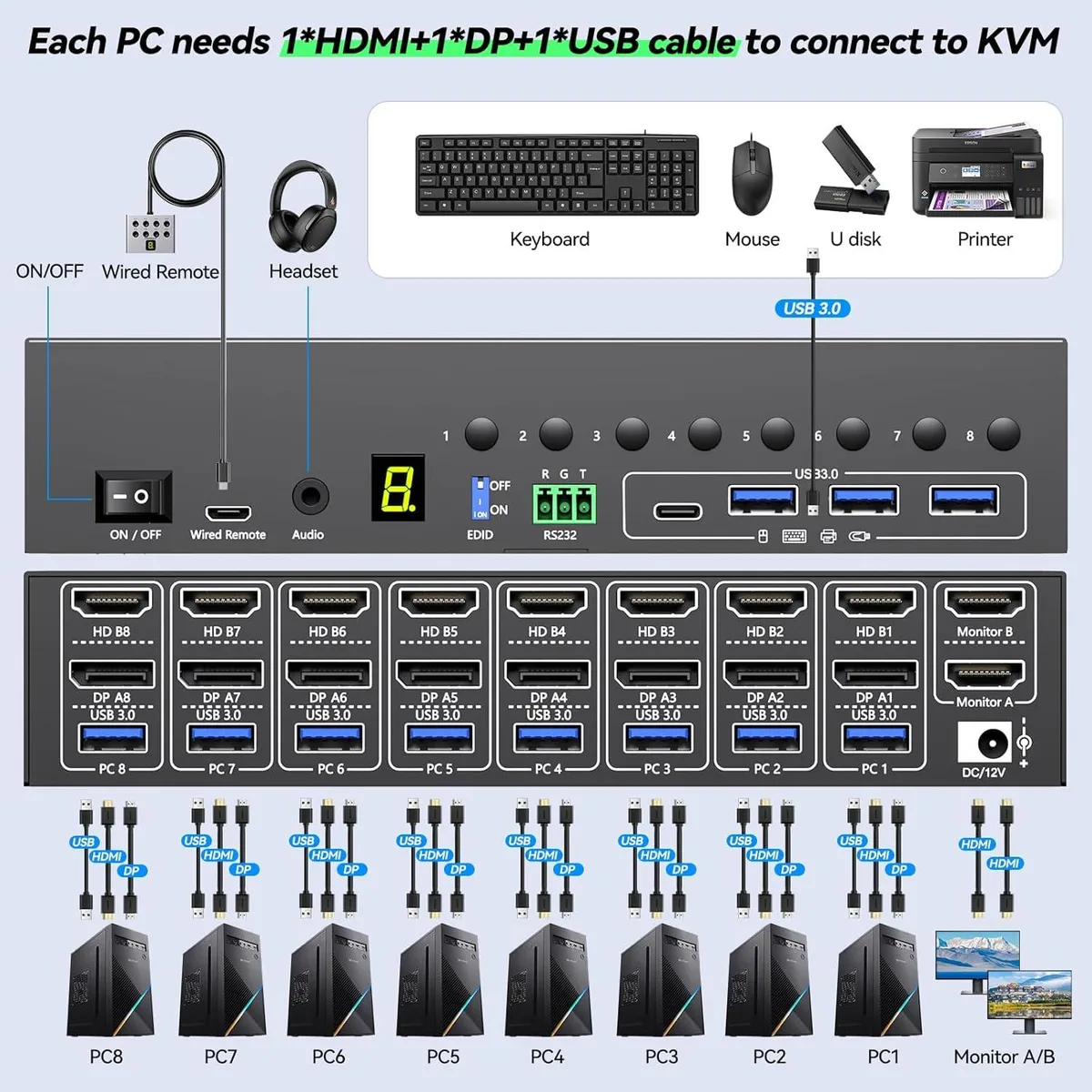

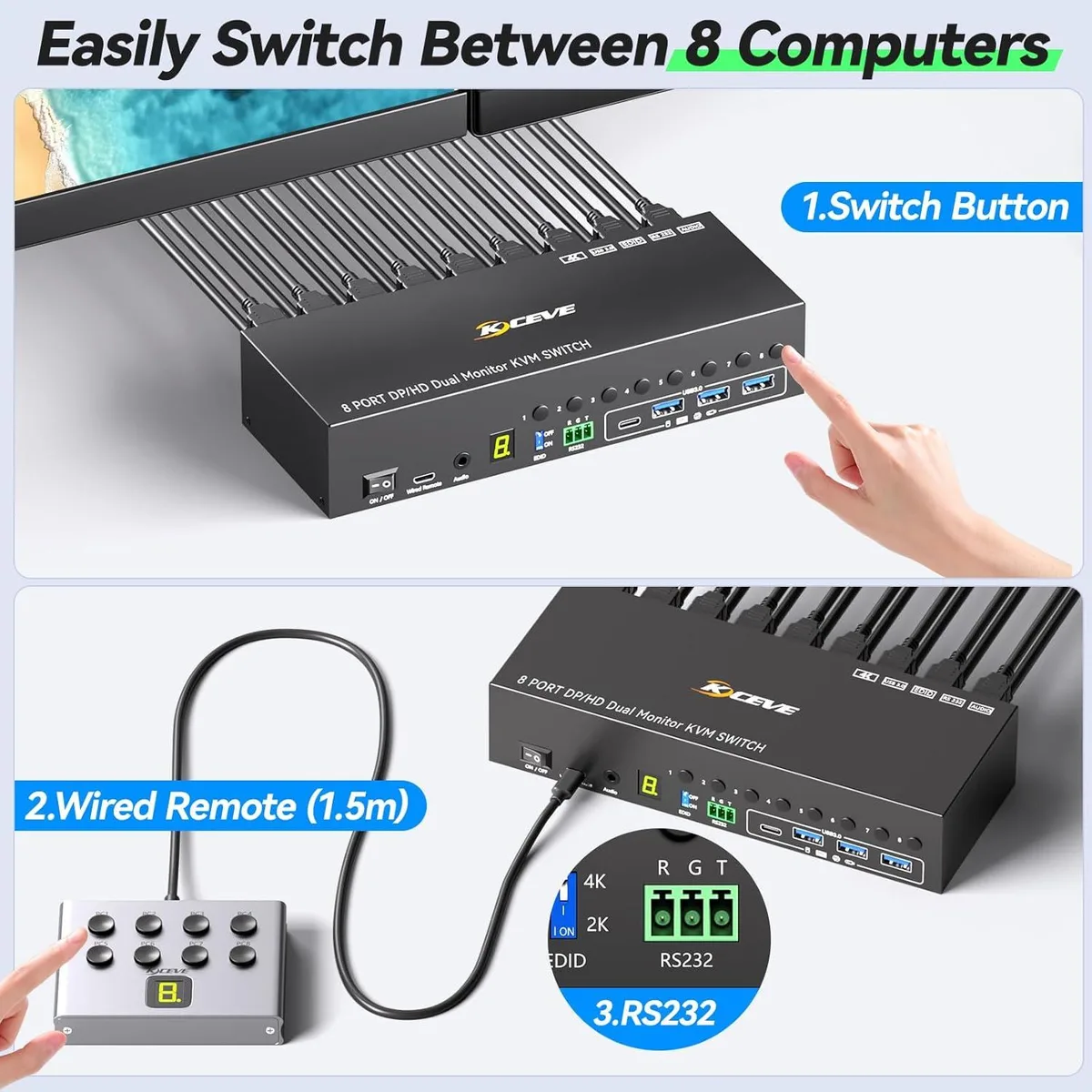

Each connected computer must supply one HDMI, one DisplayPort and one USB cable to enable dual-monitor output and peripheral sharing. The unit provides four USB 3.0 ports (one USB-C, three USB-A) for keyboard, mouse, storage and other devices at up to 5 Gbps. Switching is handled via front-panel buttons, a 1.5 m wired remote with digital display or RS232 at 115200 baud.
Highlights
- Controls 8 computers with dual monitors
- EDID simulation keeps window layouts intact
- 4K@60 Hz video with 2560×1440@120 Hz support
- Four USB 3.0 ports at 5 Gbps data rate
- Three switching methods: buttons, remote, RS232
Specifications
| Series | KVM Switch 2 Monitors 8 Computers |
|---|---|
| Model | 802DH KVM |
| Type | 8 Port HDMI Displayport KVM Switch 2 Monitors 8 Computers |
| PC Connectors | HDMI, Displayport |
| Computer Connections | 8 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 8 PC 2 monitors KVM switch displayport HDMI support resolution up to 4K@60Hz and backward compatible 4K@30Hz, 2560*1440@120Hz. |
| PC Selection | Push Buttons |
| Monitors Supported | HDMI, Displayport |
| LED Indicators | Yes |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | with 4 USB 3.0 ports(1*USB-C+3*USB-A) for keybaord, mouse, printer, U disk and other USB Peripheral devices.Supports ultra-fast USB 3.0 data transfer up to 5Gbps, transfer files in seconds,10 times faster than USB2.0,make your work and life more convenient. Backward compatibility with USB 2.0/1.1. |
| Application | This 2 monitor KVM switch allows you to effortlessly manage up to 8 computers to share 2 monitors and 4 USB devices together. You can choose expanded mode and copy mode between two monitors as required,the extended mode can output two different screens and the mirror mode can output two identical screens. |
| Features | The 2 displays KVM switch integrates a 8 in 2 out HDMI displayport switch and a 8 in 4 out USB switch,with 4 USB 3.0 ports(1*USB-C+3*USB-A) for keybaord, mouse, printer, U disk and other USB Peripheral devices. |
| Dimensions | 8.27 x 3.15 x 1.77 inches |
| Package Contents | 1*8 port KVM switch; 8*USB 3.0 Cable(1.5M); 1*Wired Remote(1.5M); 1*12V/2A Power adapter and 1*User Manual. |
Questions about this item
What cables must I already have to connect each of the eight computers for dual-monitor operation?
Every computer needs one HDMI cable, one DisplayPort cable and one USB cable plugged into the switch at the same time to drive both monitors and the shared USB devices.
Will my existing 4K@30 Hz or 2560×1440@120 Hz monitors work without changing their settings?
Yes, the switch is backward compatible with 4K@30 Hz and 2560×1440@120 Hz, so older monitors keep their native timing when connected.
How can I confirm the active computer after I press the wired remote or front button?
The front-panel LED for the selected port 1-8 lights up and the wired remote's digital screen displays the same port number.
