AUTYUE 203DH HDMI + 2 DisplayPort KVM Switch 3 Monitors 2 Computers 8K@60Hz 4 USB 3.0
Shares three monitors and four USB 3.0 peripherals between two computers with 8K 60 Hz and 4K 144 Hz video support via HDMI 2.1 and DisplayPort 1.4
- TypeHDMI + 2 Displayport KVM Switch 3 Monitors 2 Computers
- Computer Connections2 Ports
- Monitor Connections3 Ports
- Video ResolutionHDMI 2.1 & DP 1.4 enabled 3 monitor KVM switches supports up
- PC SelectionPush Buttons and Wired Remote
- Monitors SupportedHDMI, Displayport, Displayport

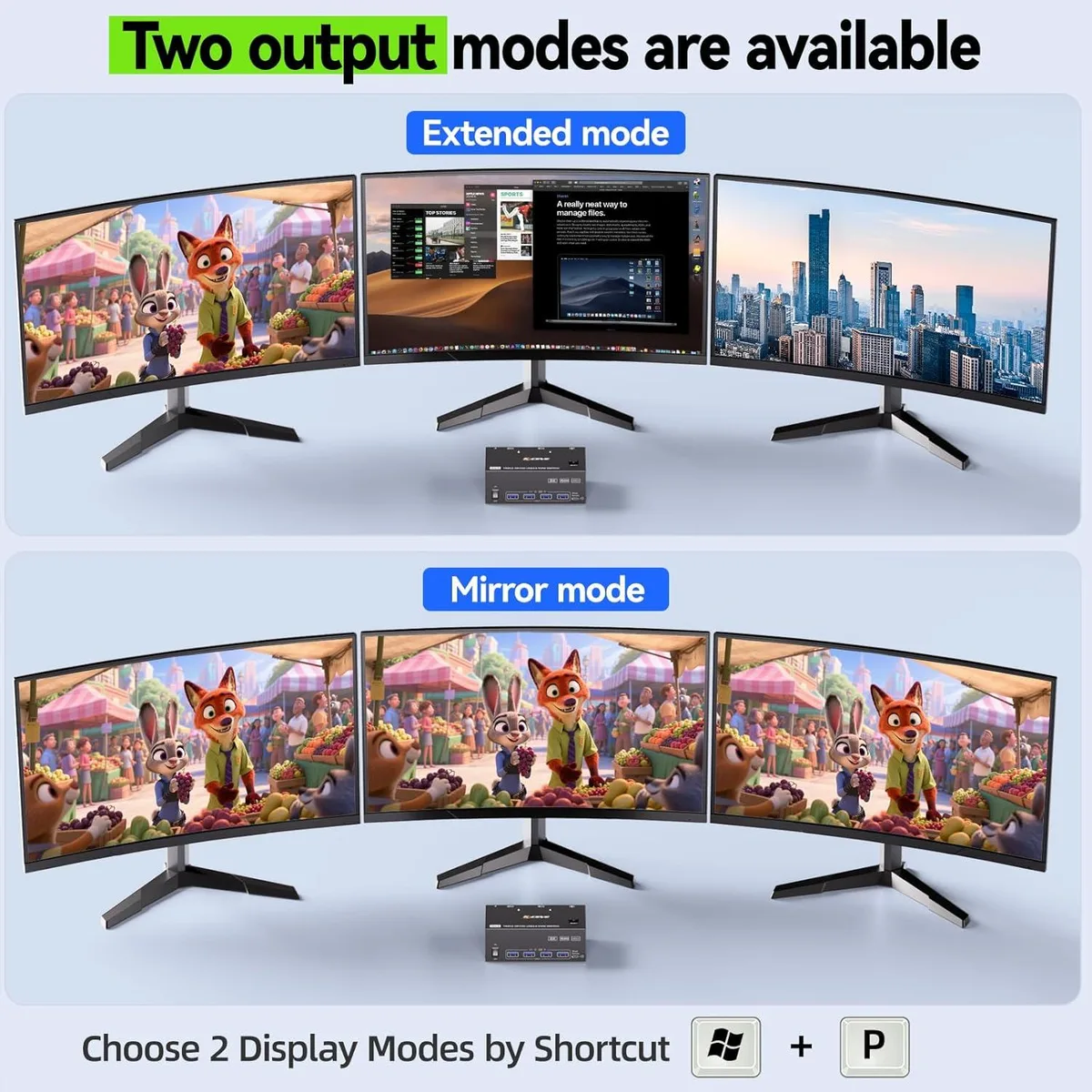

- Share 3 monitors across 2 computers with extended or mirrored modes
- 8K@60Hz and 4K@144Hz via HDMI 2.1 and DP 1.4
- 4 USB 3.0 ports at 5 Gbps for keyboard, mouse, printer, drives
- Driver-free on Windows, Mac, Linux, Unix, Ubuntu with push-button or wired remote
- Compact 4.72 x 2.56 x 1.57 in unit includes 2 USB cables, remote, 12 V adapter
Triple Monitor KVM for Two PCs
This AUTYUE 203DH KVM switch lets you control two computers across three monitors using one keyboard and mouse. It provides one HDMI and two DisplayPort outputs per computer connection, plus four USB 3.0 ports for shared peripherals. Driver-free operation supports Windows, Mac, Linux, Unix and Ubuntu on laptops or desktops. Switch between systems with front-panel buttons or the included wired remote.
Verify Ports and Cables Before Ordering

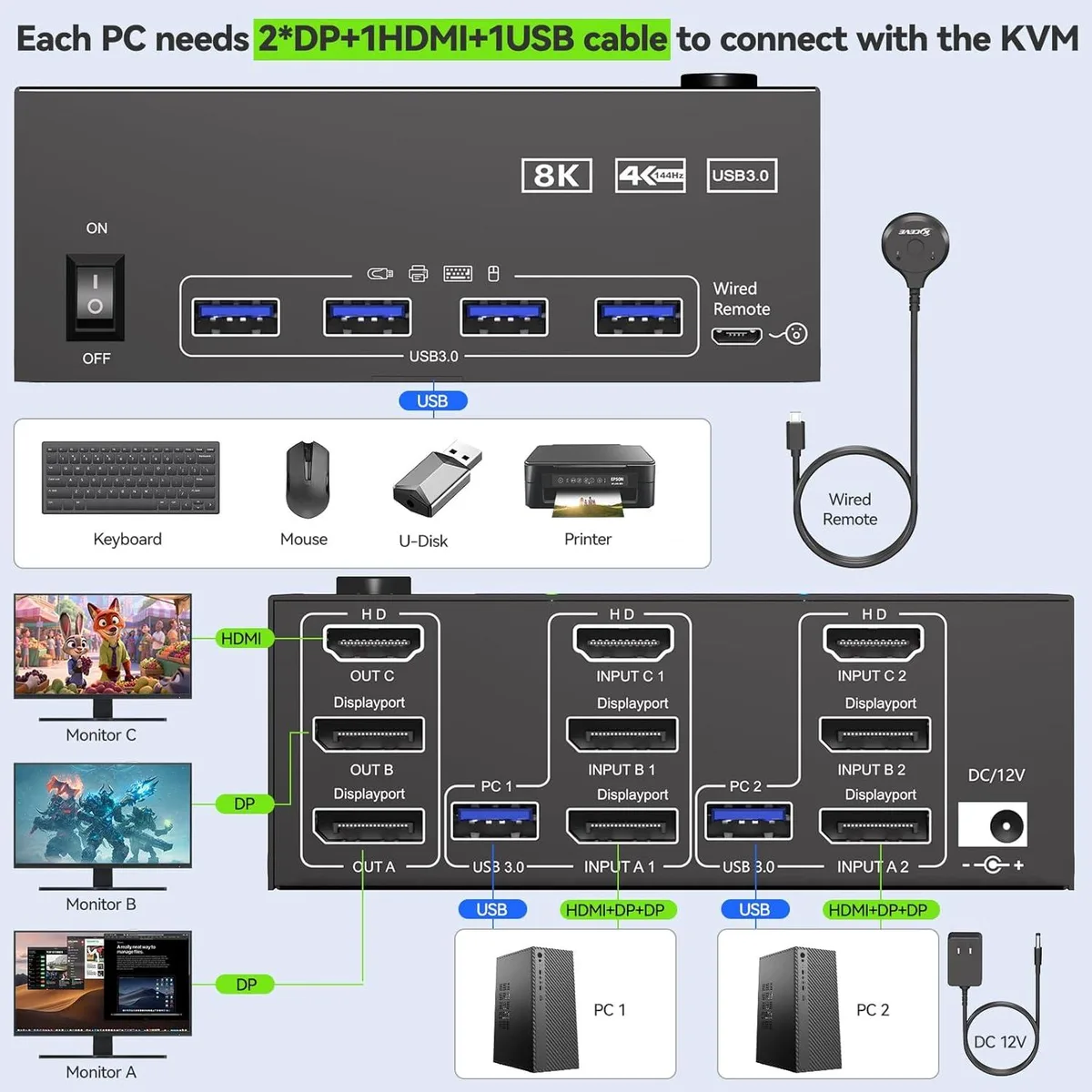

Each computer must connect to the switch with one HDMI cable, two DisplayPort cables and one USB 3.0 cable simultaneously. Confirm your graphics cards or laptops have those three video outputs available. The switch requires the supplied 12 V DC power adapter to operate. Extended and mirrored display modes are configured in the operating system, not on the switch itself.
Replaces Separate Switches and Cable Swapping
The unit consolidates a video matrix and a USB 3.0 hub into one box, removing the need to unplug monitors or peripherals when changing computers. It supports resolutions up to 7680×4320 at 60 Hz and 3840×2160 at 144 Hz via HDMI 2.1 and DP 1.4, with backward compatibility for lower resolutions. The jump is worthwhile when you run two systems daily across three screens and want 5 Gbps peripheral sharing without software drivers.
Highlights
- Share 3 monitors across 2 computers with extended or mirrored modes
- 8K@60Hz and 4K@144Hz via HDMI 2.1 and DP 1.4
- 4 USB 3.0 ports at 5 Gbps for keyboard, mouse, printer, drives
- Driver-free on Windows, Mac, Linux, Unix, Ubuntu with push-button or wired remote
- Compact 4.72 x 2.56 x 1.57 in unit includes 2 USB cables, remote, 12 V adapter
Specifications
| Model | 203DH KVM Switch |
|---|---|
| Type | HDMI + 2 Displayport KVM Switch 3 Monitors 2 Computers |
| Computer Connections | 2 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | HDMI 2.1 & DP 1.4 enabled 3 monitor KVM switches supports up to 8K@60Hz, 4K@144Hz & lower resolutions, delivering crystal-clear visuals with sharp, detailed imagery. Note: Actual resolution depends on your graphics card, monitors and cables. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, Displayport, Displayport |
| LED Indicators | Yes |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | HDMI+ 2*Displayport KVM Switch integrated 4 USB 3.0 ports for keyboard, mouse, printer & USB drives – supports 5Gbps ultra-high-speed data transfer (10x faster than USB 2.0). Ideal for multi-device workflow. |
| Application | This 3 Monitors KVM Switch effortlessly connect 2 PCs to share 3 monitors (supports extended & mirrored display modes) and 4 high-speed USB 3.0 ports. ????????: Extended mode drives 3 distinct screens; mirrored mode duplicates the same content across all 3 displays. |
| Features | Plug & Play |
| Dimensions | 4.72 x 2.56 x 1.57 inches |
| Package Contents | 1* triple monitor KVM Switch, 2* USB 3.0 cable, wired remote, 12V power adapter and user manual. |
Questions about this item
What cables and accessories are included with the AUTYUE 203DH KVM switch, and what must I buy separately?
The box contains the KVM switch, a wired remote, a 12V power adapter, two USB 3.0 cables and a user manual. You must supply one HDMI cable and two DisplayPort cables per computer — six video cables in total — to connect both PCs to the three monitor ports.
How do I decide which video ports to use for 8K@60Hz versus 4K@144Hz on this switch?
The HDMI 2.1 port and the two DisplayPort 1.4 ports each support up to 8K@60Hz and 4K@144Hz. Choose the port that matches your monitor's input; the resolution you actually get will depend on your graphics card, monitor and cable quality.
What does the 8K@60Hz rating mean when I connect this switch to my PC and monitors?
It means the switch can pass a 7680×4320 signal at 60 Hz from a compatible GPU through its HDMI 2.1 or DP 1.4 ports to a capable monitor. The realised resolution will be limited by the weakest link in your graphics card, monitor and cable chain.
