Autonics Corp

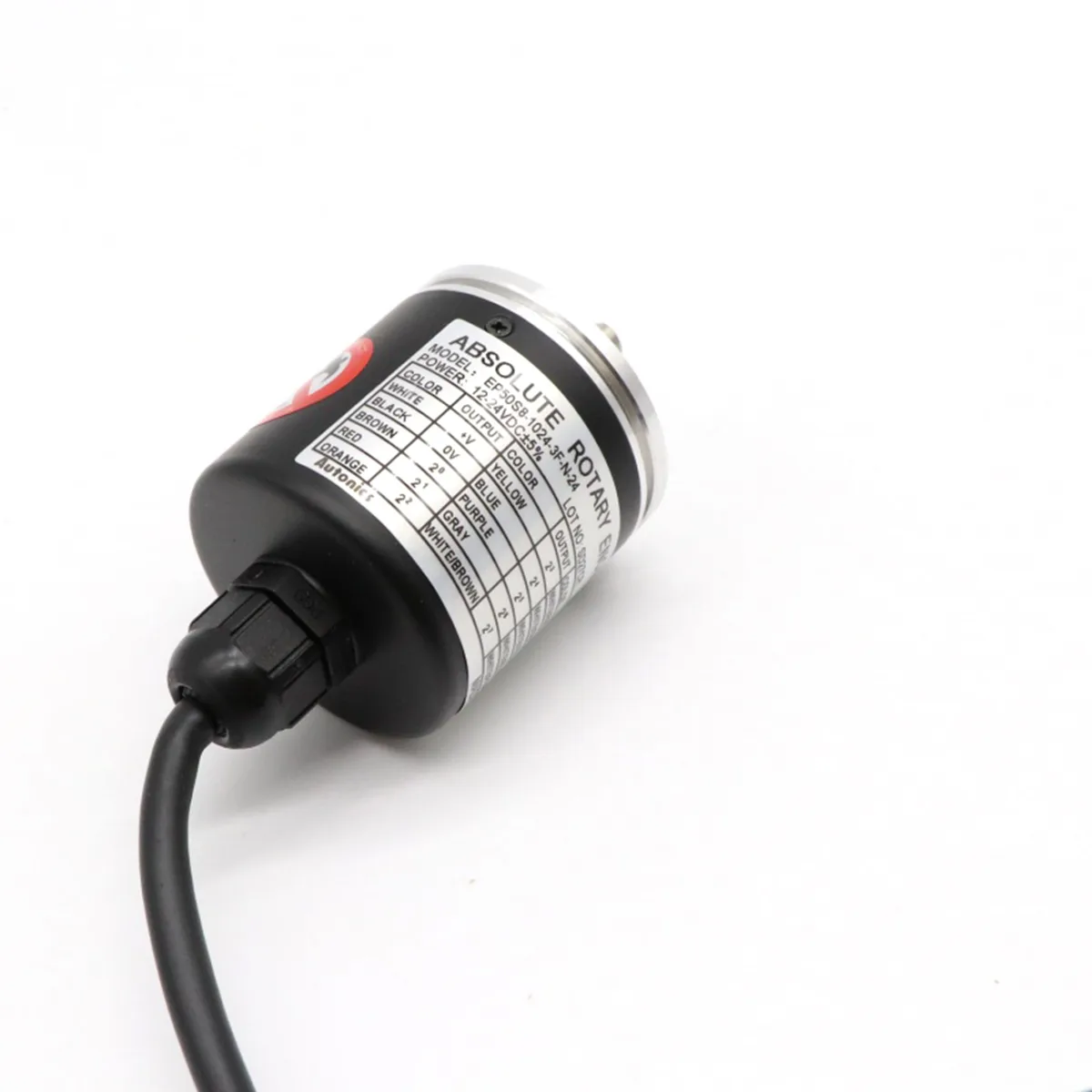

Autonics EP50S8-1024-3F-N-24 rotary encoder 1024 P/R NPN 12-24 VDC IP64
An absolute rotary encoder delivering 1024 pulses per revolution with NPN open-collector output, 12-24 VDC supply and IP64 protection
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- Precise positioning with 1024 pulses per revolution
- Reliable operation from 12 to 24 VDC supply
- Dust and splash resistant IP64 protection rating
- High-speed response up to 35 kHz frequency
- Durable shaft rated for 3000 rpm maximum speed
Absolute rotary encoder for position feedback
The Autonics EP50S8-1024-3F-N-24 is an absolute rotary encoder that delivers 1024 pulses per revolution through an NPN open collector output. It operates on a 12-24 VDC supply with a maximum 5% ripple and is rated IP64 for dust and splash protection. The unit is supplied new in a single pack with an axial cable connection.
Suited for automation and motion control systems
This encoder suits applications requiring absolute position data with a 35 kHz maximum response frequency and up to 3000 rpm rotational speed. It is not intended for buyers who need incremental quadrature signals, higher resolution counts, or a hollow-shaft mounting style. The CW-only rotating direction also limits use in bidirectional feedback loops.
Straightforward axial cable installation
The axial cable type simplifies wiring in tight cabinets, while the Ø8 mm shaft fits standard couplings with a starting torque of max 70 gf·cm (0.0069 N·m). Ensure the supply voltage stays within 12-24 VDC ±5% and that the IP64 rating matches the environment; exceeding the 35 kHz response frequency or 3000 rpm limit can cause signal loss.
Highlights
- Precise positioning with 1024 pulses per revolution
- Reliable operation from 12 to 24 VDC supply
- Dust and splash resistant IP64 protection rating
- High-speed response up to 35 kHz frequency
- Durable shaft rated for 3000 rpm maximum speed
Specifications
| Brand | Autonics |
|---|---|
| Model | EP50S8-1024-3F-N-24 |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
What power supply range does the EP50S8-1024-3F-N-24 need?
The encoder operates on 12-24VDC with a ±5% tolerance and maximum 5% ripple.
Will the Ø8mm shaft fit my existing 8mm coupling?
Yes, the shaft outer diameter is Ø8mm, matching standard 8mm couplings.
How can I confirm the 1024P/R resolution is working after installation?
Rotate the shaft one full turn and count 1024 pulses on the NPN open collector output.
