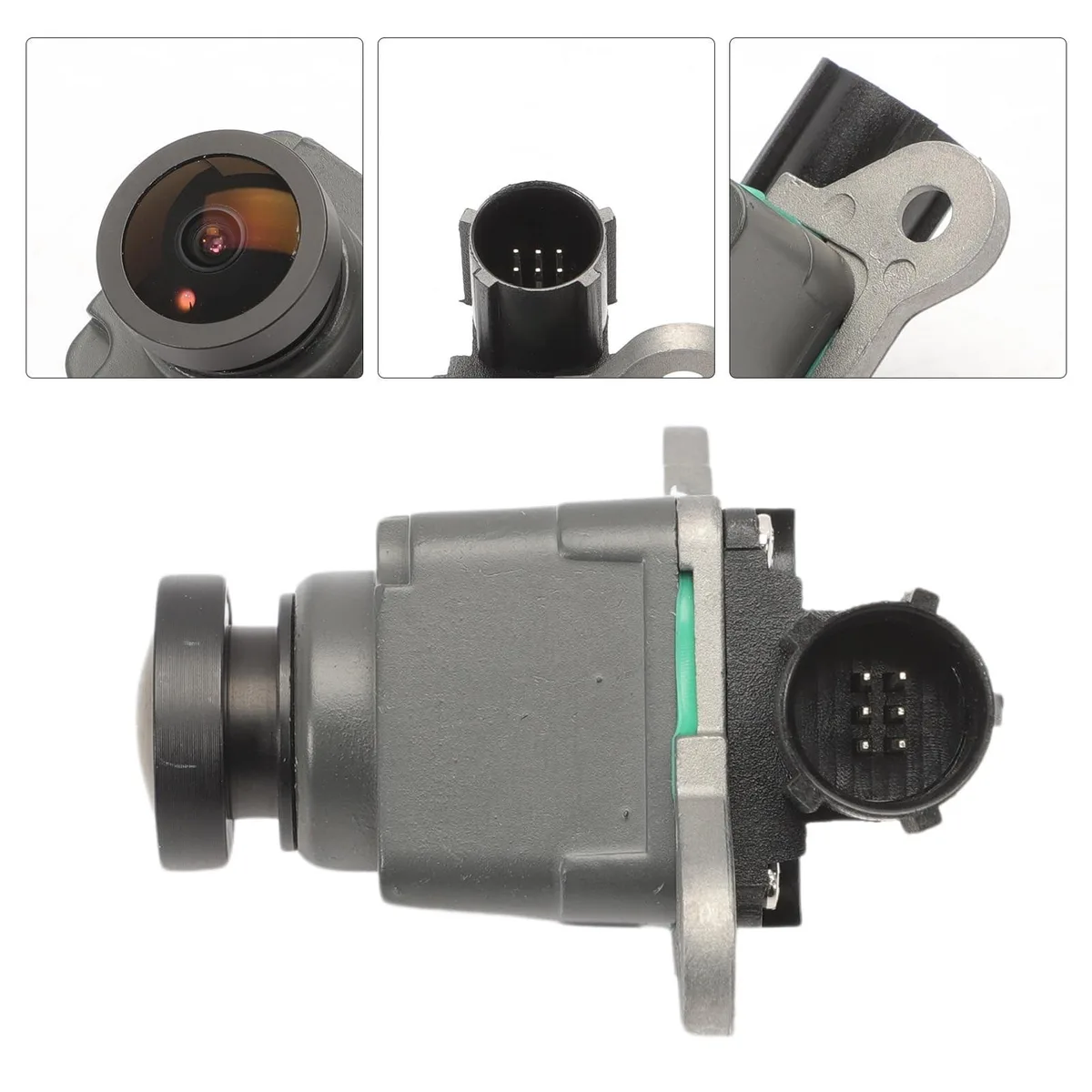

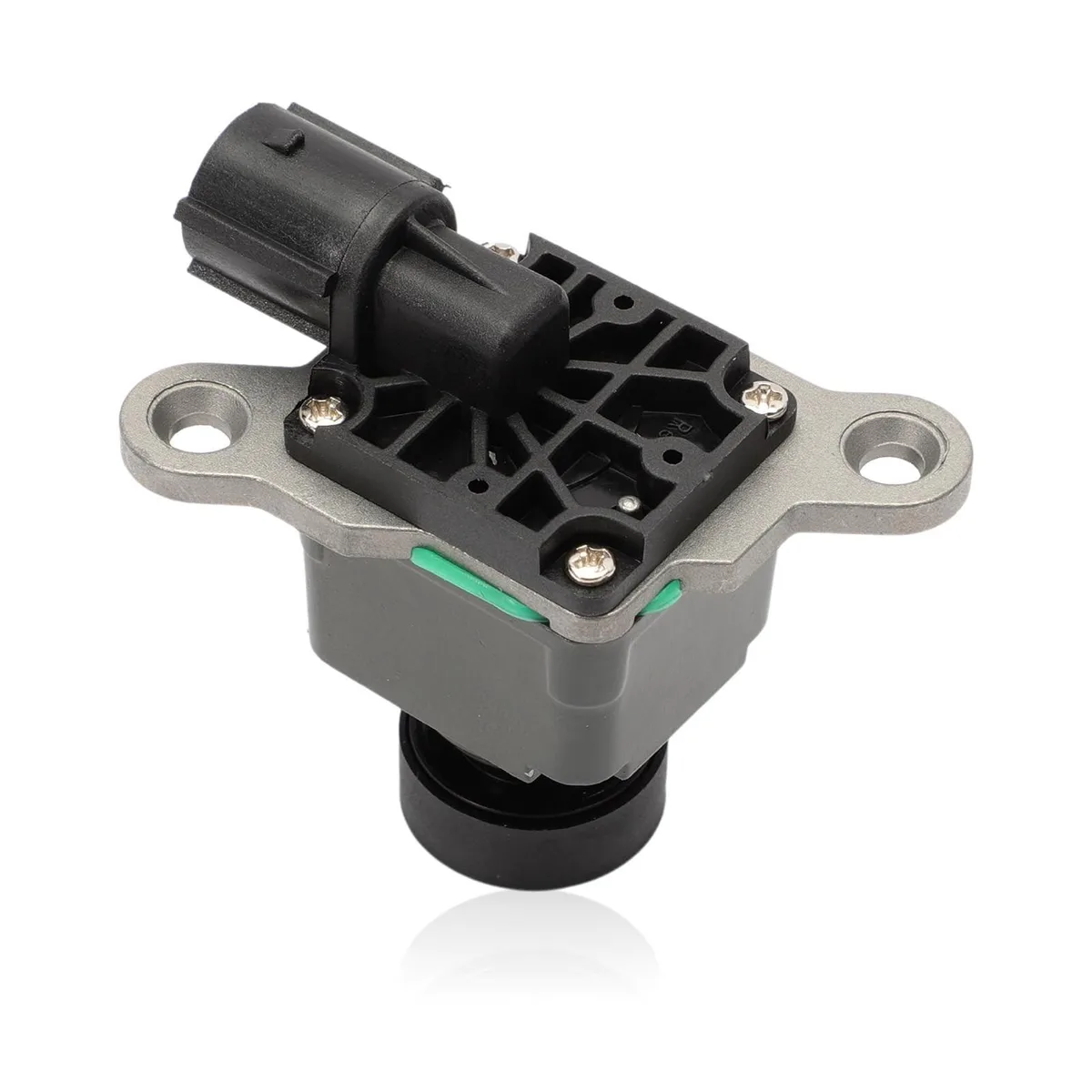

Small black ABS plastic backup camera with wide lens and wiring harness

AUTENS

AUTENS Rear View Backup Camera 2016-2023 Ram 1500 2500 3500

SKU CH-RDXB-VA0YP

Replacement rear-view camera for 2016-2023 Ram 1500 2500 3500 with 170-degree view, 1280x720 resolution and IP67 waterproofing

  • Clear view with 170° ultra-wide angle for safer reversing
  • HD 1280×720 resolution delivers sharp parking guidance
  • IP67 waterproof rating withstands rain and high-pressure washes
  • Operates reliably from –40°C to 80°C in all seasons
  • Direct OE replacement fits 2016–2023 Ram 1500 2500 3500

Compatible Ram 1500 2500 3500 Backup Camera

This replacement rear-view camera fits Ram 1500, 2500 and 3500 models from 2016 to 2023. It matches OE numbers 68274731AD, AE, AA, AB and AC for a direct swap. The unit delivers a 1280 by 720 resolution image through a CVBS video output. An auxiliary wire is included for additional functionality.

Upgrade From Factory Unit With IP67 Rating

The camera replaces the original equipment when the factory lens is cracked, fogged or the sensor has failed. Its IP67 waterproof grade and operating range of -40 to 80 Celsius protect against high-pressure washing and extreme weather. The jump is worth it when the existing feed shows lines, distortion or no signal at all.

CVBS Interface And 170 Degree View Limits

The CVBS analogue output requires a compatible head unit or display with a composite video input. A 170 degree viewing angle covers a wide rear field but introduces edge distortion at the frame corners. The 6v to 12v supply range suits standard vehicle circuits without extra regulation. Buyers needing digital HDMI or IP streaming cannot use this camera.

Highlights

  • Clear view with 170° ultra-wide angle for safer reversing
  • HD 1280×720 resolution delivers sharp parking guidance
  • IP67 waterproof rating withstands rain and high-pressure washes
  • Operates reliably from –40°C to 80°C in all seasons
  • Direct OE replacement fits 2016–2023 Ram 1500 2500 3500

Specifications

No published specifications for this item yet.

Questions about this item

Will this camera fit the existing mounting points on a 2016-2023 Ram 1500 2500 3500 without drilling?

Yes, it is designed to replace the factory unit using OE numbers 68274731AD, 68274731AE, 68274731AA, 68274731AB and 68274731AC, matching the original mounting holes exactly.

Does the 6 V to 12 V operating range connect directly to the factory reverse-light circuit, or is a step-down needed?

The camera operates on 6 V to 12 V DC, so it connects straight to the existing reverse-light supply; no extra converter is required.

What should be checked on the IP67-rated housing after a high-pressure wash to keep the 170-degree view clear?

Inspect the lens for water-spot residue and verify the seal remains intact; the ABS housing withstands pressure washing, but a quick wipe prevents buildup that narrows the 170-degree field.
