AUBEAMTO

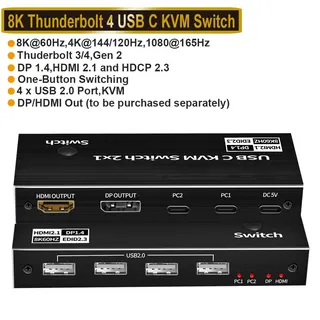

AUBEAMTO OZK5 2x1 USB-C KVM Switch 8K 60Hz
Shares one 8K display, keyboard, mouse and four USB 2.0 devices between two USB-C computers with push-button switching
- Type2x1 USB-C KVM Switch
- Computer ConnectionsHDMI/DP
- Monitor Connections2 Ports
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Monitors SupportedHDMI,DP
- Share one keyboard, mouse and monitor across two USB-C computers
- 8K 60 Hz video via DisplayPort 1.4 or HDMI 2.1 output
- Four USB 2.0 ports let both systems use the same peripherals
- Front-panel button switches sources instantly without software
- Compact 8.66 x 5.31 x 1.69 in unit powered by 5 V DC
Two-computer USB-C KVM for 8K display sharing

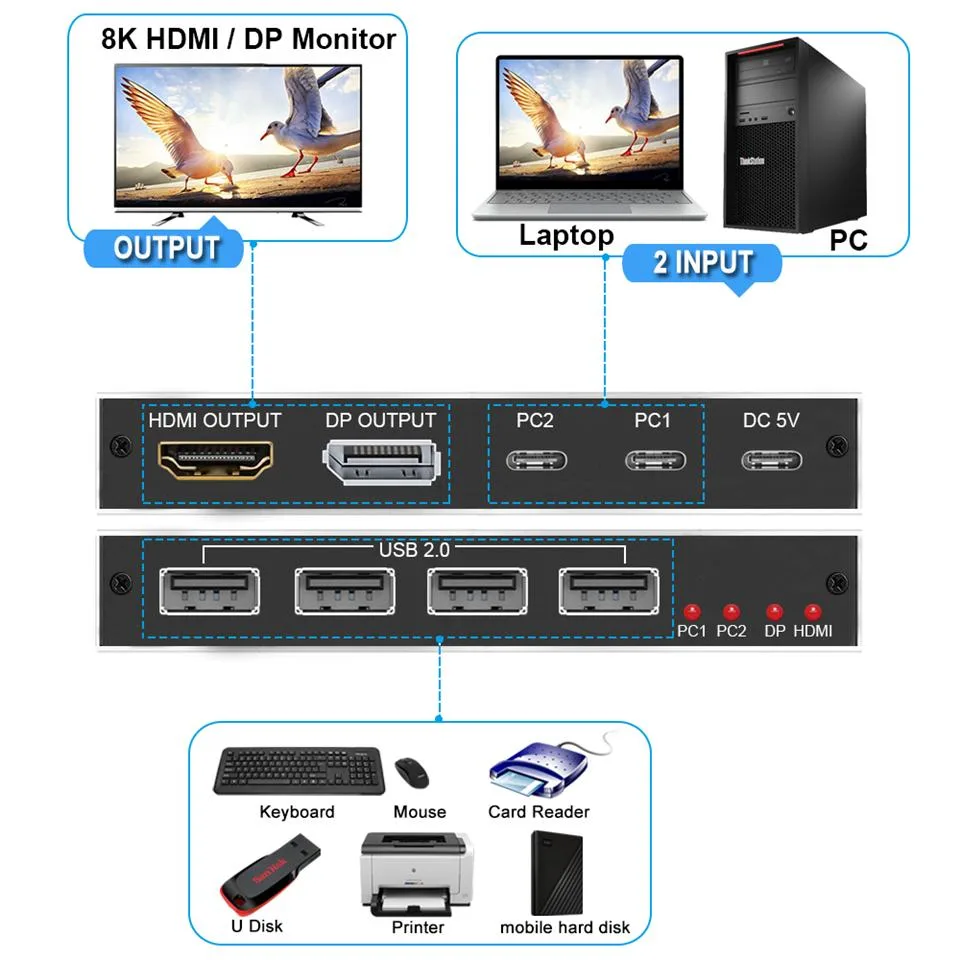

The AUBEAMTO OZK5 is a new 2x1 USB-C KVM switch that lets two laptops or desktops share one DisplayPort 1.4 or HDMI 2.1 monitor, a keyboard, a mouse and two additional USB 2.0 peripherals. Switching is done with a push button on the unit. The box includes a USB-A-to-C power cable and two 1.2 m USB-C Gen 2 cables.
Suited to dual-PC workflows needing one 8K screen
Professionals who move between two USB-C computers — such as a work laptop and a personal machine — can keep a single high-resolution monitor and desktop peripherals without re-plugging. It does not suit setups that require more than two computer inputs, more than one simultaneous video output, or USB 3.x peripheral speeds.
Single DisplayPort 1.4 or HDMI 2.1 video output
The switch presents one video port that operates at either DisplayPort 1.4 or HDMI 2.1, driving resolutions up to 7680x4320 at 60 Hz. This single-output design decides whether the OZK5 fits a given desk: if the workflow demands dual-monitor extended desktop, a different KVM topology is required.
Highlights
- Share one keyboard, mouse and monitor across two USB-C computers
- 8K 60 Hz video via DisplayPort 1.4 or HDMI 2.1 output
- Four USB 2.0 ports let both systems use the same peripherals
- Front-panel button switches sources instantly without software
- Compact 8.66 x 5.31 x 1.69 in unit powered by 5 V DC
Specifications
| Brand | AUBEAMTO |
|---|---|
| Series | OZK5 |
| Type | 2x1 USB-C KVM Switch |
| Computer Connections | HDMI/DP |
| Monitor Connections | 2 Ports |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| Monitors Supported | HDMI,DP |
| LED Indicators | Yes |
| Power Features | DC 5V |
| SplitterOnly | 2x1 USB-C KVM Switch |
| Application | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used |
| Features | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 4 x USB2.0 Output Port,two Computers share one set,you can connect 4xUSB2.0 Output to |
| Dimensions | 8.66 x 5.31 x 1.69 inches |
| Weight | 15.8 ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
Does each computer need its own USB-C cable to connect to the switch?
Yes, two 1.2 meter USB Gen 2 Type-C to Type-C cables are included for the PC inputs.
Can I keep using a DisplayPort 1.4 monitor while the switch also offers HDMI 2.1?
The unit provides one DisplayPort 1.4 and one HDMI 2.1 output; you choose the cable that matches your monitor.
How do I confirm the switch is passing an 8K 60 Hz signal after I press the button?
The LED indicators show the active port, and the monitor should report 7680*4320 at 60 Hz in its on-screen menu.
