AUBEAMTO OZK1 2-Port 4K@60Hz HDMI KVM Switch
A 2-port HDMI KVM switch that shares one 4K@60Hz display, keyboard, mouse and three USB 2.0 peripherals between two computers with push-button switching
- TypeHDMI, Display
- PC Connectors2
- Computer Connections3 Ports
- Monitor Connections2 Ports
- Video Resolution3840 x 2160
- PC SelectionManual Switch
- Control two computers with one keyboard, mouse and monitor

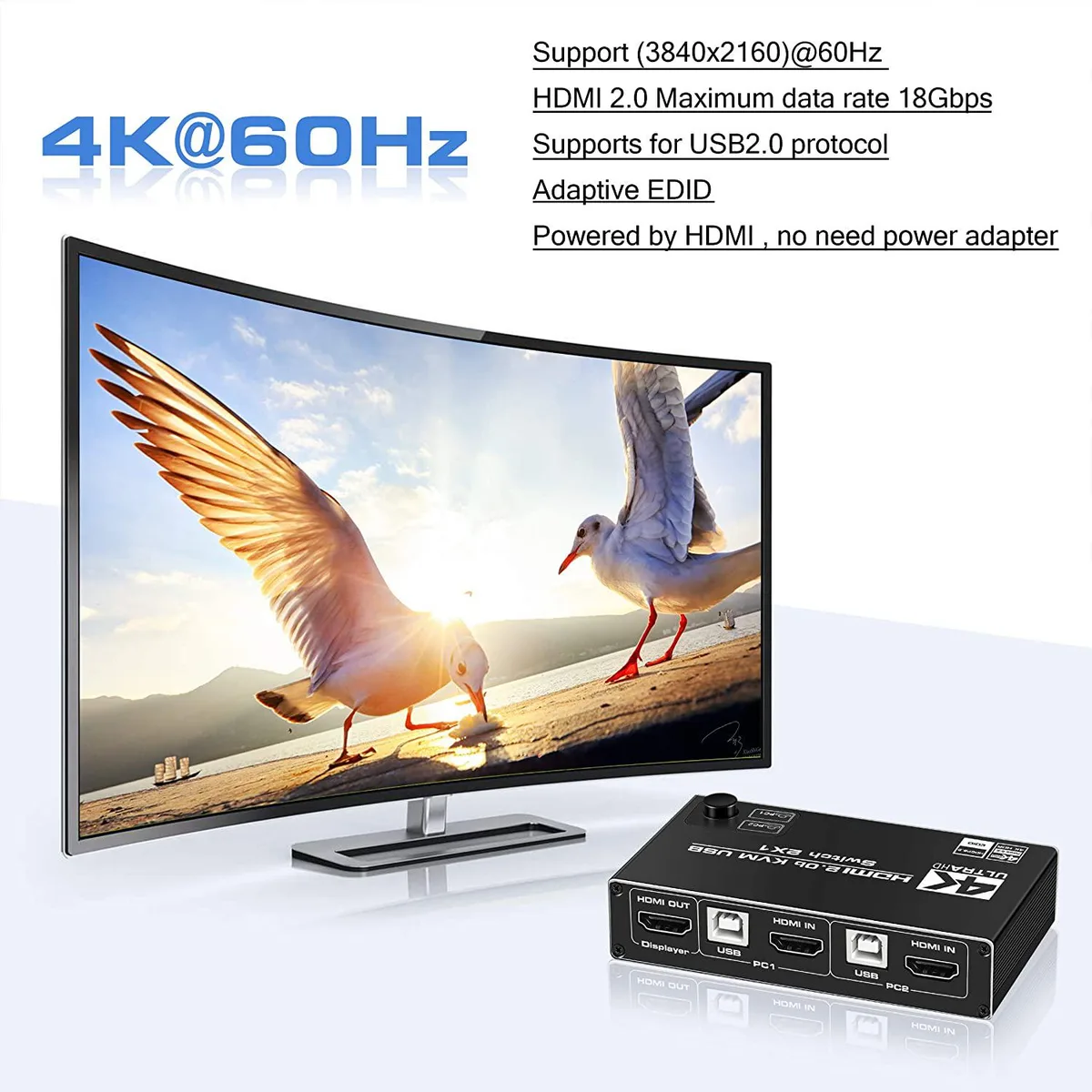

- 4K at 60 Hz via HDMI 2.0 with 18 Gbps bandwidth
- Plug-and-play switching with front-panel button, no driver needed

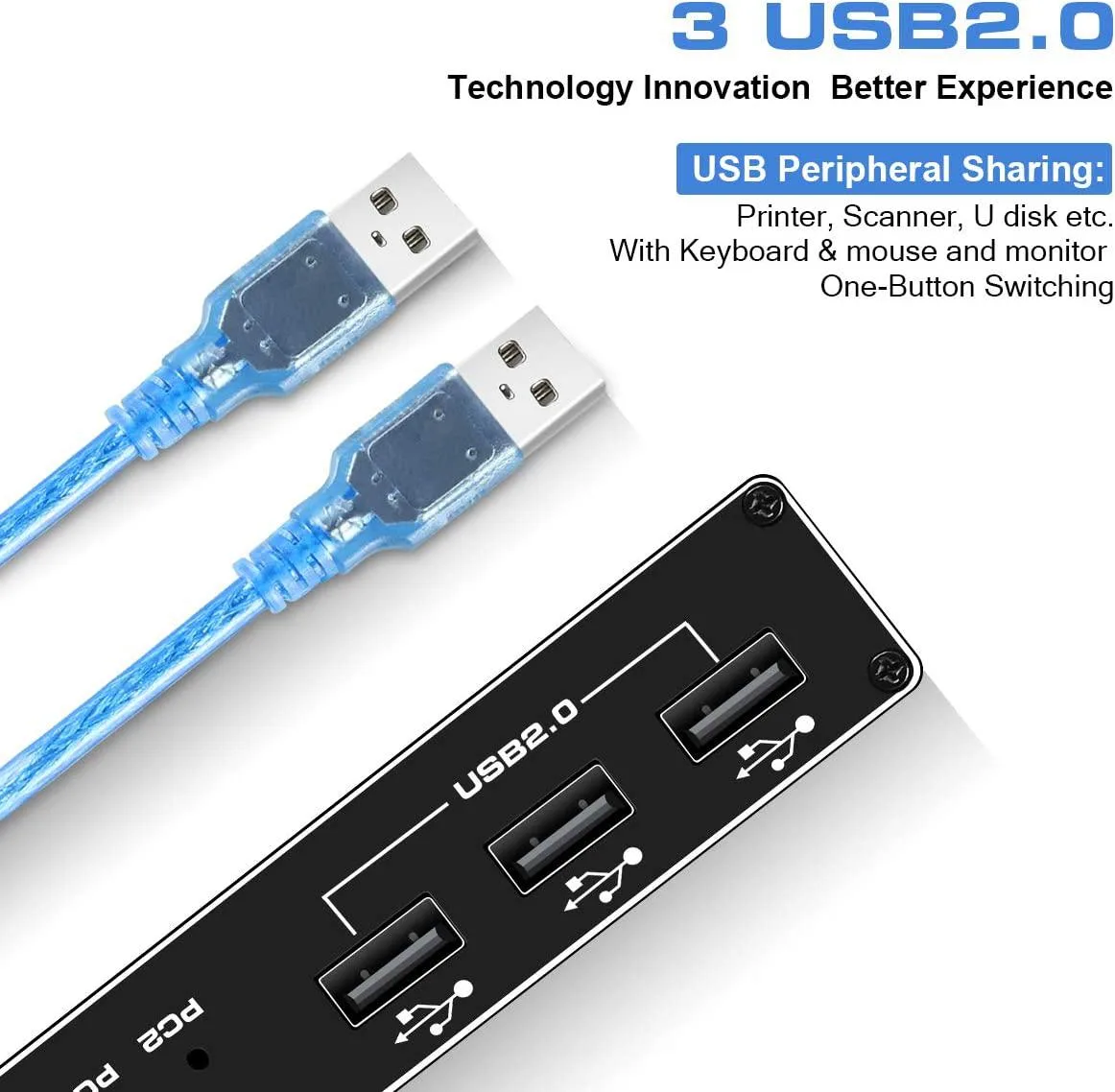

- Three USB 2.0 ports share printer, camera or storage
- Powered through HDMI cables, no separate adapter required
Two-Port 4K KVM Switch

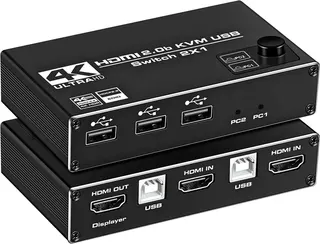

The AUBEAMTO OZK1 lets you operate two computers from a single monitor, keyboard and mouse. It accepts two HDMI inputs and one display output at up to 3840 x 2160 resolution and 60 Hz refresh rate. Three USB 2.0 ports share peripherals such as wireless keyboards, mice, storage drives, printers or cameras between the connected systems.
Desktop Users Needing Simple Sharing
This switch suits home offices, meeting rooms or gaming setups where two PCs or consoles share one screen and input devices. It does not meet the needs of users who require more than two computer ports, higher than 60 Hz refresh rates, or USB 3.0 data speeds for fast external storage.
Button Switching With HDMI Power
Installation is plug-and-play: connect the two supplied USB cables and the HDMI leads, then press the front button to change sources. The unit draws power from the HDMI links so no separate adapter is needed. A common issue is insufficient HDMI bus power on some laptops, which can cause intermittent switching or peripheral drop-outs.
Highlights
- Control two computers with one keyboard, mouse and monitor
- 4K at 60 Hz via HDMI 2.0 with 18 Gbps bandwidth
- Plug-and-play switching with front-panel button, no driver needed
- Three USB 2.0 ports share printer, camera or storage
- Powered through HDMI cables, no separate adapter required
Specifications
| Brand | AUBEAMTO |
|---|---|
| Series | OZK1 |
| Model | OZK1 |
| Part Number | OZK1 |
| Type | HDMI, Display |
| PC Connectors | 2 |
| Computer Connections | 3 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Manual Switch |
| Bandwidth | 400 MHz |
| LED Indicators | Yes |
| Temperature | 0ºC to 40ºC(32ºF to 104ºF) |
| Humidity | 0% to 90%,Non-Condensing |
| Power Features | DC 5V power supply |
| USB Features | 3 X USB2.0 |
| SplitterOnly | Video Switch |
| Application | Compatible with PC, Laptop, Apple TV, PS3/PS4/PS5, Xbox, Sony Bluray player, projectors, audio/video receivers and most of the HDMI capable devices. High-speed transmission without lag, no loss of picture and sound quality. |
| Features | -Support 4K@60Hz HDCP2.2 HD picture, Adaptive Screen Resolution -Support high current hard disk devices. -High Integrate digital chip combination,plug and play. -Easy to Switch by pressing the button on the KVM switch Panel. -Powered By HDMI, More Easy to Wake up the devices. - Product Input: HDMI*2+USB 2.0 *3 -Product Output : HDMI*1 |
| Dimensions | 6 x 5 x 3.3 inches |
| Weight | 12.63 Ounces |
| Package Contents | 1 x NEWCARE 2 in 1 out HDMI KVM SWITCH 2 x USB Cable 1 x User manual |
Questions about this item
What cables do I need to connect my two computers to the OZK1?
Two HDMI cables and two USB cables are required; the package includes two USB cables, so you only need to supply the HDMI cables.
Will my 1080P monitor work with the OZK1 alongside a 4K@60Hz display?
Yes, the switch is downward compatible with 1080P and 4K@30Hz, so a 1080P monitor will display correctly.
How can I confirm the OZK1 is passing a 4K@60Hz signal after setup?
The LED indicator shows the active port, and your monitor's on-screen menu should report 3840 x 2160 at 60 Hz with HDCP 2.2 active.
