AUBEAMTO
AUBEAMTO 2x2 HDMI DP KVM Switch 8K 60Hz 4K 144Hz
Connects two computers to dual HDMI and DisplayPort monitors at up to 8K 60Hz or 4K 144Hz with USB 3.0 peripheral sharing
- TypeHDMI+Displayport KVM Switch 2 Monitors 2 Computer
- Computer ConnectionsHDMI+DisplayPort, Dual Moniter
- Monitor Connections2 Ports
- Video Resolution7680*4320
- PC SelectionManual Switch, Remote Control
- Monitors SupportedHDMI,DP

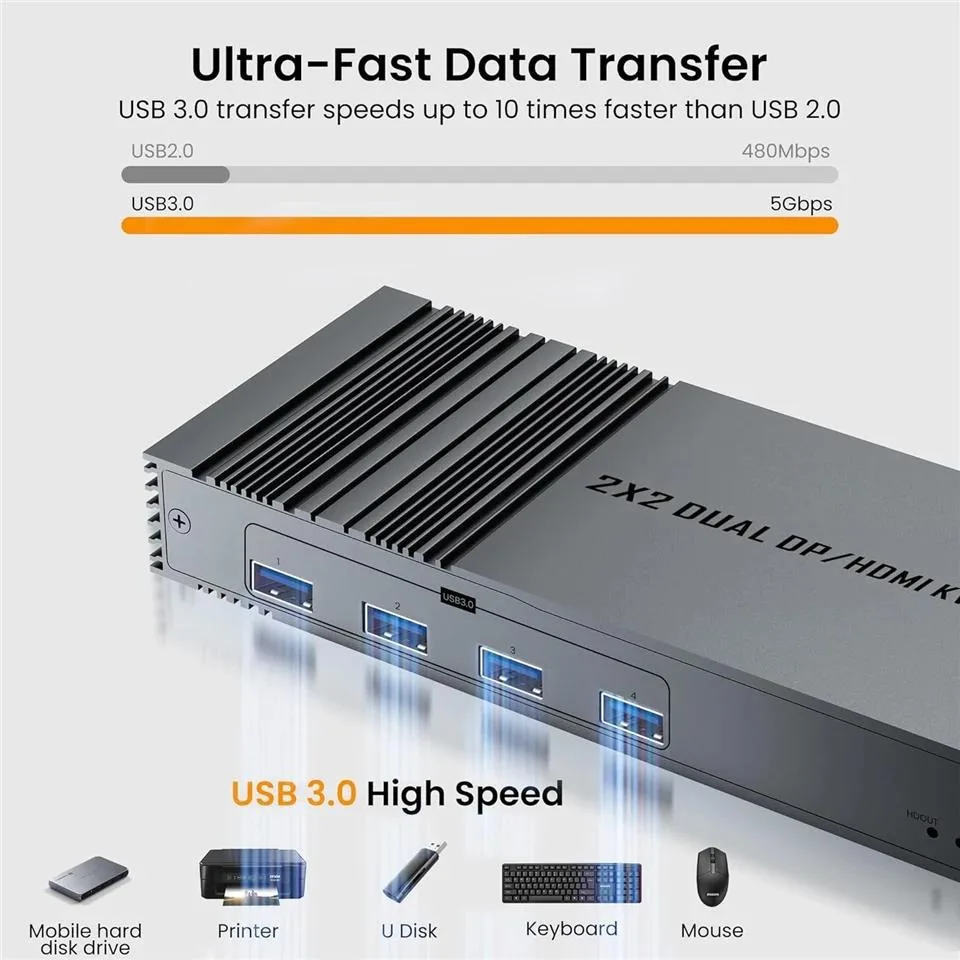

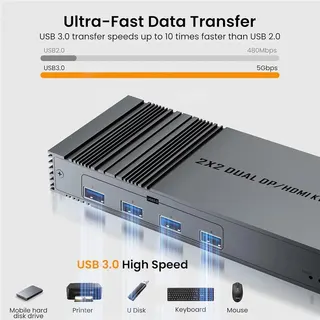

- Share one keyboard and mouse across two computers with 4 USB 3.0 ports
- Switch between systems using front-panel button or included IR remote
- Drive dual monitors at up to 8K 60Hz or 4K 144Hz via HDMI 2.1 and DP 1.4
- Aluminium alloy housing resists rust, corrosion and interference
- No signal conversion — HDMI inputs map to HDMI outputs, DP inputs to DP outputs
Dual-computer KVM for extended dual-monitor setups
This AUBEAMTO 2x2 KVM switch lets two computers share one HDMI monitor, one DisplayPort monitor, and four USB 3.0 peripherals. It supports extended and mirror display modes so you can multitask across both screens from either system. The aluminium alloy shell provides shielding and passive cooling.
Plug-and-play with manual and IR switching

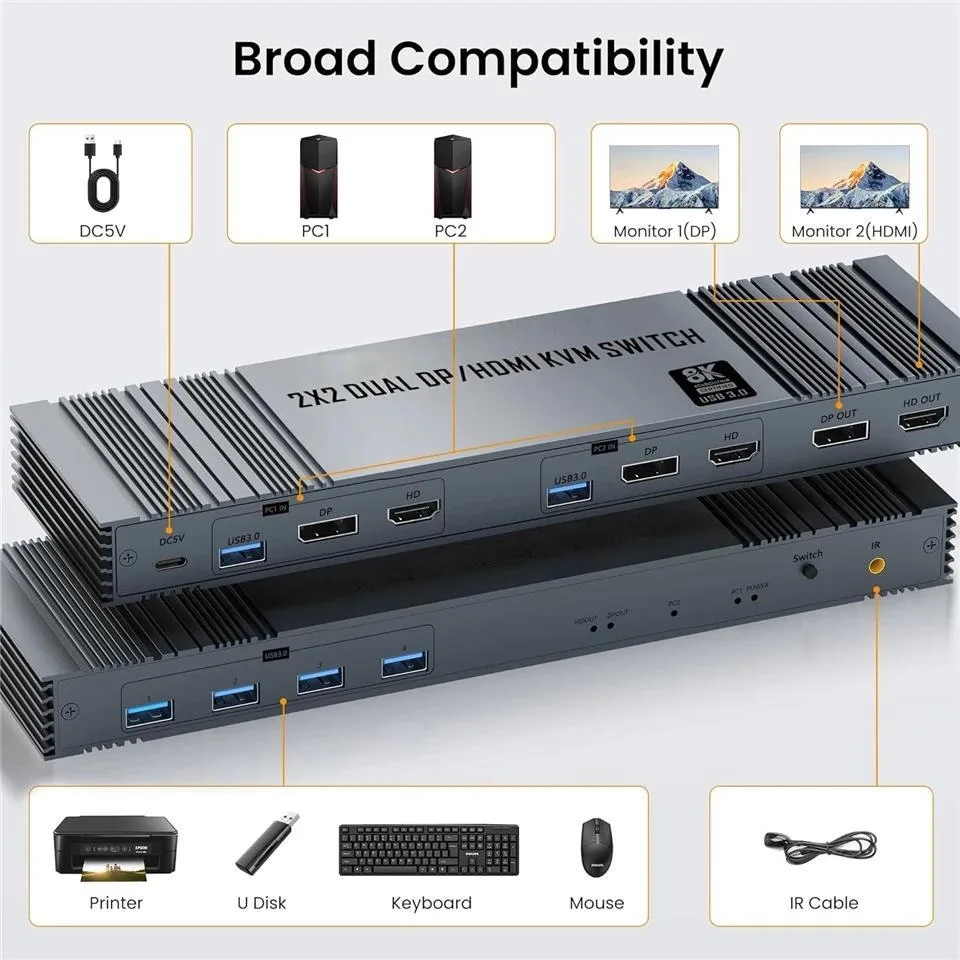

Connect each computer via one HDMI 2.1 and one DisplayPort 1.4 cable, then attach the monitors to the single HDMI 2.1 and DisplayPort 1.4 outputs. Four USB 3.0 ports on the switch handle keyboard, mouse, printer or flash drives. Switch inputs using the top-panel button or the included IR remote. The unit requires the supplied 12 V DC adapter; a common issue is forgetting to power it before the first switch.
Ideal for dual-screen workflows.
Suits users who need two computers driving two distinct monitors at up to 8K 60 Hz or 4K 144 Hz with full USB 3.0 peripheral sharing. Buyers whose laptops only offer a single video output cannot use the dual-monitor extended mode because the switch does not convert signals — HDMI inputs map only to the HDMI output and DisplayPort inputs only to the DisplayPort output.
Highlights
- Share one keyboard and mouse across two computers with 4 USB 3.0 ports
- Switch between systems using front-panel button or included IR remote
- Drive dual monitors at up to 8K 60Hz or 4K 144Hz via HDMI 2.1 and DP 1.4
- Aluminium alloy housing resists rust, corrosion and interference
- No signal conversion — HDMI inputs map to HDMI outputs, DP inputs to DP outputs
Specifications
| Brand | AUBEAMTO |
|---|---|
| Series | OZK10 |
| Type | HDMI+Displayport KVM Switch 2 Monitors 2 Computer |
| Computer Connections | HDMI+DisplayPort, Dual Moniter |
| Monitor Connections | 2 Ports |
| Video Resolution | 7680*4320 |
| PC Selection | Manual Switch, Remote Control |
| Monitors Supported | HDMI,DP |
| LED Indicators | Yes |
| Power Features | 12V DC |
| USB Features | with USB support |
| SplitterOnly | Video Switch |
| Features | 2 In 2 Out 4K 120Hz USB 3.0 HDMI Displayport KVM Switch Box dual monitor for 2 PC Sharing Keyboard Mouse Printer Plug Play Video 2 Display USB Switch Splitter - Product Type: 8K HDMI DP USB 3.0 KVM Switch (2 in 2 out) - Input Port: HDMI 2.1 x 2,DP 1.4 x 2,USB 3.0 data x2, USB 3.0 x 4 - Output Port: 1 x HDMI 2.1,1 x DP 1.4 - Dimensions: 260x78x35mm - Material: Aluminum Alloy shellanti-rust, anti-corrosion, anti-interference, fast transmission, surtace oxidation Features - Support HDMI 2.1 HDCP 2.3 / Displayport 1.4 - Resolution: Support 1080P/1080@144/165/240Hz, 2K@120/144Hz, 4K@60/12 |
| Dimensions | 8.66 x 5.31 x 1.69 inches |
| Weight | 15.8 ounces |
| Package Contents | 1 x HDMI DP KVM USB Switch 2x2 2 x USB 3.0 data cable 1 x DC power adapter 1 x IR Remote Control 1 x User Manual |
Questions about this item
How can I confirm the KVM is passing 8K 60 Hz to both monitors after setup?
Connect each computer via HDMI 2.1 and DisplayPort 1.4, select a source with the manual button or IR remote, then verify each monitor’s on-screen menu reports 7680 × 4320 at 60 Hz.
Which cables and accessories are included versus what I must buy separately?
The box contains the switch, two USB 3.0 data cables, a 12 V DC power adapter, an IR remote, and a manual; you must supply two HDMI 2.1 cables and two DisplayPort 1.4 cables.
When should I choose the 8K 60 Hz mode over the 4K 144 Hz mode?
Use 8K 60 Hz when your source, monitor, and cables all support 7680 × 4320 at 60 Hz; otherwise select 4K at 144 Hz for higher refresh at lower resolution.
